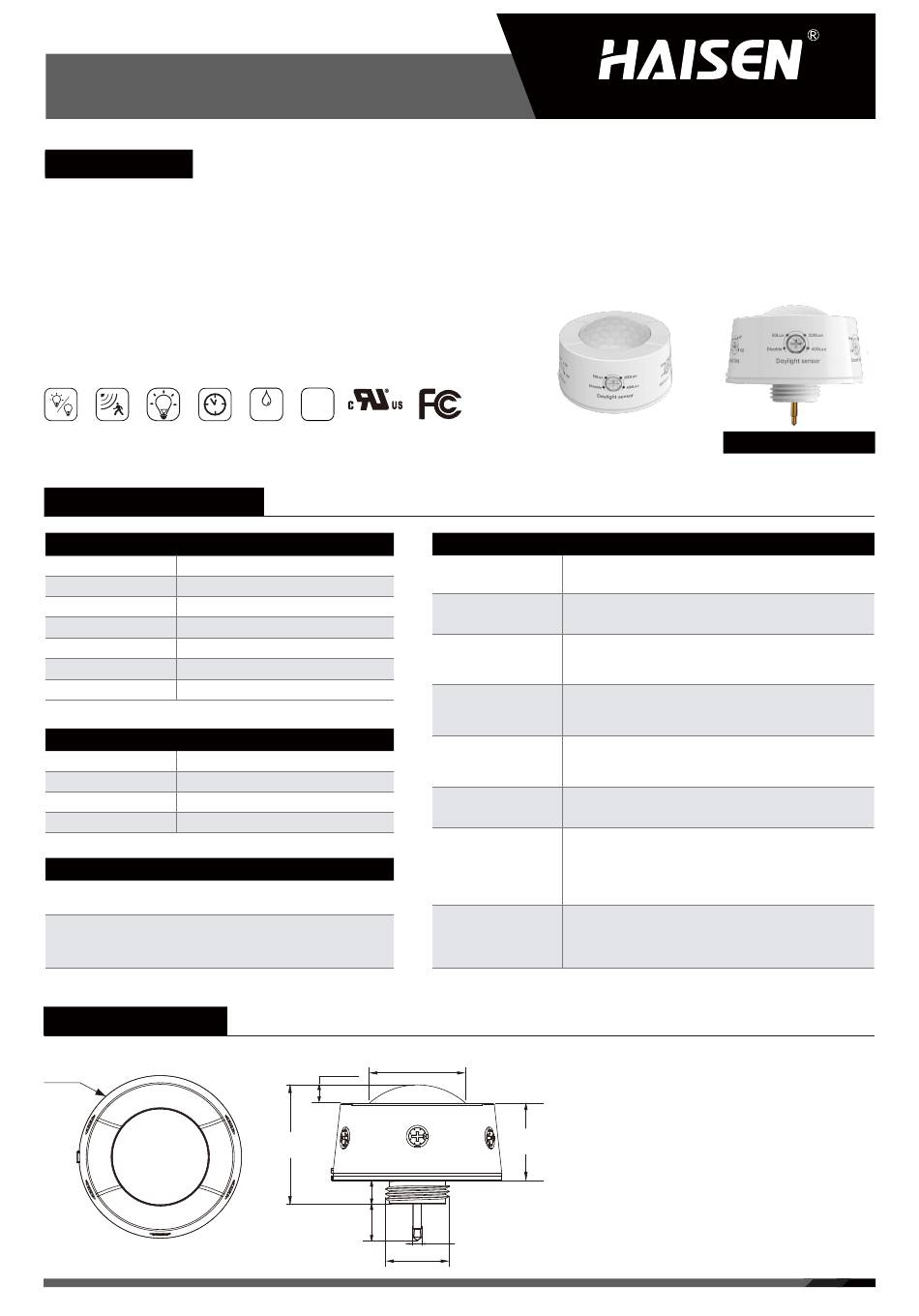

HAISEN HD09VR-PH5 Instructions

PIR HIGHBAY SENSOR
HD09VR-PH5-1
FEATURES
• Newest design with 5 Manual Switches,easy programming.
• 12VDC Input, 0-10V Dimming, with Daylight Harvesting and
Photocell Function.
• Elegant and classic round design, with rotators for easy
programming.
• Rotator & Remote control.
On/Off Detection Stand-by Hold Time
Control Area dimming level
TECHNICAL DATA
PIR Information
Infrared Wavelength 5-14um
Output Signal Peak ≥3500mV
3200V/W
PIR Sensitivity
Installation Height ≤12m/39.37ft
Detection Distance 3-7m/9.84-22.96ft
<120° Fersnel Lens
Detection Angle
Working Temp -20℃~+60℃
Electrical Specifications
Input Range 12-24VDC
＜15mA
Stand-by Power
Warm-up Period 50s
Output control Should be ON/OFF 0-10V DIM
Match Emergency Drivers
*Work compatibly with EM driver, please make sure it follows below
conditions:
1. Switching capacity <1mA
2. LED driver' s OFF voltage at 1mA is 0.25-0.3V
3. Single fixture connected.
DIMENSIONS
Ø2.13"
54mm
www.haisensz.com
5
IP65
Years
E529048
IP Rating
Warranty
Ø1.21 ＂
0.23＂
（30.7mm）
(5.8mm)
1.50＂
（38.1mm）
0.30＂ (7.5mm）
Ø0.54＂
(13.7mm)
STAY SMART STAY SIMPLE
Sensor Parameter
Remote Control #HD06R( purchase separately)
Control Device
Manual Switches
Remote Control : 25% / 50% / 75% / 100%
Detection Area
Rotating switch： 25% / 50% / 75% / 100%
Remote Control： 5s / 30s / 1min / 3min / 5min / 10min /
Holdtime
20min / 30min
Rotating switch： 5s/1min/ 5min/10min
Remote Control： 2lux / 10lux / 30lux / 50lux / 80lux / 120lux /
200Lux / 250Lux / 300lux / 350Lux / 400Lux / Disable
Daylight Threshold
Rotating switch： 50Lux / 200Lux / 400Lux / Disable
Remote Control： 0s / 10s / 30s / 1min / 5min / 10min /
30min / 60min / +∞
Standby Period
Rotating switch： 0s / 10min / 30min / +∞
Remote Control： 10%/ 20%/ 30%/ 50%
Standby Dimming Level
Rotating switch： 10%/ 20%/ 30%/ 50%
1. Stay in SENSOR MODE
2. STANDBY PERIOD as 0S
Automatically Dimming
3. DAYLIGHT as any of 50Lux / 80Lux / 120Lux / 200Lux /
(Daylight Harvesting)
250Lux / 300Lux / 350Lux / 400Lux
4. Press DAYLIGHT HARVESTING button to ON
1. STANDBY DIM LEVEL as any of 10% 20% 30%
2. STANDBY PERIOD as infinite
Automatically ON/OFF
3. DAYLIGHT as any of 30Lux / 50Lux / 80Lux / 120Lux /
(Photocell)
200Lux / 250Lux / 300Lux / 350Lux / 400Lux
0.98＂
(24.8mm)
Ø0.13＂(3.5mm)
Ø0.80＂(20.2mm)
HD09VR-PH5-1
Page 1 of 5
