RRC -SMB-UBC-DIS Manual

Manual
RRC-SMB-UBC-DIS
.en
The smart battery charger can be used to set RRC SMBUS batteries (Smart Batteries) with
form factors RRC2020, 2024, 2040 or RRC smart batteries with a similar footprint e.g. 202x
Introduction:
range, 204x range. 205x range, DR36 etc. into the shipping mode within about 30% rate of
charge.
Only batteries that comply with the Data Specification 1.0 or 1.1 can be charged with this
Caution:
battery charger. Other rechargeable batteries or conventional batteries may not be used.
Making Connections
1. Connect the cable from the mains adapter to the battery charger.
2. Connect the power cable to the mains adapter and plug it into the mains socket.
3. The LED is going out after the selftest of the battery charger. The battery charger is ready for use.
4. If the red control lamp remains on and no battery is in the charger, the battery charger is defective.
Set Batteries into Shipping Mode
1. Connect the battery charger as described above.
2. Insert a smart battery into the battery charger.
3. The battery charger processes a battery detection and initialisation.
4. Leave the battery until the control led switches to green.
5. Then the battery is in shipping mode. Remove the battery.

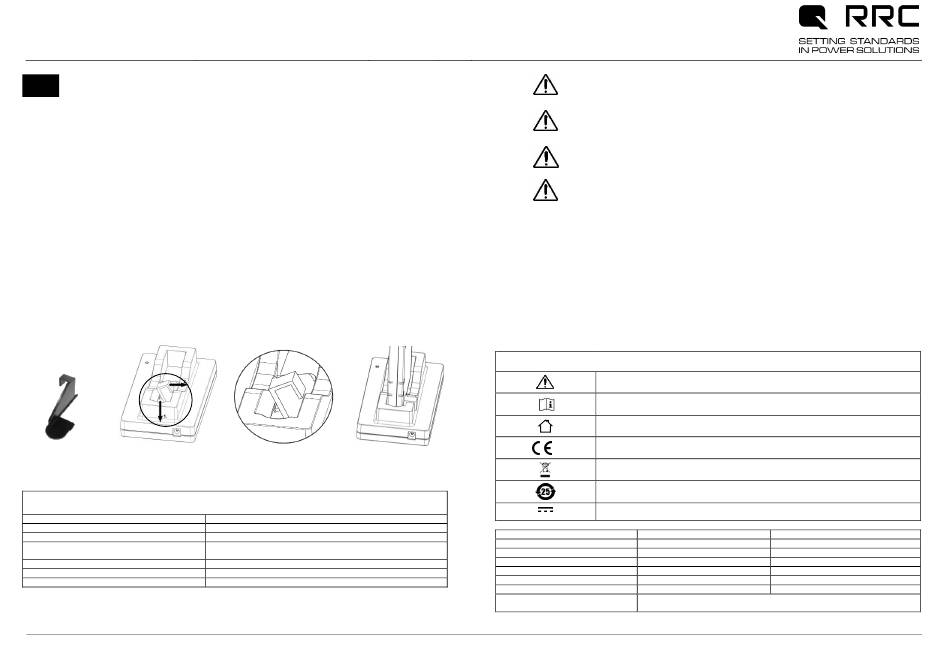

Usage of spacer
So that the battery RRC2020 or one with a similar form factor can be used, the spacer shown below (Figure 1) must
be used. The spacer is inserted like in figure 2 & 3 until it snaps. After that, the battery can be inserted for charging
(Figure 4). For the use of other battery types the spacer must be removed again.
Figure 1 Figure 2
LED Indications
One time Red/Orange/Green
Green / Red blinking
Orange
Orange blinking
Greeen
Red
Red blinking
211550-01_A_RRC-SMB-UBC-DIS_Artwork-Manual
Figure 3 Figure 4
Self test: Charger is ready for use.
Charger identifies inserted battery.
The battery ASOC is below 25%. The battery is being charged.
The battery ASOC is greater equal 25%. The battery is being
discharged.
The battery is in ship mode.
The battery was not set in the ship mode.
The temperature of the battery is too low or too high.
E
NGLISH 
FCC Advice,
valid in USA
Declaration of
Conformity:
Symbols
Technical Specifications
Input Voltage
Charging and Output Voltages
Power
Dimensions (L x B x H)
Operating/Storage Temperature
Weight
Safety Standards /
EMC Standards
* valid only for power supply
This battery charger may not be located in the vicinity of a patient.
In accordance with EN60601-1-1, the horizontal distance must be at least 1.5 meters.
Do not insert a fully charged battery into the charger repeatedly. Due to the high initial
charge, the battery could be overcharged which could lead to damage to the battery and
to the battery charger
Use the battery charger only in dry indoor environments! Wet and moisture covered
products should not be used!
This product has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications of the device are not allowed.
The battery charger complies to the current regulations of the EU guidelines.
Caution / Warning
Instructions for use
Use only in enclosed spaces
Sign of conformity to the applicable EC Directives
The product should be disposed of according to local guidelines
RoHs (China)
DC voltage
Battery Charger Power Supply
19 - 26VDC / 3.4A max. 100-240VAC / 50 - 60Hz
0 - 18VDC / 0 - 4.8A 19VDC ± 5% / 3.4A
62W 65W
151 x 90 x 43mm 95 x 51 x 25.4 mm
0°C to 40°C / -10°C to 70°C 0°C to 40°C / -10°C to 70°C
198g 270g
IEC/EN60950-1 UL60950-1* / EN55011 / EN55032 / EN55024* / FCC15 class B
/ IEC/EN61000-4-2,-3,-4,-5,-6,-8,-11* / EN61000-3-2,-3-3*
which
