RRC PMC10A Instruction Manual

10 Bay Battery Charger PMC10A

Instruction Manual

This user's guide contains information on using the 10 Bay Battery Charger PMC10A. Please read this guide
before using the battery charger.
Technical Data
Power Requirements
Operating Temperature
Non-Operating Temperature
Operating Humidity
Non-Operating Humidity
Dimensions (without battery adapter):
Weight (without battery adapter):
Fuse Information:
CAUTION: For continued protection against risk of fire, replace only with the same type and rating of fuse.
Use
Place the charger on a stable surface. Plug the power cord into the power connector on the back of the
charging station. Then plug the other end of the power cord into an AC outlet. Press the switch on the ON
position.
The charge process will start after inserting a battery pack into the proper module, the charge indication will
be displayed (see following process matrix).

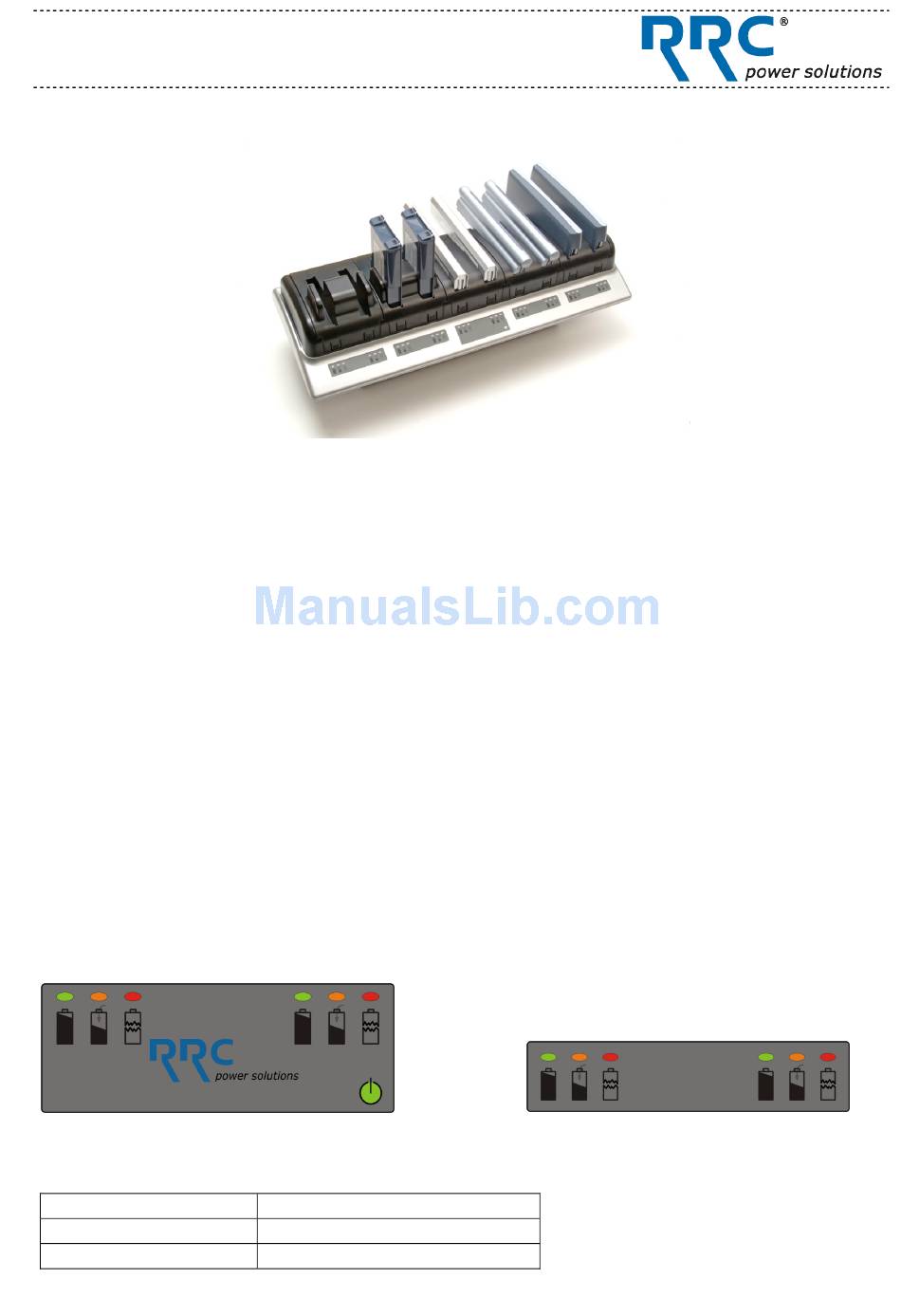

On the front of the charger there are five LED front foils (one master front foil and 4 slave front foils):
Master Front Foil
N°2 N°3 N°4
Device Status identification
LED indicator
None
GREEN on (N°1)
100-120V / 60Hz ~ 4.3A : 220-240V / 50Hz~ 1.8A
41°F to 95°F (5°C to +35°C)
14°F to 140°F (-10°C to +60°C)
10% to 90%
5% to 95%
(LxWxH) 8.9inch x 21.9inch x 6.7inch
11 pounds
F10/F11 = Hollyland Co., 50T series T5A, 250V
N°1
Charging condition
Off mode
AC power input/ power on
Slave Front foil
N°2 N°3 N°4 N°2 N°3 N°4
