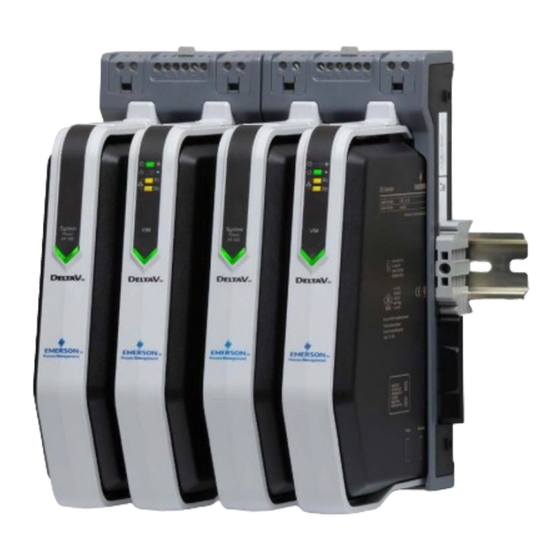

Programmable Serial Interface Card
Allen-Bradley and DeltaV are registered trademarks and DeltaV is a trademark of Emerson
© Emerson 1998, 1999, 2000, 2001. All rights reserved.
Printed in the U.S.A.
While this information is presented in good faith and believed to be accurate, MYNAH Technologies does not
guarantee satisfactory results from reliance upon such information. Nothing contained herein is to be construed as
a warranty or guarantee, express or implied, regarding the performance, merchantability, fitness or any other
matter with respect to the products, nor as a recommendation to use any product or process in conflict with any
patent. MYNAH Technologies reserves the right, without notice, to alter or improve the designs or specifications of
the products described herein.
MYNAH Technologies
504 Trade Center Blvd.
Allen-Bradley Driver for DeltaV
USER MANUAL
May 2003
Rev. P1.7
Chesterfield, MO 63005
www.mynah.com
1
Telephone 636 681-1555
Fax 636 681-1660
Advertisement
Table of Contents
Related Manuals for Mynah Mynah 1770-KF2
Summary of Contents for Mynah Mynah 1770-KF2
-
Page 1: User Manual
Allen-Bradley Driver for DeltaV Programmable Serial Interface Card Allen-Bradley and DeltaV are registered trademarks and DeltaV is a trademark of Emerson © Emerson 1998, 1999, 2000, 2001. All rights reserved. Printed in the U.S.A. While this information is presented in good faith and believed to be accurate, MYNAH Technologies does not guarantee satisfactory results from reliance upon such information. - Page 2 INTRODUCTION Scope This document is the User Manual for the Allen Bradley serial communication driver firmware for the Emerson DeltaV Control System; it provides information required to install, configure, and maintain the Allen-Bradley driver firmware on the DeltaV Programmable Serial Interface Card (PSIC). The reader should be familiar with the DeltaV controller system and the Allen-Bradley PLC-5 Family of Programmable Logic Controllers, the Allen- Bradley SLC-500 Family of Serial Logic and/or Controllers Allen-Bradley PLC-3 Family of Programmable Logic Controllers.
-
Page 3: Document Format
Document Format This document is organized as follows: Introduction Theory of Operation Downloading Firmware PSIC Configuration Operational Check DeltaV-PLC/SLC Electrical Interface System Specifications The following table lists the minimum hardware requirements for the Allen-Bradley Driver: MYNAH Technologies 504 Trade Center Blvd. Powerful Solutions for Digital Plants Describes the scope and purpose of this document Provides a general functional overview of the Allen-Bradley... -
Page 4: Related Documents
Table 1: System Specifications Firmware Protocol Compatibility Software Requirements Minimum Hardware Requirements Related Documents The following documents were referenced either directly or indirectly in the development of this document: 96KH06.D01 - Type KJ3003 Serial Interface Hardware Specification 96KH05.D03 - DeltaV Programmable Serial Card Design Document DeltaV Programmable Serial Card Application Guide DeltaV Programmable Serial Card Allen-Bradley Data Highway Settings Rev 3 Data Highway/Data Highway PlusÔ/DH-485 Communication Protocol... -
Page 5: Theory Of Operation
THEORY OF OPERATION As part of the serial interface port license, a standard Modbus protocol is installed on the DeltaV PSIC prior to customization. The PSIC needs to be flash upgraded from the Modbus protocol to the Allen-Bradley protocol before operation. The Allen-Bradley serial driver implements DF1 protocol. - Page 6 Powerful Solutions for Digital Plants With the Allen-Bradley driver installed, the “Advanced” tab under port properties will allow selection of the configuration option for the port to act as a slave. This Allen-Bradley driver does not support slave functionality, so this configuration option is not valid. The Allen-Bradley driver supports PLC-5 Logical ASCII and binary addressing, and SLC5/XX Protected Typed Logical addressing.
-
Page 7: Downloading The Firmware
Downloading the firmware To begin installation of the Allen-Bradley driver, create a folder on the hard drive. The preferred location for the folder is at C:\DeltaV\Ctl\ProgSerial\AllenBradley, although any location will work. Next, copy the eight files from the diskette provided. Those files are: 1200.idf IO_Compatibility.csv AllenBradleyApp.sdf... -
Page 8: Configuration Information
CONFIGURATION INFORMATION This section describes the steps necessary to configure the DeltaV PSIC and the Allen- Bradley PLC such that communications may be invoked Channel Attributes Block of PSIC Channel Attributes Block For the PSIC configuration, there is one channel attributes block per Dataset. There can be up to 16 Datasets configured per port for a total of 32 Channel Attribute Blocks per Serial Card. - Page 9 Attribute DeviceDataType SpecialData1 (PLC-5 /SLC / PLC-3 File Type) For PLC-3 Character value of File Prefix. For example for File F, enter 70. SpecialData2 (PLC-5 / SLC / PLC-3 File Number) MYNAH Technologies 504 Trade Center Blvd. Powerful Solutions for Digital Plants Defined Values 0 = Basic Protected 1 = Basic Protected Bit...
-
Page 10: Output Mode
SpecialData3 SpecialData4 Device And Dataset Configuration The following paragraphs discuss some attributes in the device and Dataset configuration: 4.2.1 Device Address: The device address attribute is located in the device configuration box under port. It is the PLC/SLC node address, not the 1785-KE or 1770-KF2 communication module address. This number is used by DeltaV to uniquely identify each PLC in the Data Highway Plus network. - Page 11 Powerful Solutions for Digital Plants affecting other bits in the same word. This command is not available under the SLC5/XX architecture. 4.2.3 DeviceDataType This attribute defines what type of transaction will be performed for the Dataset between the PSIC and the Allen-Bradley device Values from 0 to 11 are listed in the above table. They are briefly described below: MYNAH Technologies 504 Trade Center Blvd.
- Page 12 Powerful Solutions for Digital Plants Types 0 – 3 (Basic Commands): These are mainly for PLC-5 backward compatibility to older types of PLC with non-paged memory like PLC-2. The special data fields are not used during configuration. All data (16-bit integer or discrete) are written/read through the PLC-2 compatibility file. The memory address in PLC-5 is assigned with the communication module address.
- Page 13 Powerful Solutions for Digital Plants Types 5 (Ranged Transaction with ASCII addressing) and 9 (Ranged Transaction with binary addressing): Unlike Typed operations that automatically adjust the memory address to accommodate the defined element type, the Ranged operations use word address exclusively. performs consecutive memory word read and write.
- Page 14 For floating point values, the starting address refers to the register number and a 4 byte value is read/written. For all other tables, the starting address refers to the register number and a 2 byte value is read/written. Notes: 1. DeviceDataTypes 7 and 10 are only valid with file type 3 and output mode 1. 2.
- Page 15 Powerful Solutions for Digital Plants Dataset Configuration Display The following DeltaV screens are displayed during a typical PSIC configuration utilizing the above parameters: MYNAH Technologies 504 Trade Center Blvd. Chesterfield, MO 63005 Telephone 636 681-1555 Fax 636 681-1660 www.mynah.com...
- Page 16 Powerful Solutions for Digital Plants MYNAH Technologies 504 Trade Center Blvd. Chesterfield, MO 63005 Telephone 636 681-1555 Fax 636 681-1660 www.mynah.com...
- Page 17 Powerful Solutions for Digital Plants MYNAH Technologies 504 Trade Center Blvd. Chesterfield, MO 63005 Telephone 636 681-1555 Fax 636 681-1660 www.mynah.com...
- Page 18 Serial Port Configuration for DeltaV PSIC In order for proper communication between the Programmable Serial Interface Card and the Allen-Bradley PLC, the serial port settings on both devices must be configured properly. The PSIC serial port can be configured via a combination of the following settings through the DeltaV Explorer Menu using the Properties box.
-
Page 19: Operational Check
· Stop Bits Operational Check Scope The following sections provide some assistance to ensure the interface is working properly. Verify Hardware and Software Version Number The user can verify that the AB driver has been installed using the DeltaV Diagnostics tool. -
Page 20: Using Diagnostics
· To assign a Dataset and a register in the Dataset to an I/O module, follow these steps: 1. Double click the IO_IN/IO_OUT parameter for the module. This brings up the IO_IN/IO_OUT Property window. 2. Click on the Browse button. This brings up the Browse window. 3. -
Page 21: Signal Description
DeltaV – PLC/SLC Electrical Interface The electrical interface between DeltaV and the PLC-3, PLC-5 and SLC 5/XX conforms to the RS-232 protocol and RS-422/485 protocol. The cabling should not exceed 50 feet for the RS-232 protocol or 4000 feet for the RS-422/485 protocol. In 6.1 and 6.2 the pin assignments for the PSIC Serial Terminal Block are listed for the RS-232 protocol and the RS-422/485 protocol. -
Page 22: Terminal Number
RS-422/485 Pin Assignments for DeltaV PSIC Terminal Number MYNAH Technologies 504 Trade Center Blvd. Powerful Solutions for Digital Plants Signal Description Port 1 - Isolated Ground (GND) Port 1 Half Duplex Data+/Full Duplex TXD+ Unused Port 1 - Half Duplex Data -/ Full Duplex TXD- Unused Port 1 - Full Duplex RXD+... - Page 23 Wiring Connections for RS-232 Communications The figure below shows the connections between the 1785-KE module RS-232 port and the serial card I/O termination block. Serial Card Term. Block P1 P2 (GND) (TXD) (RXD) (DTR) (DSR) The figure below shows the connections between the 1770-KF2 module RS-232 port and the serial card I/O termination block.
- Page 24 The figure below shows the connections between the Channel 0 Port of a PLC-5/PLC-3 and the serial card I/O termination block. Serial Card Term. Block P1 P2 (GND) (TXD) (RXD) (DTR) (DSR) The figure below shows the connections between the Channel 0 Port of a SLC5/XX and the serial card I/O termination block.
-
Page 25: Appendix A Module Settings
Appendix A Module Settings Appendix A discusses the necessary settings for 2 gateway modules. The 1785-KE module, Series A and B, and the 1771-KE and 1771-KF modules. 1785-KE Module (Series A) Switch Settings The 1785-KE module (Series A) has 6 switch assemblies which allow the selection of various communications options. - Page 26 There are additional switches on the 1785-KE Module (Series B) which may require adjustment. Refer to the Allen-Bradley User Manual for further information. · SW1 - RS232C link features · SW2 - Node number · SW3 - Data highway Plus and RS-232C communication baud rates, and Local/Remote option ·...
