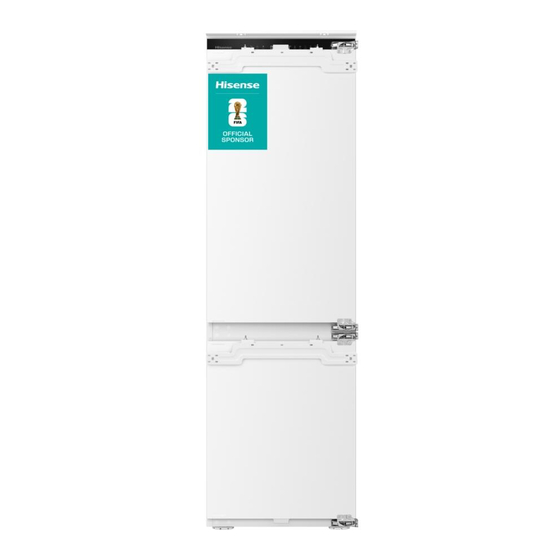

Hisense RB5B250SSWC User's Operation Manual

Hide thumbs

Table Of Contents

Quick Links

Download this manual

USER'S OPERATION MANUAL

Before operating this unit, please read this manual

thoroughly, and retain for future reference.

RB5B250SSWC

English

Table of Contents

Need help?

Do you have a question about the RB5B250SSWC and is the answer not in the manual?

Questions and answers

Summary of Contents for Hisense RB5B250SSWC

Page 1 USER’S OPERATION MANUAL Before operating this unit, please read this manual thoroughly, and retain for future reference. RB5B250SSWC English...
Page 2: Table Of Contents
Contents Safety and warning information ........................Description of the appliance..........................Electronic controls..............................First use and installation............................Reverse the door................................. Daily use................................... Helpful hints and tips............................... Cleaning and care..............................Troubleshooting................................Disposal of the appliance............................
Page 3: Safety And Warning Information
Safety and warning information For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features.
Page 4 Safety and warning information Safety for children and others who are vulnerable people According to IEC standard This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Page 5 Safety and warning information General safety WARNING This appliance is intended to be used in similar applications such as household and 1. staff kitchen areas in shops, offices and other working environments; 2. farm houses and by clients in hotels, motels and other residential type environments;...
Page 6 Safety and warning information General safety WARNING Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING Do not damage the refrigerant circuit. WARNING Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
Page 7 Safety and warning information Replacing the illuminating lamps WARNING The illuminating lamps must not be replaced by the user! If the illuminating lamps is damaged, contact the customer helpline for assistance. This warning is only for refrigerators that contain illuminating lamps. Refrigerant The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas...
Page 8 Safety and warning information WARNING Risk of fire / flammable materials If the refrigerant circuit should be damaged: Avoid opening flames and sources of ignition. Thoroughly ventilate the room in which the appliance is situated. It is dangerous to alter the specifications or modify this product in any way.
Page 9 Safety and warning information Electrical safety 7. The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.
Page 10 Safety and warning information The appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions for storage. Do not place carbonated or fizzy drinks in the freeze compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
Page 11 Safety and warning information Frozen food must not be refrozen once it has been thawed out. To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers. Never cover or obstruct the ventilation slats on the appliance.
Page 12: Installation
Safety and warning information Installation For electrical connection carefully, follow the instructions given in this manual. Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it.
Page 13 Safety and warning information This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Service Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person.
Page 14: Description Of The Appliance
Safety and warning information NOTE Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. (This clause applies only to the EU region.) Description of the appliance View of the appliance 1 Electronic control Fridge Multi-function rack Storage shelves Fresh drawer...
Page 15: Electronic Controls
Electronic controls All functions and controls of the unit are accessible from a control panel conveniently located on the roof of the cabinet. A display circuit board allows easy configuration of features and settings in a simple and intuitive manner. Display Controls Use your appliance according to the following control regulations, your appliance has the corresponding functions and models as the display panels showed in the...
Page 16 Electronic controls The Super Cool feature lowers the NOTE temperature in the fridge compartment. 1. Press the “Super Cool” button to Each press of the button decreases activate this function. The “ ” icon will the setting by one degree. be illuminated the fridge temperature indicator will display 2°C.
Page 17 Electronic controls Door Open Alarm: NOTE If a door is open for longer than 1 minutes, an alarm will sound to alert When you selecting the Super Freeze you. The alarm will sound 5 times every function, ensure there are no bottled minute in the first and second minutes.
Page 18 Electronic controls 8. Convert • When the Convert function is activated, Press and hold “Convert” button the Super Cool, Super Freeze, and Eco for 5 seconds to turn the Convert functions will be deactivated, while other function on or off. functions can be activated.
Page 19 Electronic controls 3. Download and install the ConnectLife Connecting your refrigerator app provided by Connect Life, LLC. After installing the Connectlife app, sign in or create an account and follow these Alternatively, you can scan the following steps: QR code with your smart phone or 1.
Page 20: First Use And Installation
Electronic controls NOTE • The appliance will remain in pairing mode for a maximum of 5 minutes. • To factory reset your network settings, press & hold the Wi-Fi button for 6 seconds. You will hear two beeps once the appliance is reset. •...
Page 21 First use and installation Height Width Refrigerator door height Freezer door height Profundity The distance from the bottom of the refrigerator to top of the hinge The distance from the bottom of the refrigerator to bottom of the hinge The distance from the top of the refrigerator to the bottom of the hinge Door-opening angle Model height...
Page 22: Installation Instructions
First use and installation Installation instructions 115° This diagram shows the state of the hinge side of the product after installation. The gap between the left and right cabinet doors is recommended as shown in the figure above, the wall thickness of the cabinet 19mm ≤...
Page 23 First use and installation You may need: electric cross straight spanner portable drill screwdriver screwdriver square scissors Spirit level ruler string...
Page 24 First use and installation ≥590mm ≥560mm Consideration for socket outlet If you install the refrigerator in a cabinet with a 560 mm location and required space depth, make sure the power cord is arranged on a side of the refrigerator before plugging into a power socket. If the power cord is in the rear of the refrigerator, it could decrease the energy efficiency.
Page 25 First use and installation 90° 90° 1. Check the flatness level of the cabinet 1.Use wrench A to loosen the nut and remove with the spirit level the connecting plate from the door 2. Check the squareness of the cabinet 2.Slowly and carefully push the unit into the with the square installation compartment.
Page 26 First use and installation 44mm 44mm Adjust the position of the refrigerator as shown in the instruction figure. (44mm indicates the distance between the front of the cabinet and the front of the refrigerator 5mm refers to the distance between the right wall of the cabinet and the side of the refrigerator box) Tighten the adjustable feet with screw C.
Page 27 First use and installation Remove the screw hole cover and screw, Use screws F to gently secure the connecting shown in the instruction figure bracket E, Adjust the connecting bracket E to fit in with the cabinet side wall, tighten the screws F and C, and close the cover.
Page 28 First use and installation side wall cabinet door "T" is the lap size of the cabinet door and the side wall. Open the door to degree above 45°, refer to the instruction figure, hang the cabinet's door was assembled fridges door. Then, adjust the gaps at left and right, top and bottom. confirm the balancing and the gaps are even .
Page 29 First use and installation To ensure the doors are fully closed/ sealed, conduct a test on both doors following the installation of cabinet door, such as using a sheet of paper in-between the unit door and its seal and closing the cabinet door and seeing if there is any tension observed when pulling the sheet of paper –...
Page 30: Reverse The Door
Reverse the door The side in which the door opens can NOTE be changed from the right side (as supplied) to the left side, if the you should rest the appliance on soft installation site allows for it. foam packaging or similar materil to Reverse avoid damage.
Page 31 Reverse the door Please be careful your hands when take out the hinge...
Page 32 Reverse the door • Position the appliance away from NOTE sources of heat such as stoves, radiators, direct sunlight, etc. When reversing the door, the cabinet • Maximum performance and safety installation can refer to Built-In Fridge are guaranteed by maintaining the Freezer installation instructions.
Page 33: Daily Use
Reverse the door Electrical connection WARNING CAUTION This appliance must be grounded. Any electrical work required to instal The manufacturer declines any the appliance should be carried out liabiliy should these safety measures by a qualified or authorized person. not be observed. Daily use Accessories Movable shelves/trays...
Page 34: Helpful Hints And Tips
Daily use Thawing food • In the refrigerator compartment. • At room temperature. • In a microwave oven. • In a conventional or convection oven. • Food once thawed should be re-frozen with the exception of special cases. 1) lf the appliance contains related accessories and functions. 2) If the appliance contains a freezer compartment.
Page 35: Cleaning And Care
Helpful hints and tips • Milk bottles: these should have a cap cause skin to become freezer burnt. and should be stored in the bottle rack • It is recommended to label and date on the door. each frozen package in order to keep track of the storage time.
Page 36 Cleaning and care Exterior cleaning • Although this appliance automatically To maintain good appearance of your defrosts, a layer of frost may occur on appliance, you should clean it regularly. the freezer compartment’s interior walls • Wipe the digital panel and display if the freezer door is opened frequently panel with a clean, soft cloth.
Page 37: Troubleshooting
Cleaning and care Replacing the LED light Freezer compartment • To replace the LED light, the below • This compartment defrosts steps can be followed: automatically. 1. Unplug your appliance. Door seals cleaning 2. Remove light cover by pushing up •...
Page 38 Troubleshooting Problem Possible cause & Solution Check the fuse or circuit of your power supply, replace if necessary. The ambient temperature is too low. Try setitng the chamber Appliance is not temperature to a colder level to solve this problem. working correctly It is normal that the freezer is not operating during the automatic defrost cycle, or for a short time after the...
Page 39 Troubleshooting Problem Possible cause & Solution Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficient A layer of frost ventilation. Ensure that the door can be fully closed . To occurs in the remove the frost, please refer to the “Cleaning and care”...
Page 40: Disposal Of The Appliance
Troubleshooting Problem Possible cause & Solution The router and appliance kept far apart causing the poor Unable to connect network. Consider either moving the router closer to the appliance to WiFi appliance or purchasing Wi-Fi range extender and installing network Disposal of the appliance It is prohibited to dispose of this appliance as household waste.
Page 41 Disposal of the appliance To avoid contamination of food, please respect the following instructions. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. Clean regularly surfaces that can come in contact with food and accessible drainage systems.
Page 42 Disposal of the appliance Order Compartments Target storage Appropriate food type temp.[°C] Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended time *-Freezer ≤-6 is 1 month – nutrition values and taste decrease with time). Not suitable for freezing fresh food. Fresh pork, beef, fish, chicken, some packaged processed foods, etc.
Page 43 Disposal of the appliance NOTE Please store different foods according to the compartments or target storage temperature of your purchased products. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
Page 44 Hisense UK Ltd Ground floor Munroe Court White Rose Office Park Millshaw Park Lane Leeds LS11 0EA...
