Summary of Contents for Haier HWF12PXW1

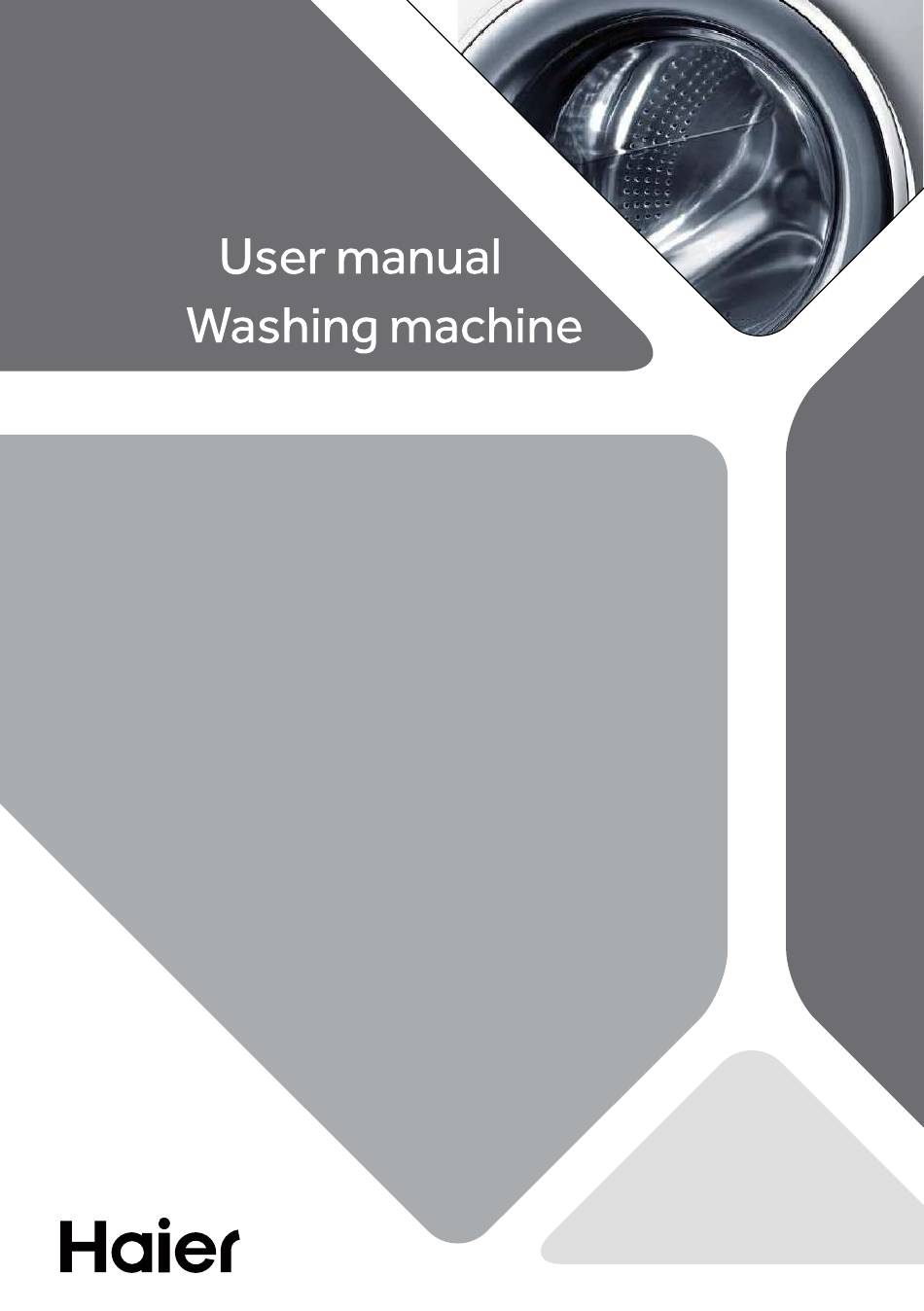

  • Page 1 HWF12PXW1 HWF12PXB1 NZ AU...

  • Page 3: Environmental Information

    NZ AU Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.
  • Page 4 NZ AU 1- Safety information........................... 4 2- Product description......................... 7 3- Control panel ............................ 8 4- Programmes...........................15 S- Consumption..........................16 6- Daily use ............................17 7- App usage instructions......................22 8- Eco-friendly washing........................23 9- Care and cleaning..........................24 10- Troubleshooting..........................27 1 l-lnstallation.............................31 12- Technical data..........................35 13- Customer service........................37...
  • Page 5 ► Do not operate this machine if it has been damaged during transport. Contact your dealer or Haier service technician. ► Ensure all transport bolts are removed before running the appliance. Failure to do so might end in damage to the appliance.

  • Page 6: Safety Information

    1-Safety information NZ AU WARNING! Daily use The appliance might get hot during operation, use caution if in close proximity. Unplug the appliance before undertaking maintenance. Hold the plug (not the cable) when unplugging the machine. Ensure there are no undesirable objects inside the drum before starting a cycle.

  • Page 7: Intended Use

    Do not use water spray or steam to clean the appliance. ► A damaged electrical cable must be replaced by a Haier service technician or similarly qualified person. Do not use the appliance until it has been repaired to avoid a risk of electric shock.
  • Page 8 NZ AU Note: Due to technical changes and different models, the illustrations in the following chapters may differ from your model. 2.1 Picture of appliance 1 Detergent / Softener drawer 1 Transportation bolts (T1-T4) 2 Top panel 2 Backcover 3 Control panel 3 Backcover screws 4 Door 4 Power cord...
  • Page 9 NZ AU 6 Operation buttons Dial Press the Power button (Fig. 3-2) to turn ON and OFF the product. When the product is on, the default cycle and options on the screen will be illuminated; meanwhile, the screen will also display possible modifiers and options in dim light;...

  • Page 10: Function Buttons

    NZ AU Wi-Fi. Delay Softener in drawer. S tain removal n i R Anti-crease Detergent in drawer. i-time. Smart Shirt Cotton Delicate Refre Synthetics Favourite. Allergy care Wool Babycare Quick 15’ Spin Cotto Ultra fresh. Used to return to the main interface. For more parameter selection.
  • Page 11 NZ AU Delay Temp. Touch this button again, fresh air icon will light up, screen display" Ultra Fresh on "(Fig.3-7). emoval Extra Rinse Speed Shirt Refresh Delicate Remote Allergy care Wool care Quick 15’ Spin Eco 40-60 Cotton 20°C 3.4.2 Function buttons This is the UV Sanitise function button, use this button to turn On and OFF (Fig.3-8, Fig.3 -9) the UV sanitise function during wash and rinse.

  • Page 12: Other Function Buttons

    NZ AU 3.4.4 Function buttons This is the Favourite function button. Choose a cycle and preferred settings, start the cycle, then press this Favourite button for 3 seconds to save it as your favourite cycle (Fig.3-11). Users can save up to 3 favourite cycles. In future, users can press the Favourite button to directly select cycle from your favourite cycles with preferred settings.

  • Page 13: Setting Function

    NZ AU 3.5.4 Detergent function Touch "Detergent" button(Fig.3-16)to select the 3-16 detergent auto-dosing dosage (OFF/40%/70%/100%/150%/200%). 3.5.5 Softener function Touch "Softener" button (Fig.3-17)to select 3-17 the softener auto-dosing dosage (OFF/40%/70%/100%/150%/200%). 3.5.6 Delay Start function Touch "Delay Start" button to select preferred options from 0.25hr to 12hr 3-18 (15min/30min/1hr/2hr/3hr/4hr/5hr/6hr/7hr/8hr/9hr/1...

  • Page 14: Detergent Drawer

    NZ AU 3.7 Keylock Delay Temp. 1.Use Keylock to disable the buttons on the display panel. 3-21 Delay Temp. S tain removal Extra Rins Key Lock can be used at any time including while a cycle is Anti-crease S tain removal Extra Rinse Speed Anti-crease...

  • Page 15: Add Garment

    NZ AU 3.9 Add Garment When the cycle is running, users can press the second button(Fig.3-25)from the Delay Temp. Delay Temp. right to activate the function of Add Garment as per prompt information. S tain removal Extra Rins Anti-crease S tain removal Extra Rinse Speed Anti-crease...
  • Page 16 4-Cycles NZ AU Softener Liquid Detergent Powder • Yes, Optional, º Max. load Temperatu Defaul t unction spin in kg speed in °C in rpm selectable Cycle range Fabrics type • • • • 1000 º º º º Mixed --to 60 º...
  • Page 17 M1766(HWF12PXW1, HWF12PXB1). This product is equipped with a loading weight recognition sensor. When the load weight is low, corresponding energy, water and washing time will be adjusted automatically for some cycles.
  • Page 18 NZ AU Connect the washing machine to a power supply (220V to 240V~/50Hz; Fig. 6-1). Please also refer to section 11-Installation(see page 34). Before connecting, make sure the water inlet is clean and intact. Turn on the tap (Fig.6-2). Before use, turn on the tap to check if there is any water leakage around the joint between the tap and the inlet hose.
  • Page 19 NZ AU Fabric Care chart 回 Washing 四 Washable up to 95°C Washable upto60 Washable up to 60°C 回 回 normal process � gentle process normal process 四 Washable up to 40°C Washable up to 40°C Washable up to40 品 回...

  • Page 20: Selecting Detergent

    NZ AU 6.5 Selecting detergent Washing efficiency and performance is determined by detergent quality. Use only machine wash approved detergent. If needed, use specific detergents, e.g for synthetic and woolen fabric. Kind of detergent Universal Colour Delicate Special Softener Cycle √...

  • Page 21: Adding Detergent

    NZ AU 6.6 Adding detergent Note: Carefully choose the cycle settings according to the care symbols on all laundry labels and according to the cycle table. 6.7 Switch on the appliance 6.8 Select a cycle To get the best washing results, select a cycle which fits the degree of soiling and sort of laundry type.
  • Page 22 NZ AU 6.10 Start the cycle Touch "Start/Pause" button (Fig. 6-8) to start. The LED of the "Start/ Temp. Pause"button stops flashing and lights up continuously. Speed Appliance operates according to present settings. Changes are only possible by cancelling the cycle. 6.11 Interrupt/ cancel cycle Smart Shirt...

  • Page 23: Getting Started

    1. Your product is Wi-Fi connectable, please visit the web page below to download the app and find out more: Australia https://www.haier.com.au/smart New Zealand https://www.haier.co.nz/smart 2. Register and create an account. 3. Add your appliance and set up the Wi-Fi connection...

  • Page 24: General Information

    NZ AU To achieve best use of energy, water, detergent and time, you should use the recom mended maximum load size. Do not overload (hand width clearance above laundry). For slightly soiled laundry, select the Express 15 cycle. Apply exact dosages of each washing agent. Choose the lowest adequate washing temperature, modern detergents are efficiently cleaning below 60°C.

  • Page 25: Cleaning The Detergent Drawer

    NZ AU 9.1 Cleaning the detergent drawer Make sure there are no detergent residues. Clean the drawer regularly (Fig. 9-1): 3. Wipe the inside of the sink clean with a towel. 9.2 Cleaning the machine 9.3 Water inlet valve and inlet valve filter To prevent blockage of water supply by solid substan- ces like lime, clean regularly the inlet valve filter.
  • Page 26 NZ AU If the appliance is left idle for a longer period: 1. Pull out the electrical plug (Fig. 9-6). 2. Turn off water supply (Fig.9-7). 3. Open the door to prevent formation of moisture and odours. Leave it open while not used. Before next usage, check carefully power cord, water inlet and drain hose.
  • Page 27 NZ AU After cleaning, reinstall the handle and tighten it until it does not move. At this time, the handle is in vertical state 11. Close service flap. Pump filter sealing has to be clean and undamaged. If the lid is not fully tightened, water can escape.
  • Page 28 NZ AU Many occurring problems could be solved by yourself without specific expertise. In case of a problem, please check all shown possibilities and follow below instructions before you contact customer service. See CUSTOMER SERVICE. WARNING! customer 10.1 Troubleshooting with display code CLR FLTR Contact customer service.
  • Page 29 NZ AU Signal transmission error between Check the wiring connection between the display board and the flow board the UI and WP panel, check the UI panel. Model has not been selected Set the machine model Contact customer service. The water level, temperature, or Lock spin speed does not meet the requirements for opening the door...
  • Page 30 NZ AU 10.2 Troubleshooting without display code Cycle is not yet started. Check cycle and start it. Washing machine Close the door properly Door is not properly closed. fails to operate. Switch the machine on. Machine has not been switched on Power failure.
  • Page 31 NZ AU Unbalance of laundry. Check machine load and laun- Spinning fails. dry and run a spinning cycle again. Degree of soil does not match with Unsatisfactory Select another programme. selected cycle. washing result. Choose the detergent Detergent quantity was not suf- according to the degree of ficient.
  • Page 32 NZ AU ’ 1.When opening the shrink package, you will find four noise reduction pads. These are used for reducing noise (Fig. 11-1). 2. Lay the washing machine down to its side, port-hole pointing upwards, bottom side towards operator (Fig. 11- 3.
  • Page 33 NZ AU Keep all parts of the transport protection in a safe place for later use. Whenever the appliance is to be moved, reinstall the protection parts first. If the machine is to be moved to a distant location, reinstall the transportation bolts in reverse order.
  • Page 34 NZ AU Fix the water drain hose properly to the piping. The hose has to reach at one point a height between 60 and 100 cm above the appliance bottom line! If possible, always keep the drain hose fixed to the clip at the back of the appliance. 11-9 11-10 11-9...
  • Page 35 NZ AU 11-12 11-13 11-12 11-13 11-14 Before each connection check if: power supply, socket and fusing are appropriate to the rating plate. the power socket is earthed and no multi-plug or extension are used. the power plug and socket are fully matched. Ensure always that all connections (power supply, drain and fresh water hose) are firm, dry and leak free! Make sure that these parts are never to be crushed, kinked or twisted.
  • Page 36 NZ AU 12.1 Additional technical data 1169...
  • Page 37 NZ AU ELECTRICAL Volts 220-240V Amps（maximum） 2000 Power consumption(w)

  • Page 38: Troubleshooting

    NZ AU We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check the section TROUBLESHOOTING. If you cannot find a solution there please contact. your local dealer,or The Service and Support area at www.haier.com where you can find telephone...
