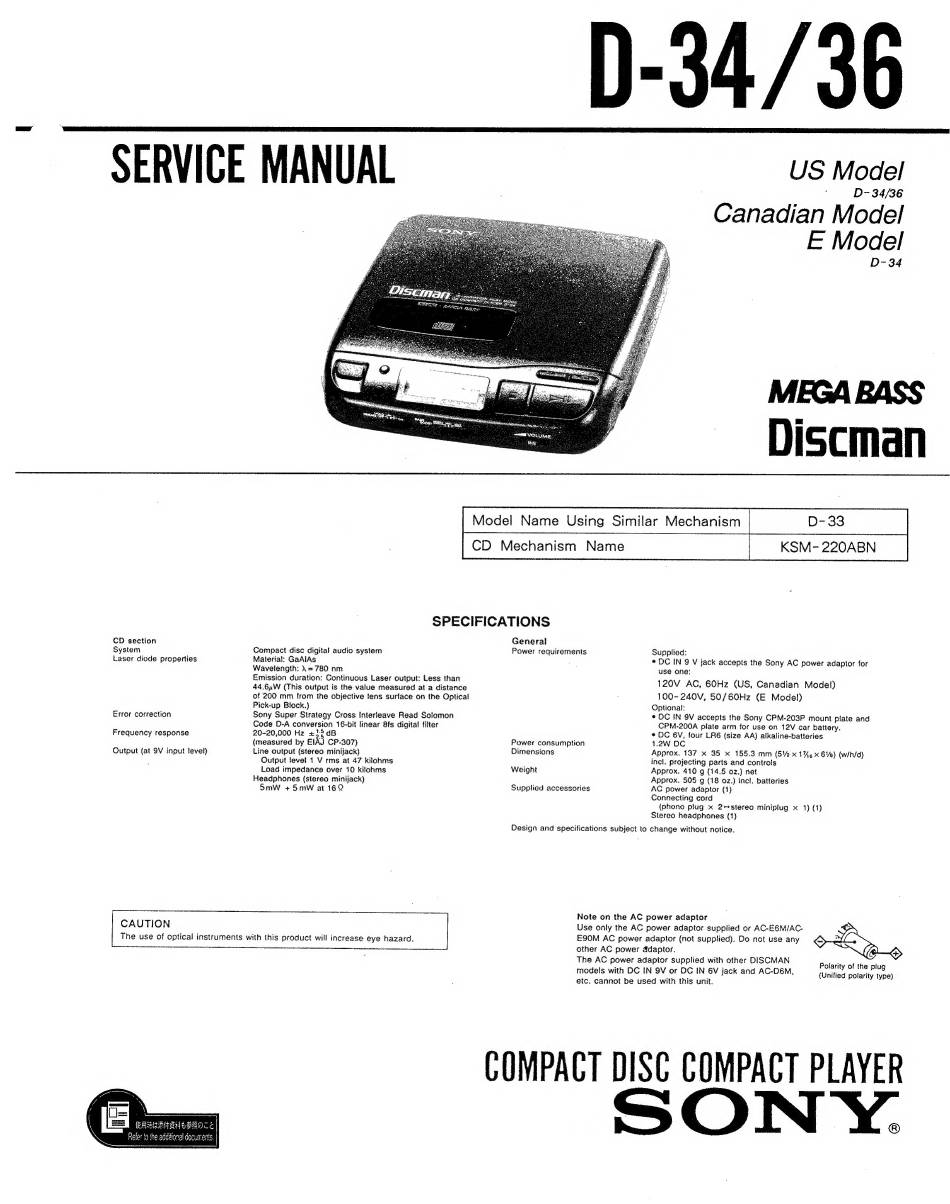

D-34/36
SERVICE MANUAL
US Model
D~ 34/36
| Canadian Model
E Model
D- 34
MEGA BASS
Discman
Model Name Using Similar Mechanism
CD
Mechanism
Name
KSM- 220ABN
SPECIFICATIONS
CD section
General
System
Compact disc digital audio system
Power requirements
Supplied:
Laser diode properties
Material: GaAlAs
:
© DC IN 9 V jack accepts the Sony AC power adaptor for
Wavelength: \ = 780 nm
use one:
Emission duration: Continuous Laser output: Less than
:
44.6.W (This output is the value measured at a distance
120V
AC, 6OHz
(US, Canadian
Model)
of 200 mm from the objective lens surface on the Optical
100- 240V, 50/60Hz
(E Model)
Pick-up Block.)
Optional:
Error correction
Sony Super Strategy Cross !nterleave Read Solomon
¢ OC IN 9V accepts the Sony CPM-203P mount plate and
Code
D-A conversion
16-bit linear 8fs digital filter
CPM-200A
plate arm
for use on
12V car battery.
Frequency response
20-20,000 Hz +92 d8
* OC 6V, four LR6 (size AA) alkaline-batteries
(measured by ESAJ CP-307)
Power consumption
1.2W OC
Output (at 9V input level)
Line output (stereo minijack)
Dimensions
Approx. 137 x 35 x 155.3 mm (5% x 1%_ x 6Ye) (w/h/d)
Output level 1 V rms at 47 kilohms
incl. projecting parts and controls
Load impedance over 10 kilohms
Weight
Approx. 410 g (14.5 02.) net
Headphones
(stereo minijack)
Approx.
505 g (18 02.) incl. batteries
Smw
+5mwW
at 162
Supplied
accessories
AC power
adaptor (1)
Connecting
cord
(phono plug x 2+stereo miniplug x 1) (1)
Stereo
headphones
(1)
Design and specifications subject to change without notice.
Note on the AC power adaptor
CAUTION
Use only the AC power adaptor supplied or AC-E6M/AC-
The use of optical instruments with this product will increase eye hazard.
E90M AC power adaptor (not supplied). Do not use any
other AC power &daptor.
The AC power adaptor supplied with other DISCMAN
models with DC IN 9V or DC IN 6V jack and AC-D6M,
etc. Cannot be used with this unit.
Polarity of the plug
(Unified polarity type)
OMPACT DISC COMPACT PLAYER
SONY.
