Sony D-311 Service Bulletin

Model: D-311
Subject:
Battery does not charge up all the way: Add the
charge Kit

Symptom:

(**)
Battery is not able to operate unit for more than two hours even though battery was
fully charged (charged for more than 4 hours)

Solution:

Replace Resistor R424 in the Charge Detection circuit with the Charge Bd. Mount kit
and perform the following modification procedure.
REF
R424

Procedure:

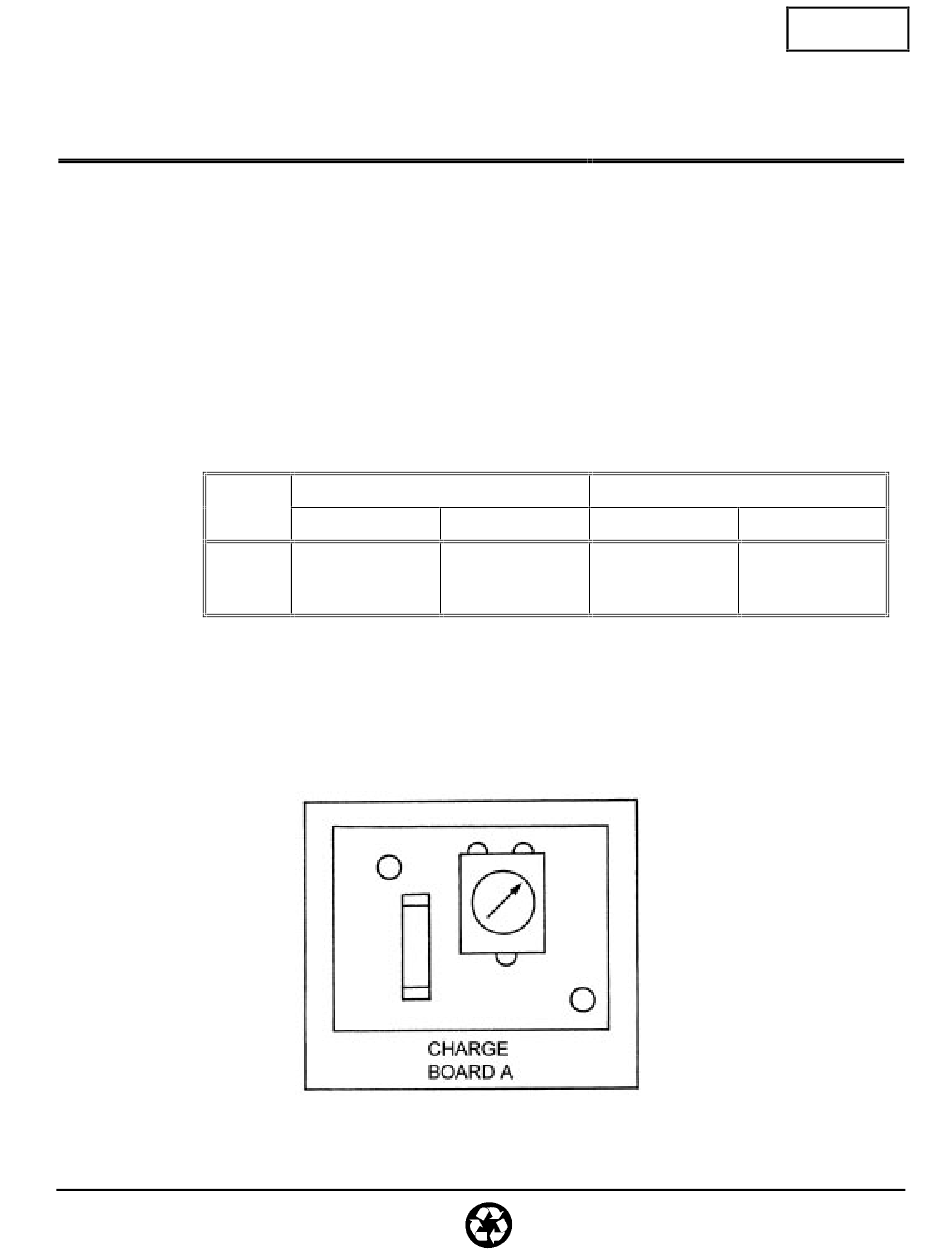

Set the variable resistor on the CHGA board counterclockwise, until the resistance
measured between the CHGA board's leads is at a minimum (about 10K).
Remove R424 and solder the leads of the CHGA board in its place.
Reference: T/N #GA-94064
Autoflagged - NO
Hi-Fi Products
Service Bulletin
Sony Service Company - Technical Services
A Division of Sony Electronics Inc.
Sony Drive, Park Ridge, New Jersey 07656
FORMER
DESCRIPTION PART NUMBER
CHIP 1-216-845-11
RESISTOR 100
KOHMS
PRINTED ON RECYCLED PAPER
437
No.
Date:
May 2, 1995
NEW
DESCRIPTION PART NUMBER
CHARGE BD A. X-4945-506-1
MOUNT KIT
CSA-13
