Related Manuals for Coaster 950355
Summary of Contents for Coaster 950355

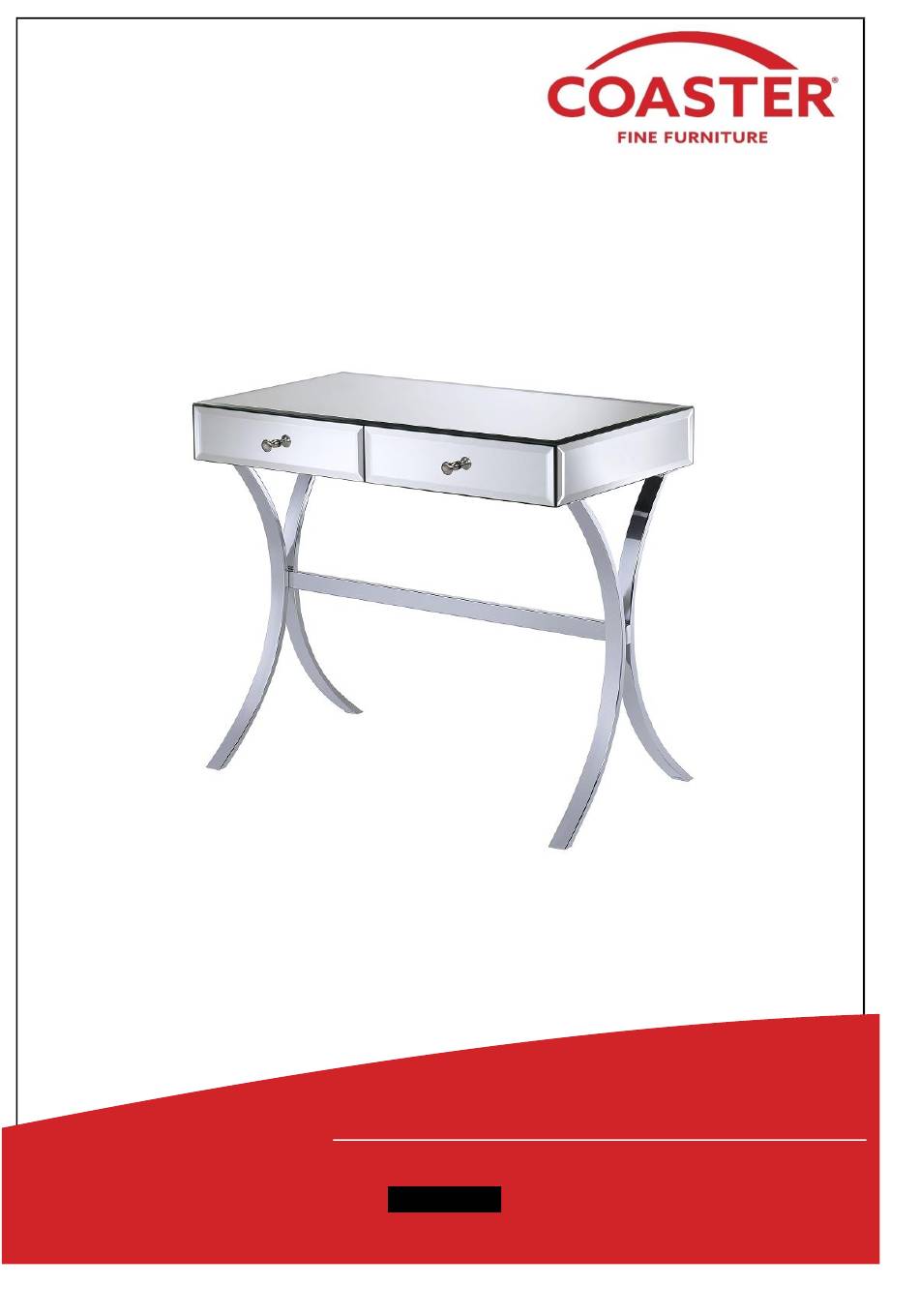

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 950355 CONSOLE TABLE COASTERFURNITURE.COM PAGE 1 OF 6 REVISION 0 : 03/21/2018 REVISION 1 : 03/31/2020...
-
Page 2: Assembly Tips
950355 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
950355 ITEM: ASSEMBLY INSTRUCTIONS HARDWARE IDENTIFICATION ALLEN SCREW 4 PCS (1/4" x 1-1/4" SR) KNOB 2 PCS (Ø25 x 25mm SR) ALLEN SCREW 4 PCS (1/4" x 5/8" SR) BOLT 2 PCS (5/32" x 1-3/8" SR) 2 PCS (13mm x 38mm SR) - Page 4 950355 ITEM: ASSEMBLY INSTRUCTIONS STEP 1 STEP 2 PAGE 4 OF 6 COASTERFURNITURE.COM...
- Page 5 950355 ITEM: ASSEMBLY INSTRUCTIONS STEP 3 STEP 4 COMPLETE PAGE 5 OF 6 COASTERFURNITURE.COM...
- Page 6 950355 ITEM: 400.05mm (15.75") 443mm (17.5") 793.75mm (31.25") 380mm (15") 670mm (26.25") Note : Dimension tolerance ±5% PAGE 6 OF 6 COASTERFURNITURE.COM...
