eSENSE Slim 0-5V

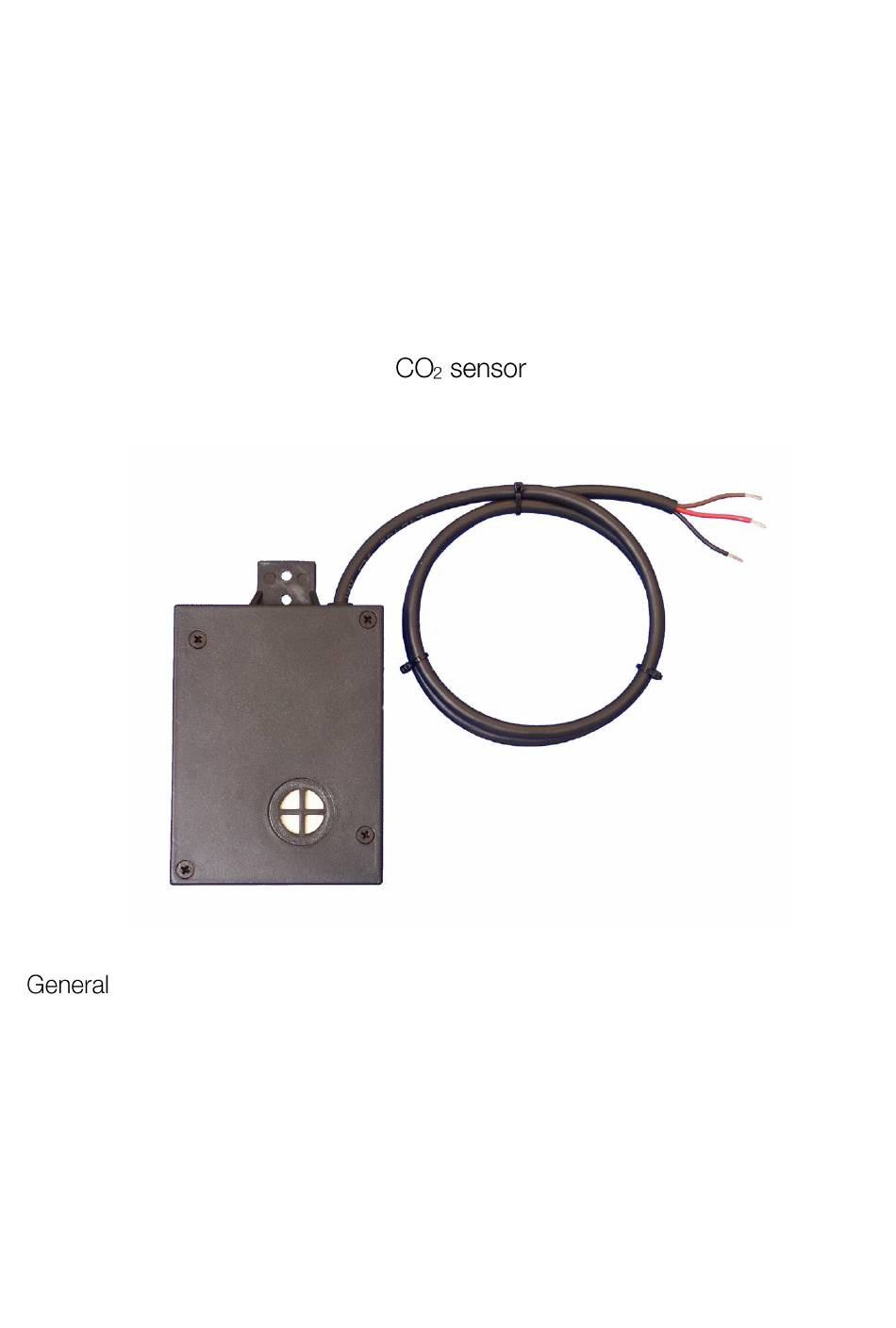

The IAQ-sensor product eSENSE Slim (sensor in industrial housing) is used to measure indoor air carbon
dioxide concentration. The 300 mm long cable connected to the PCB makes it possible to place the sensor
where the mounting is difficult.
The unit is designed for connecting to Direct Digital Control (DDC) with 0-5V signal inputs.
Installation Manual
Document
Rev
IMA0274
7
Page
1 (4)
Advertisement
Related Manuals for SenseAir eSENSE Slim
Summary of Contents for SenseAir eSENSE Slim
- Page 1 Installation Manual eSENSE Slim 0-5V The IAQ-sensor product eSENSE Slim (sensor in industrial housing) is used to measure indoor air carbon dioxide concentration. The 300 mm long cable connected to the PCB makes it possible to place the sensor where the mounting is difficult.
- Page 2 The eSENSE Slim has a permanently connected cable to the PCB. Brown, 0-5V Black, GND Red, +24V 300(11,8) Shrinking tubing Brown, 0-5V Black, GND Red, +24V Figure 1. The eSENSE-Slim with the cable. Figure 2. The eSENSE PCB. The brown cable is connected to OUT1 voltage output 0-5VDC...
- Page 3 The power supply has to be connected to is considered as system ground. The same ground reference has to be used for the eSENSE unit and for the DDC/signal receiver. NOTE! The same ground reference has to be used for the eSENSE unit and for the control system! NOTE!
- Page 4 67,5(2,66) Figure 3. The dimensions of the sensor in mm and (inches) ® Senseair AB (headquarter) Stationsgatan 12 Phone: +46-(0)653 - 71 77 70 Box 96 E-mail: info@senseair.com 824 08 Delsbo SWEDEN Web site: www.senseair.com Document Page IMA0274 4 (4)
