SenseAir S8 Handling Manual

Senseair S8 and S88
NOTE:
ESD sensitive product.
Use ESD protection equipment.
Particle filter
NOTE:
To ensure airflow, and quick sensor response time to changes
in environment: do not block particle filter!
Installation and soldering
See IPC-J-STD-001 for acceptable soldering conditions in general.
Selective soldering machine (drag soldering method): soldering temperature 295 °C during three seconds.
Hand soldering: soldering iron temperature 380 °C during two seconds/pin.
Mechanical properties
Please refer to mechanical drawing of detailed specification regarding dimensions and tolerances.
Layout considerations:
Use cut-outs or slits in main board to reduce mechanical stress to sensor due to board thermal expansion.
To ensure stability, do install pin headers on both sides of sensor.
Handling Manual
Miniature CO sensor module with NDIR technique
2

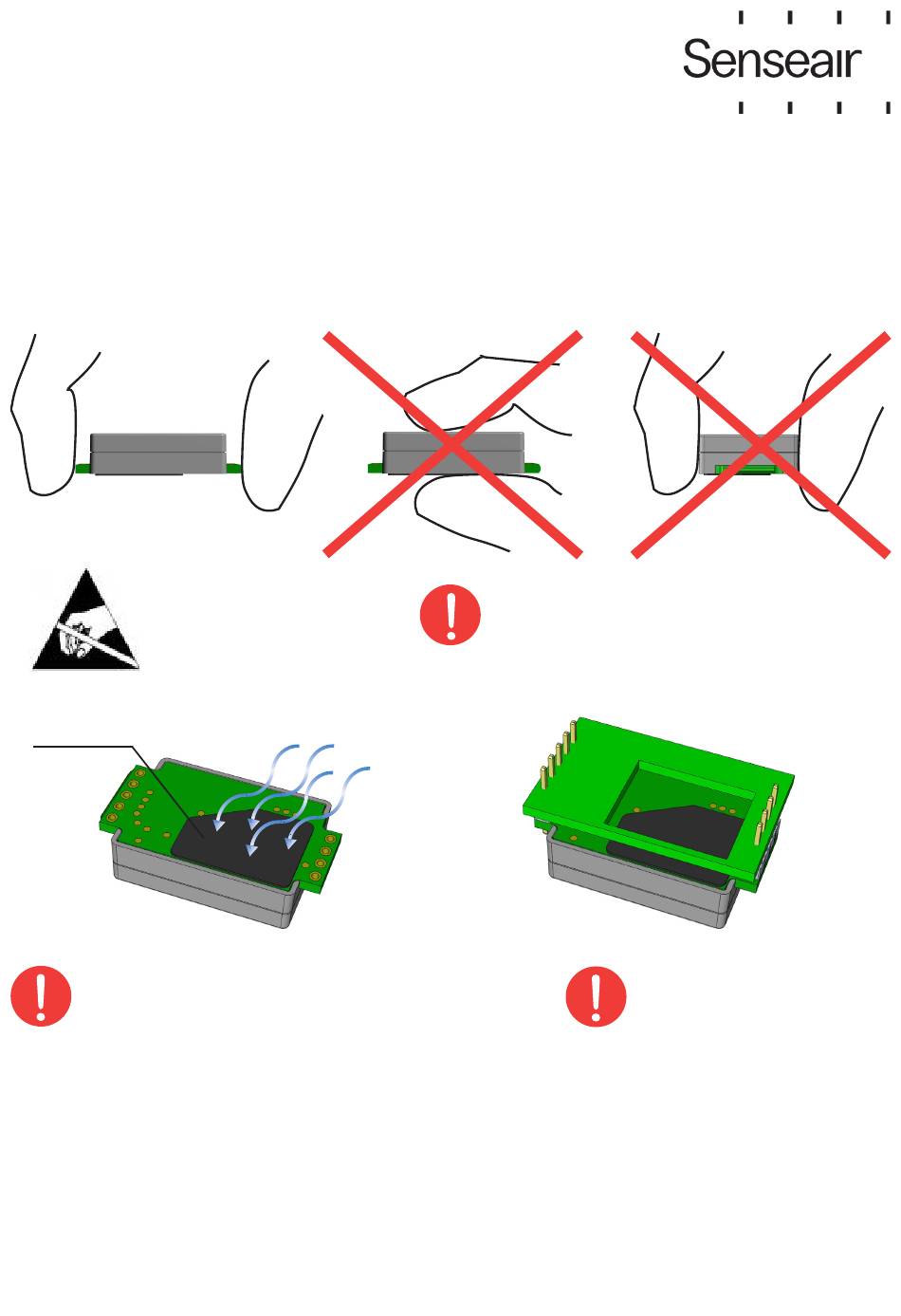

NOTE:
Handle sensor by holding PCB only.
Never touch sensor with bare hands! Use clean gloves
to avoid dust, grease or other contaminations.
OBA shall not be subjected to any force.
NOTE:
No gluing or moulding on OBA.
Document
ANO0102
Rev Page
10 1 (3)
