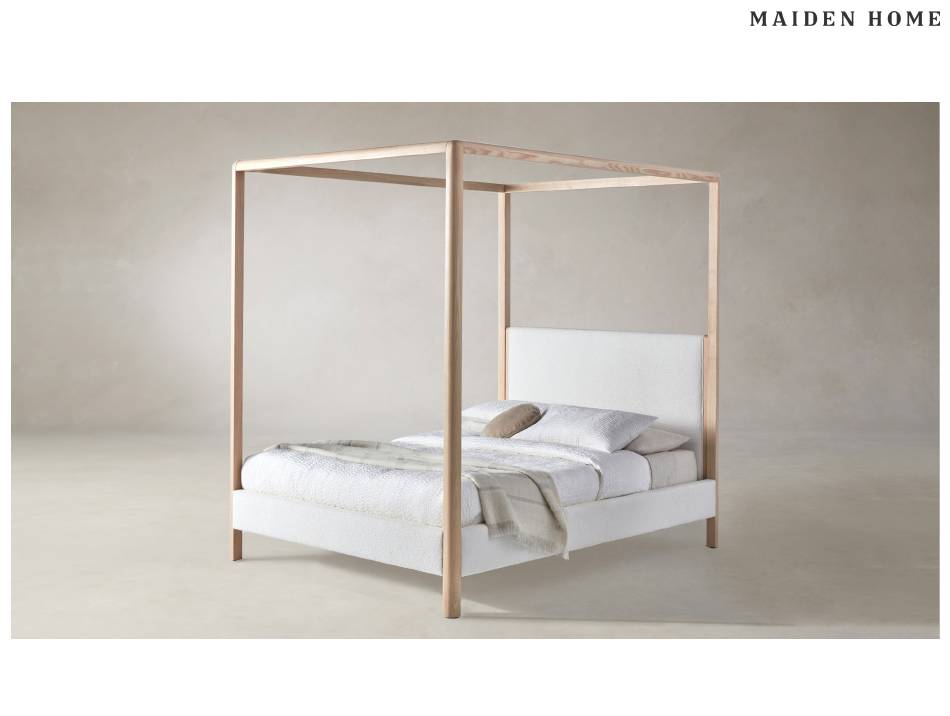

- Page 1 The Thompson Canopy Bed Assembly Instructions hello@maidenhome.com (888) 513-5754...
- Page 2 The Thompson Canopy Bed Components & Hardware Slats (14–15) Headboard (1) Center Support Legs (3) Horizontal Posts (4) Center Support Rail (1) Side Rails (2) Headboard Posts (2) Footboard Posts (2) Footboard (1) Screws (16) Assembly requires 2 people. Queen and king beds have 14 slats while California king beds have 15 slats.
- Page 3 The Thompson Canopy Bed Component Labels Please note that all horizontal posts, headboard posts, and footboard posts are labeled with numbers to ensure proper assembly. The labels are located at the ends of the horizontal posts and next to the receiving bracket of the headboard and footboard posts.
- Page 4 The Thompson Canopy Bed Assembly Instructions To connect each headboard post to the headboard, insert the pre-attached rail fastener into the footboard fitting and press down firmly to lock it in place. Left Side Right Side...
- Page 5 The Thompson Canopy Bed Assembly Instructions To connect each side rail to the headboard, insert the pre-attached rail fastener into the headboard fitting and press down firmly to lock it in place. Left Side Right Side...
- Page 6 The Thompson Canopy Bed Assembly Instructions To connect each footboard post to each side rail, insert the pre-attached rail fastener into the footboard fitting and press down firmly to lock it in place. Left Side Right Side...
- Page 7 The Thompson Canopy Bed Assembly Instructions To connect each footboard post to the footboard, insert the pre-attached rail fastener into the footboard fitting and press down firmly to lock it in place.
- Page 8 The Thompson Canopy Bed Assembly Instructions To connect the horizontal posts to the headboard and footboard posts, slot the attached brackets into the receiving brackets. Be sure to match the numbers on the ends of the horizontal posts to the corresponding...
- Page 9 The Thompson Canopy Bed Assembly Instructions Attach the L brackets to the horizontal posts with the screws provided. Use the pre-drilled holes to guide placement of the brackets.
- Page 10 The Thompson Canopy Bed Assembly Instructions Screw the center support legs into the center support rail, with the metal T-nuts facing upward.
- Page 11 The Thompson Canopy Bed Assembly Instructions Place the center support rail inside the bed frame. Adjust the glides on the center support legs as needed, ensuring the legs stand straight and are flush to the floor.
- Page 12 The Thompson Canopy Bed Assembly Instructions Place the slats inside the bed frame. Note that the slat pocket is designed to be slightly wider than the slat for ease of assembly.
- Page 13 The Thompson Canopy Bed Assembly Instructions The illustrations below display the various configurations of the Thompson canopy bed. Queen & King California King 14 slats 15 slats...
- Page 14 The Thompson Canopy Bed Assembly Checklist Review the checklist below to ensure your Thompson canopy bed is properly assembled. Ensure all slats are present. Ensure all slats are lying flat. Ensure all hardware is firmly secured. Do not loosen or move hardware.
