Bella Flip & Store 35142 Manual

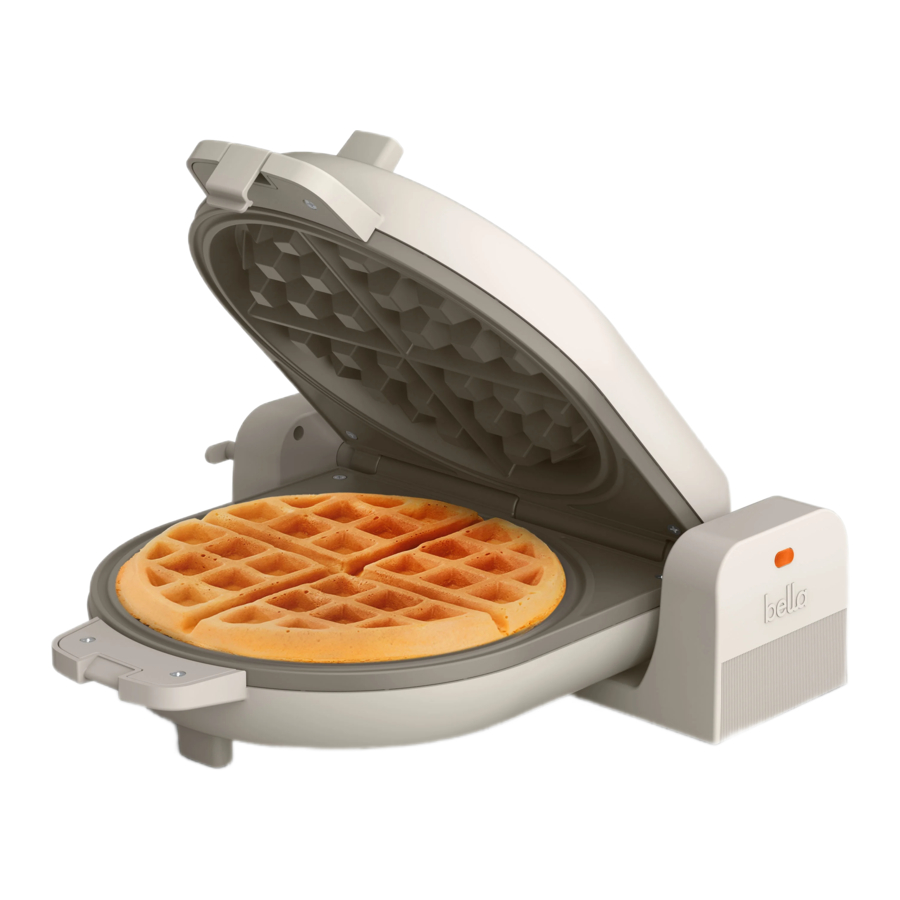

GETTING TO KNOW YOUR WAFFLE MAKER

Product may vary slightly from illustration.

1. Cool-Touch Handle with Locking Latch
2. Ceramic non-stick waffle plates
3. Clutter-Free Cord Storage
4. Push and Lock Button
5. Soft Glow "Ready" Indicator Light

BEFORE USING FOR THE FIRST TIME

• Remove all parts included in the box.
• Clean all the parts thoroughly (refer to Cleaning and Maintenance section for more information).
  NOTE: Your Waffle Maker may emit a small amount of smoke and/or odor when you use it for the first time. This is normal and harmless, however we recommend that you do not eat the first waffle you make with the Waffle Maker.

USING YOUR WAFFLE MAKER

1. Unlock your waffle maker by pressing the button on the back of the unit and turn counter-clockwise (Figure 1). Unlock the clasp of the handle.

2. Plug the cord into your 120 V AC wall outlet. The orange power light will illuminate indicating the appliance is ready for preheating.
3. The indicator light will turn from orange to white when the Waffle Maker reaches proper cooking temperature. This should take approximately 3 to 5 minutes. Once heated, ready times will be faster.
4. Open the Waffle Maker, and apply a light layer of vegetable oil, olive oil or canola oil to the cooking plates. Add 3/4 – 1 cup of batter to the center of the cooking plate and spread the batter evenly onto the lower plate so that peak areas of the plate are covered.

   DO NOT USE COOKING SPRAYS. THEY CAN CAUSE A BUILD-UP ON THE COOKING PLATES AND MAY AFFECT THE CERAMIC NON-STICK PERFORMANCE OF THE PRODUCT.
5. Close the lid and using the handle, flip the waffle plates to the other side (Figure 2).
   NOTE: Do not lock the handle.

6. Cook for about 2 ½ minutes or until the indicator light turns back to white. Lift the handle to open.
   NOTE: Do not open the waffle maker for at least 1 min 30 seconds. This can cause the under-cooked waffles to break and they can be difficult to remove from the plates.
7. If the waffles are not dark enough, close the Waffle Maker and continue to cook. Check every minute for doneness.
8. When you are satisfied with your waffles, use a non-metallic utensil to remove them from the heating plates. Repeat for as many waffles as desired.
   NOTE: Repeat waffles cook faster because extra heat has been retained.
9. After it has sufficiently cooled, the heating plates may be wiped clean.

TIPS FOR PERFECTLY BAKED WAFFLES

1. Stir your waffle batter only until large chunks of dry ingredients are dissolved. Over mixing the waffle batter can cause the waffles to be hard.
2. The exact amount of batter needed to make perfect full-sized waffles depends on the type and consistency of the batter. Use the same ladle or measuring cup each time to determine how much batter you need to fill the lower plate fully so as to cover the peaks in the plate.
3. When making softer variety of waffles, once they are baked, make sure to cut the waffles into halves or in 4 quarters and support them with a spatula at the bottom so it is easier to take them out from the plates, since softer waffles can break easily.
4. When making large batches to serve at once, you can keep the waffles fresh & crisp by placing them in a preheated oven at 200°F. Take them out using oven mitts when you are ready to serve.
5. To avoid waffles with a moist base, kept the waffles on a wire cooling rack. This will retain the crispness of the waffles.
6. You can reheat your waffles in the waffle maker. Pre-heat the waffle maker. Once preheated, place the waffles on the lower plate so they fit the grooves correctly, then close the waffle maker and heat for 1 to 2 minutes, checking every 30 seconds to avoid burning.
7. You can also freeze your waffles to eat later. After the freshly baked waffles have cooled completely, pack them in a covered container or plastic freezer bag. Make sure to separate the waffles with a sheet of wax paper between each waffle. To reheat the frozen waffles, place in a pre-heated oven, toaster oven or toaster until they are hot.

CLEANING AND MAINTENANCE

1. Always turn off the appliance, unplug it, and allow it to cool down before cleaning.
2. You can easily remove any excess oils or crumbs without disassembling the appliance.
   NOTE: NEVER SUBMERGE THE APPLIANCE IN WATER OR PLACE IT IN THE DISHWASHER.
3. For best results and preserve the ceramic non-stick coating longer, use nylon, plastic, wooden or rubber utensils.
4. Use a soft cloth on the heating plates and occasionally a metal polish intended for stainless steel on the outer housing. Never use abrasive scouring pads or steel wool.
5. If there is hardened batter on the plates, pour a little oil and let it sit for about 5-7 minutes.
   You can then wipe clean with a paper towel.
6. Do not use the Flip Waffle Maker for anything other than making waffles.
   This appliance requires little maintenance. It contains no user serviceable parts. Do not try to repair it yourself. Any servicing requiring disassembly other than cleaning must be performed by a qualified appliance repair technician.

HINTS FOR CARE AND USE OF CERAMIC NON-STICK SURFACE

• To avoid scratching the ceramic non-stick surface, do not stack objects on the waffle cooking plates.
• Use medium to low heat for best cooking results. Very high temperatures can cause discoloration and shorten the life span of any non-stick surface. If higher temperatures are necessary, preheat on medium heat for a few minutes.
• Use only nylon, plastic, or wooden utensils with care to avoid scratching the non-stick surface. Never cut food on the grill or griddle plate.
• Remove stubborn stains with a plastic scouring pad and mild dish washing liquid; DO NOT USE STEEL WOOL as it will damage the non-stick surface of the cooking plates.

STEPS FOR STAIN REMOVAL AND PROPER CARE OF YOUR CERAMIC NON-STICK COATING

1. Identify stained areas on the cooking surface and sprinkle some baking soda on the stains.
2. Moisten the baking soda to get a paste like texture by adding some water.
3. Let the paste stand for a few minutes on the stains (not more than an hour).
4. Rub with a soft damp cloth or lightly scrub with a plastic scouring pad, wipe clean and dry thoroughly.
   NOTE: Do not rub vigorously when using a plastic scouring pad and NEVER use a metal scouring pad as this may damage the non-stick coating.
5. Repeat the cycle once again if necessary The performance and non-stick property of the ceramic non-stick coating will not be affected due to stains.

STORING INSTRUCTIONS

1. Unplug and clean unit.

   Never store the unit while it is hot or plugged in.
2. Close Flip Waffle Maker with clasp.
3. Press and turn to the right to lock the waffle upright (Figure 3). (To unlock, press and turn button to the left).

4. Wrap the cord around the cord storage.

   Never wrap cord tightly around the unit. Never place any stress on the cord, especially where cord enters the unit, as this could cause the cord to fray and break.

   Make sure to unroll cord from cord storage before plugging it into the outlet.
5. Store in a clean, dry place.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS BEFORE USING APPLIANCE.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against risk of electric shock, do not immerse or partially immerse the cord, plugs, or the entire unit in water or any other liquid.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
5. Close supervision is necessary when any appliance is used by or near children.
6. Unplug from wall outlet when not in use and before cleaning. Allow to cool before cleaning or storing this appliance.
7. Never yank the cord to disconnect the appliance from the outlet. Instead, grasp the plug and pull to disconnect.
8. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Bring the appliance to a qualified service agent for examination, repair or electrical/ mechanical adjustment to avoid hazard.
9. The use of accessories attachments not recommended by the appliance manufacturer may cause fire, electrical shock or injuries.
10. Do not use outdoors. This is for household only.
11. Do not use for commercial purposes.
12. Do not let the electrical cord hang over the edge of the table or counter, or touch hot surfaces.
13. Do not allow appliance to come into contact with any materials that are flammable such as draperies, walls, etc.
14. Do not place on or near a hot gas or electric burner or in a heated oven.
15. Use on a heat-resistant, flat level surface only.
16. Extreme caution must be used when moving an appliance containing hot food, hot water, hot oil or other hot liquids.
17. The cord to this appliance should be plugged into a 120V AC electrical outlet only.
18. A short power-supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
19. To disconnect, remove plug from outlet.
20. Always unplug after use. The appliance will remain ON unless unplugged.
21.
    HOT SURFACES: This appliance generates heat during use. Proper precautions must be taken to prevent the risk of burns, fire or other damage to persons or property.
22. When using this appliance, provide adequate ventilation above and on all sides for air circulation. Do not allow this appliance to touch curtains, wall coverings, clothing, dish towels or other flammable materials during use.
23. Do not use appliance for other than intended use. Use with wall receptacle only.

FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

ADDITIONAL IMPORTANT SAFEGUARDS

This appliance is hot during operation and retains heat for some time after turning OFF. Always use oven mitts when handling hot materials and allow metal parts to cool before cleaning. Do not place anything on top of the appliance while it is operating or while it is hot.

1. All users of this appliance must read and understand this Instruction Manual before operating or cleaning this appliance.
2. Do not leave this appliance unattended during use.

NOTES ON THE PLUG
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

NOTES ON THE CORD

1. A short power-supply cord (or detached power-supply cord) is provided to reduce the risk resulting from becoming entangled in or tripping over a long cord.
2. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
3. If a long detachable power-supply cord or extension cord is used:
   1. T he marked electrical rating of the cord set, or extension cord should be at least as great as the electrical rating of the appliance.
   2. I f the appliance is of the grounded type, the extension cord should be a grounding-type3-wire cord.
   3. T he longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

PLASTICIZER WARNING

To prevent plasticizers from migrating to the finish of the countertop or tabletop or other furniture, place NON-PLASTIC coasters or place mats between the appliance and the finish of the countertop or tabletop. Failure to do so may cause the finish to darken, permanent blemishes may occur, or stains can appear.

ELECTRIC POWER
If the electrical circuit is overloaded with other appliances, your appliance may not operate properly. It should be operated on a separate electrical circuit from other appliances.
