Graco MYAVO Manual

Parts list

1. Canopy
2. Armbar
3. Shoulder Harness
4. Buckle
5. Calf Support
6. Front Wheels
7. Adaptors (May not be included)
8. Secondary Lock
9. One-Hand-Fold Handle
10. Backrest Adjuster
11. Storage Basket
12. Brake Lever
13. Rear Wheels
14. Rain Cover
15. Footmuff

Product Set Up

Please read all the instructions in this manual before assembling and using this product.

To Open Stroller

1. Check the stroller frame is completely latched open before continuing.

To Attach and Remove Front Wheels

To Attach and Remove Rear Wheels

To Attach and Remove Armbar

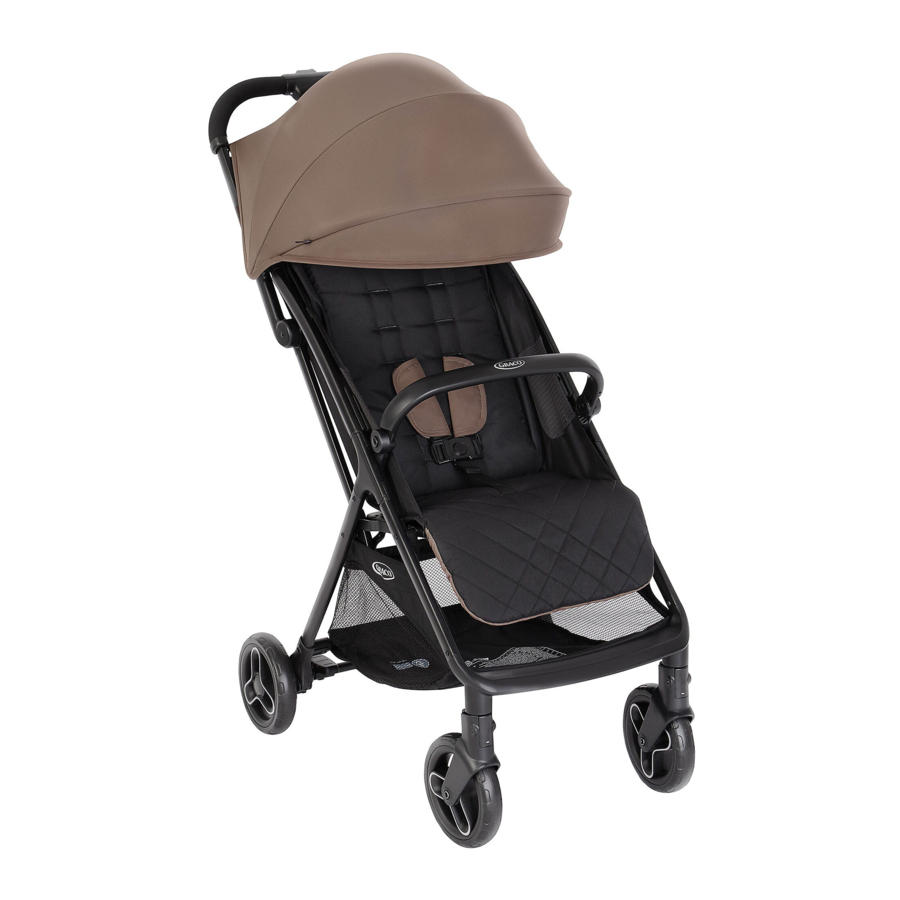

The completely assembled stroller is shown as .

Product Use

To Secure Child - 5 Point Harness

• To avoid serious injury from falling or sliding out, always secure your child with harness.
• DO NOT cross the shoulder belts. This will cause pressure on child's neck.
• Make sure the harness is adjusted properly and your child is snugly secured. The space between the child and the shoulder harness should be about the thickness of one finger.

To Adjust Shoulder Harness Position

• For larger child, use shoulder harness anchor A and the higher shoulder slots.
• For smaller child, use shoulder harness anchor B and the lowest shoulder slots.
• In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder and waist harnesses are at proper height and length.

To Recline Backrest

Calf Support

To Use Armbar

• The Armbar has 3 positions.


Brake

• Always apply the brake when the stroller is stopped. Push the stroller slightly to ensure the brake is engaged.


To Use Canopy

To Fold Stroller

• Please fold the hood before folding the stroller.
• Please remove the adaptors before folding the stroller.

To Use Rain Cover

• Before using the rain cover, the infant child restraint has to be fastened.
• When using the rain cover, please always check its ventilation.
• When not in use, please check that the rain cover has been cleaned and dried before folding.
• Do not fold the stroller after assembling the rain cover.
• Do not place your child into the stroller assembled with rain cover during hot weather.

To Attach Footmuff

(May Not Be Included)

• Thread the buckle out of the corresponding slots of the footmuff .
• Make sure the harness is adjusted properly and your child is snugly secured. The space between the child and the shoulder harness should be about the thickness of one finger.

Use with Graco SnugLite Infant Child Restraint GC1817

(May Not Be Included)
When using with Graco infant child restraint SnugLite, please refer to the following instructions.

• Adjust the backrest to the lowest position and fold the canopy.
• Need to remove the arm bar before using adaptes.
• If you have any problems about using the infant child restraint, please refer to their own instruction manuals.
• Please do not fold the stroller when the infant child restraint is still attached.

Use with Graco Myavo Carry Cot

When using with Graco carry cot Myavo, please refer to the following instructions.

• If you have any problems about using the carry cot, please refer to their own instruction manuals.
• Please do not use the product when the baby's head is lower than feet after attached carry cot.
• Always use the mattress when using the carry cot.
• Please don't fold stroller when attaching the carry cot.

Detach & Assemble Soft Goods

• Remove arm bar shown as .
• To re-assemble seat soft goods, follow the steps above in reverse

SAFETY INSTRUCTIONS

YOUR CHILD'S SAFETY MAY BE AFFECTED IF YOU DO NOT FOLLOW THESE INSTRUCTIONS.
Always use the restraint system. Safety belts and restraint systems must be used correctly.
Ensure that all the locking devices are engaged before use.
Do not let the child play with this product.
Check that the pram body or car seat attachment devices are correctly engaged before use.
Adult assembly required.
This product is suitable for children up to 22kg or 4 years whichever comes first. It will cause damage to the stroller with an unfitted child.
To prevent a hazardous, unstable condition, do not place more than 4.5kg in the storage basket.
Never leave the child unattended. Always keep child in view while in stroller.
Use the stroller with only one child at a time. Never place purses, shopping bags, parcels or accessory items on the handle or canopy.
Accessories which are not approved by the manufacturer shall not be used. Only replacement parts supplied or recommended by the manufacturer/ distributor shall be used.
Never use accessories, parts or components not produced or approved by the manufacturer. Please read the instruction manual carefully.
Please read all the instructions in the manual before using the product.
Please save instruction manual for future use. Failure to follow these warnings and instructions may result in serious injury or death.
To avoid serious injury from falling or sliding out, always use harness.
Make sure your child's body is clear from the moving parts when adjusting the stroller.
Be sure the stroller is fully open or folded before allowing child near the stroller.
Child may slip into leg openings and be strangled if the harness is not used.
Never use stroller on stairs or escalators.
Keep away from high temperature objects, liquids, and electronics.
Never allow your child to stand on the stroller or sit in the stroller with head toward front of stroller.
Never place the stroller on roads, slopes or dangerous areas.
To avoid strangulation, DO NOT place items with a string around your child's neck, suspend strings from this product, or attach strings to toys.
Any load attached to the handle and/ or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.
DO NOT lift stroller while child is in stroller.
DO NOT use storage basket as a child carrier.
To prevent tipping, never let child climb the stroller. Always lift the child in and out of the stroller.
To avoid finger entrapment, use care when folding and unfolding the stroller.
To avoid injury ensure that the child is kept away when unfolding and folding this product.
To ensure your child's safety, please make sure all parts are assembled and fastened properly before using the stroller.
To avoid strangulation, do make sure your child is clear from the canopy or the rain cover.
Always engage the brakes when parking the stroller.
Discontinue using stroller if it is damaged or broken.
Stroller to be used only at walking speed. This product is not intended for use while jogging.
To avoid suffocation, remove plastic bag and packaging materials before using this product. The plastic bag and packaging materials should then be kept away from babies and children.
This product is not suitable for running or skating.
Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies.
The parking device shall be engaged when placing and removing the children.
For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.
Carry cot shall not be used, as soon as the child is able to sit by himself, roll over and can push itself up on its hands and knees. Maximum weight of the child: 9kg.
No additional mattress shall be added unless recommended by the manufacturer.

CARE & MAINTENANCE

From time to time check your stroller for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed. Use only Graco^® replacement parts.
When using your stroller at the beach, completely clean your stroller afterwards to remove sand and salt from the wheel assemblies.
Discontinue using your stroller should it become damaged or broken.
No bleach, spirit or abrasive cleaners. Allow to dry before storing.
Excessive exposure to the sun could cause premature fading of stroller plastic and fabric.
TO CLEAN Seat Unit PAD: wipe seat unit pad clean with damp cloth.
TO CLEAN Stroller FRAME, use only household soap or detergent and warm water.
