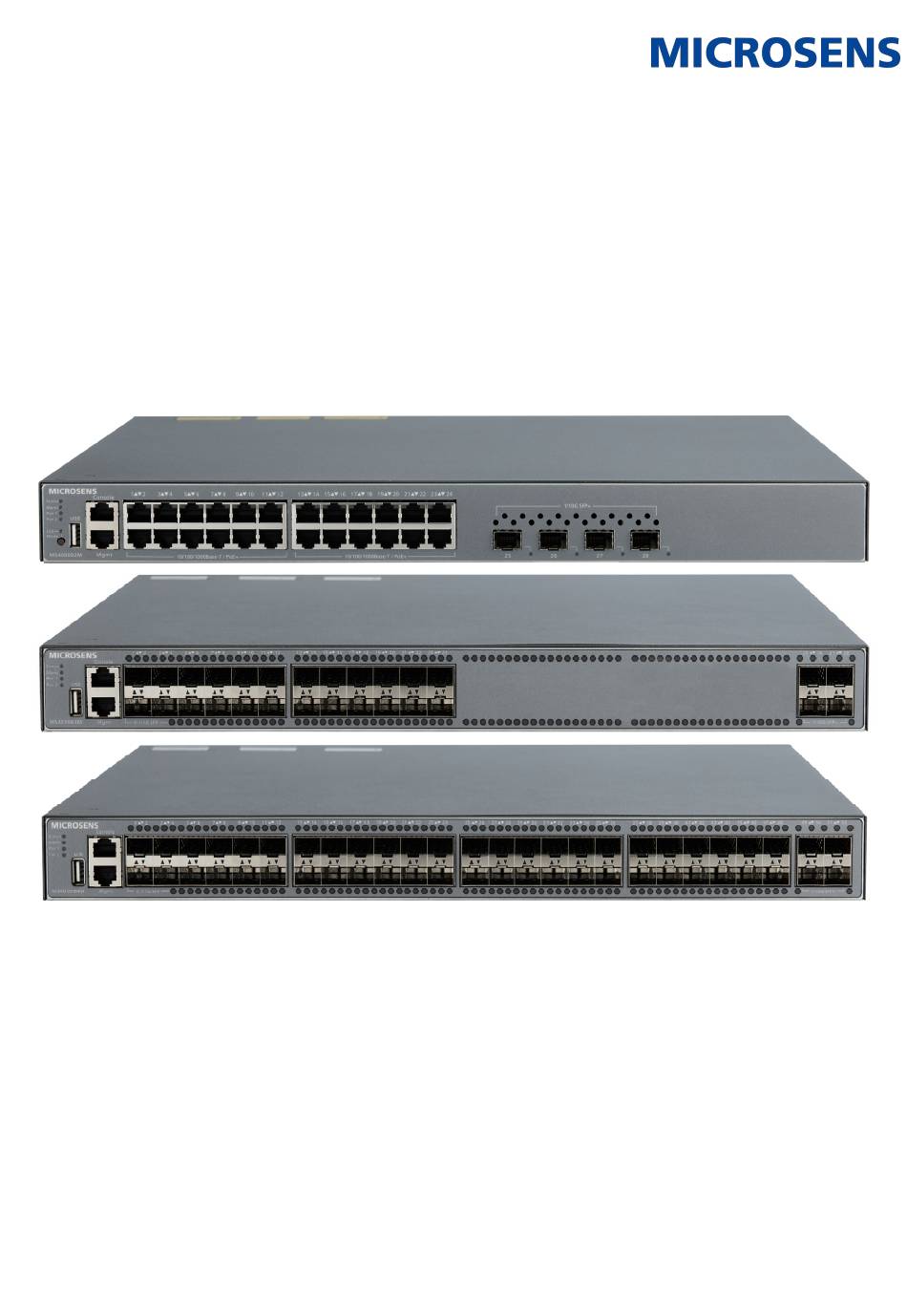

- Page 1 Quick Start Guide Commissioning the MS400992M/MS400993M/MS400994M...
- Page 2 For further documentation, visit the MICROSENS website. Information available on the MICROSENS Website Registered users can find the latest firmware versions as well as further information at www.microsens.com: • Registration: www.microsens.com › Login ◦ Click on the 'Not registered' link.
- Page 3 • Hold the switch carefully and unscrew the screws on the sides of the switch that is firmly secured on to the rack- plate. • Gently unmount and remove. - 2 - © 2025 MICROSENS GmbH & Co. KG, All Rights Reserved...
- Page 4 4. PWR2 Status LED 5. LED Mode Indicator and Button 6. USB A-Port 7. Console Port 8. Management Port 9. 10/100/1000Base-T Ethernet Ports 10. 10GBase-X SFP+ Ports 11. Port LED - 3 - © 2025 MICROSENS GmbH & Co. KG, All Rights Reserved...
- Page 5 (blinking) The port is sending and receiving traffic at 10/100 Mbps 2.2.4. LED Mode Indicator Panel ID Color Status green Switching status LED Mode yellow PoE status - 4 - © 2025 MICROSENS GmbH & Co. KG, All Rights Reserved...
- Page 6 The port is sending and receiving traffic at 1/10 Gbps 2.3. MS400992-AC The MS400992M switch supports the MS400992-AC swappable power module. The MS400992-AC is an AC module pro viding an output voltage of 56 V and an output power of up to 600 W (PoE power: 370 W).
- Page 7 The port is sending and receiving traffic at 1000 Mbps yellow The port has made a successful 10/100 Mbps link yellow (blinking) The port is sending and receiving traffic at 10/100 Mbps - 6 - © 2025 MICROSENS GmbH & Co. KG, All Rights Reserved...
- Page 8 2. Power Supply Module Slot 1 (A filler panel is required if the slot is vacant.) 3. Power Supply Module Slot 2 (A filler panel is required if the slot is vacant.) - 7 - © 2025 MICROSENS GmbH & Co. KG, All Rights Reserved...
- Page 9 12 V and an output power of up to 150 W. The switch includes a single power supply by default. An additional power supply module can be - 8 - © 2025 MICROSENS GmbH & Co. KG, All Rights Reserved...
- Page 10 • www.microsens.com > Support > A license key is required to operate this software. A test licence is available either from your MICROSENS products sales partner or directly from MICROSENS Sales (sales@microsens.de). 6. Firmware Updates and Further Information You have access to current firmware versions and further information once you have registered on our website: •...
- Page 11 All information in this document is provided 'as is' and is subject to change without notice. MICROSENS GmbH & Co. KG disclaims any liability for the correctness, completeness or quality of the information provided, fitness for a particular purpose or ensuing damage.
