MME Motorsport APS-01 Product Manual

Air power source with integrated tank
Hide thumbs

Advertisement

Quick Links

Download this manual
APS-01
APS-01-2VLV
APS-01-FAN
Air Power Source With Integrated Tank
PRODUCT MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the APS-01 and is the answer not in the manual?

Questions and answers

Related Manuals for MME Motorsport APS-01

Summary of Contents for MME Motorsport APS-01

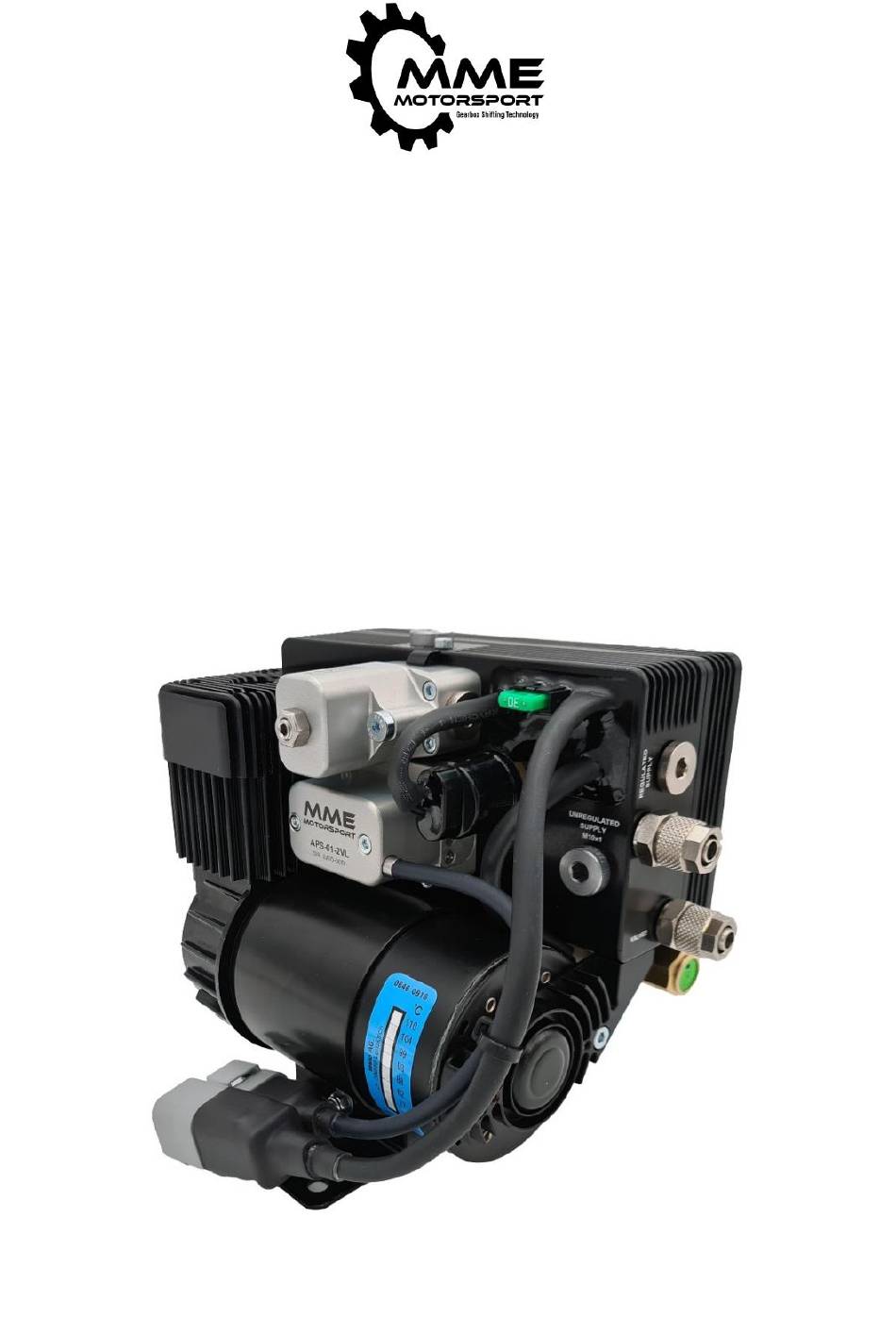

  • Page 1 APS-01 APS-01-2VLV APS-01-FAN Air Power Source With Integrated Tank PRODUCT MANUAL...
  • Page 2 MME Motorsport – Quality, Performance and Care At MME Motorsport, we take great pride in the quality and reputation of our products. We are delighted that you use them, as they are the result of our in-house development, analysis, manufacturing, and testing. To ensure optimal performance, it is essential to dedicate time to regular and careful maintenance.
  • Page 3 Can function as a fully standalone unit or be controlled externally (an additional pressure sensor can be added) • Upgradeable with two valves, eliminating the need for an external block (APS-01-2VLV) • Fan upgrade available for high-temperature environments or high air demand applications (APS-01-FAN) •...
  • Page 4 APS-01 / APS-01-2VLV / APS-01-FAN Air Power Source With Integrated Tank PRODUCT MANUAL APS-01 - Included in the kit • Air power source (1) • Mounting plate with rubber bumpers and screws (2) • Connector (AT06-6S), pins (AT62-14-0122 and AT62-16-0122) and lock (AW6S) (3) •...
  • Page 5 APS-01 - Connecting • Connect air pipe (Ø 8 mm pneumatic pipe). Swap fitting with 90deg if needed (1) • Connect 6 pin connector (2). See APS-01 – Electrical connection for pinout. • Adjusting pressure (3): - Unscrew the locking hex nut.
  • Page 6 APS-01 / APS-01-2VLV / APS-01-FAN Air Power Source With Integrated Tank PRODUCT MANUAL APS-01 - Electrical connection APS can run as a standalone unit or an externally controlled device. Standalone operation In this mode, APS will automatically maintain pressure in the reservoir between 8.5 bar and 9.5 bar. This pressure is fixed and cannot be changed.
  • Page 7 Safety overload valve Compressor fuse (mini blade 30A) 2 port valve block (APS-01-2VLV) cover 2 port valve block (APS-01-2VLV) output ports. This is where you connect your valves if 2 port valve block (APS-01-2VLV) is installed. They come plugged by default.
  • Page 8 APS-01 / APS-01-2VLV / APS-01-FAN Air Power Source With Integrated Tank PRODUCT MANUAL APS-01 – Technical drawing MME Motorsport Revision www.mme-motorsport.com 2025-02-17...
  • Page 9 APS-01 – Product care and maintenance At MME Motorsport, we take great pride in the quality and reputation of our products. We are delighted that you use them, as they are the result of our in-house development, analysis, manufacturing, and testing. To ensure optimal performance, it is essential to dedicate time to regular and careful maintenance.
  • Page 10 Operating presure 5 to 9 Bar Voltage 12 V Current Consumption 500 mA per valve APS-01-2VLV - Included in the kit • Valves with mounting screws (1) • Connector (ATM06-3S), pins (AT62-20-0122) and lock (AWM-3S) (2) • Straight and 90deg fittings (3)
  • Page 11 APS-01 / APS-01-2VLV / APS-01-FAN Air Power Source With Integrated Tank PRODUCT MANUAL APS-01-02VLV – Installation • Remove the valve cover plate (1) from the APS. Use the M3 hole to assist in removing the plate. • Remove the regulated supply fitting and valve port plugs (2) •...
  • Page 12 APS-01 / APS-01-2VLV / APS-01-FAN Air Power Source With Integrated Tank PRODUCT MANUAL APS-01-2VLV – Electrical connection PIN: NAME: MIN WIRE SIZE: 22 AWG (0.35 mm2) Valve 1 (GND) 22 AWG (0.35 mm2) Valve 2 (GND) 22 AWG (0.35 mm2) Valves are activated by connecting ground to pin 2 and/or 3.
  • Page 13 APS-01 / APS-01-2VLV / APS-01-FAN Air Power Source With Integrated Tank PRODUCT MANUAL APS-01-2VLV disassembly and cleaning Pneumatic valves can be cleaned of debris and lubricated according to the maintenance plan to ensure smooth operation. Before cleaning, you must first access them on the compressor. Refer to the detailed instructions on how to access the valves.
  • Page 14 APS-01 / APS-01-2VLV / APS-01-FAN Air Power Source With Integrated Tank PRODUCT MANUAL • Reattach the valve cover, ensuring the O-ring is properly in place on the cover. Reattach the green O-rings on the screws before reassembly. • Mount the valves back to the air power source. Refer to the mounting instructions.
  • Page 15 Weight 55 g Operating temperature 0 ... 80°C Voltage 12 V Current Consumption 100 mA APS-01-FAN - Included in the kit • Fan with mounting screws (1) • Connector (ATM06-2S), pins (AT62-20-0122) and lock (AWM-2S) (2) MME Motorsport Revision www.mme-motorsport.com...
  • Page 16 APS-01 / APS-01-2VLV / APS-01-FAN Air Power Source With Integrated Tank PRODUCT MANUAL APS-01-FAN – Installation • Mount the fan (1) using the provided screws. Ensure the fan is correctly oriented for proper rotation during installation. Tighten the screws to a maximum torque of 1 Nm.
