MME Motorsport ARBT-01-2L Manual

Air compressor kit
Hide thumbs

Advertisement

Table of Contents

Features

High performance, top of the line 12V air compressor
2 liter or 3 liter accumulator (bottle)
Pressure switch (8.5 bar ON, 9.5 bar OFF)
Low pressure warning switch
Overload safety valve (pressure relief)
Pressure regulator (2 - 8 bar)
Integrated relay with fuse
Air Compressor Kit
Air Compressor Kit
MME Motorsport
www.mme-motorsport.com
ARBT-01-2L/3L
COMP-01-12V-14BAR
Revision 2019-06-21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARBT-01-2L and is the answer not in the manual?

Questions and answers

Related Manuals for MME Motorsport ARBT-01-2L

Summary of Contents for MME Motorsport ARBT-01-2L

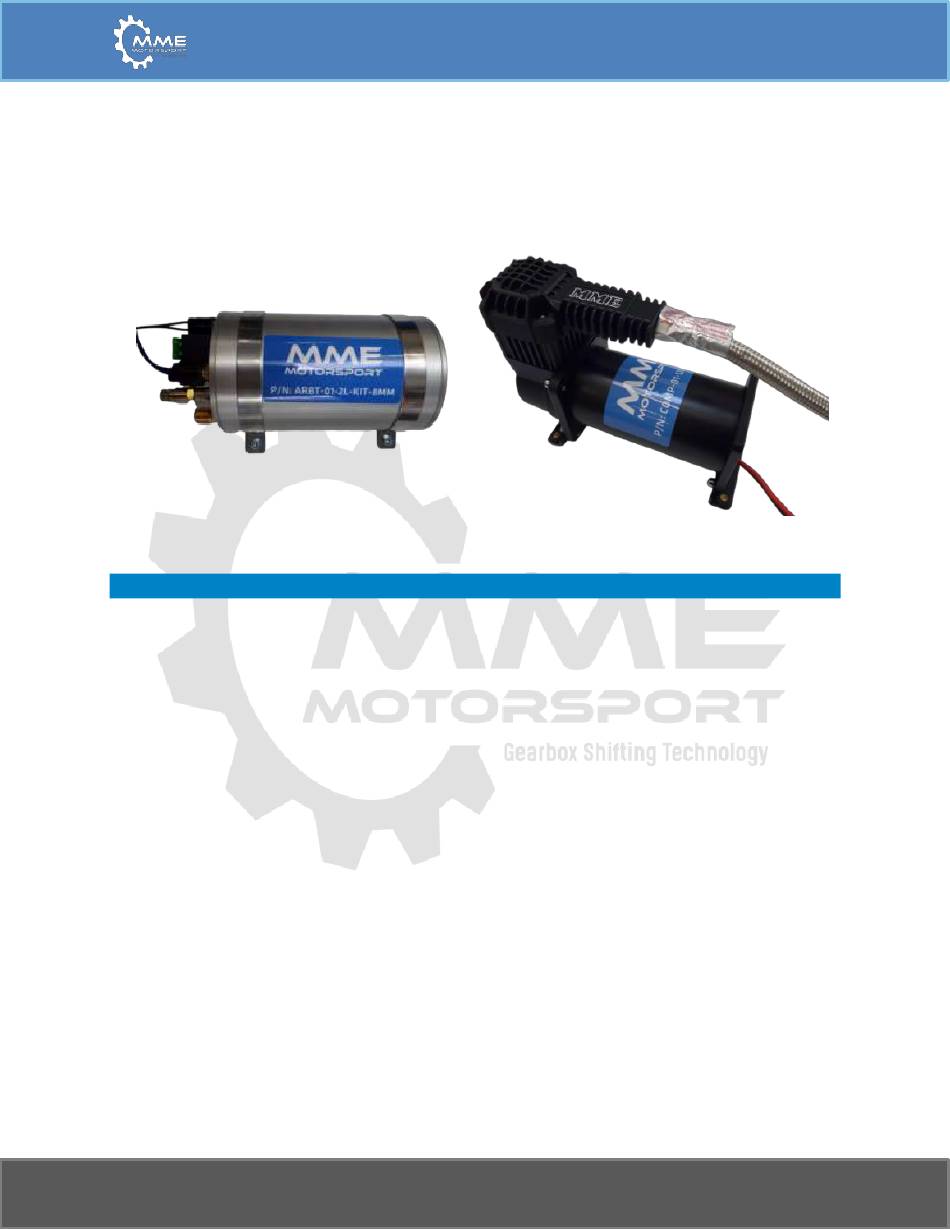

  • Page 1 ARBT-01-2L/3L Air Compressor Kit COMP-01-12V-14BAR Air Compressor Kit Features  High performance, top of the line 12V air compressor  2 liter or 3 liter accumulator (bottle)  Pressure switch (8.5 bar ON, 9.5 bar OFF)  Low pressure warning switch ...
  • Page 2 ARBT-01-2L/3L Air Compressor Kit COMP-01-12V-14BAR Technical specifications Air bottle 3L Air bottle 2L 145 x 130 x 360 mm Dimensions L x W x H 145 x 130 x 270 m 2300g Weight 2060g Voltage -20 ... 80°C Operating temperature -20 ...
  • Page 3 ARBT-01-2L/3L Air Compressor Kit COMP-01-12V-14BAR Safety rules - Before assembling please read general rules. You received air bottle and compressor which must be assembled and connected together. All parts shall not be exposed to heat and water. - Never allow children to operate this compressor kit. Close supervision is necessary when this compressor is being used near children.
  • Page 4 ARBT-01-2L/3L Air Compressor Kit COMP-01-12V-14BAR Assembling The installation of air bottle in the car must be cross direction of driving. In case of accident we prevent air bottle from slipping from mounting clamps. To compressor we attach air filter which can be mounted directly or away from compressor. Air filter should be in dry area away from heat the elements.
  • Page 5 ARBT-01-2L/3L Air Compressor Kit COMP-01-12V-14BAR Wiring diagram MME Motorsport Revision 2019-06-21 www.mme-motorsport.com...
  • Page 6 ARBT-01-2L/3L Air Compressor Kit COMP-01-12V-14BAR Technical drawing MME Motorsport Revision 2019-06-21 www.mme-motorsport.com...
  • Page 7 6. All repairs should be performed by Manufacturer. 7. Once per year air bottle should be opened and drained of excess water. Ordering Compressor: COMP-01-12V-14BAR Air Bottle 2L: ARBT-01-2L-KIT-8MM Air Bottle 3L: ARBT-01-3L-KIT-8MM MME Motorsport Revision 2019-06-21 www.mme-motorsport.com...

This manual is also suitable for:

Arbt-01-3lArbt-01-2l-kit-8mmArbt-01-3l-kit-8mmComp-01-12v-14bar
