Confidential

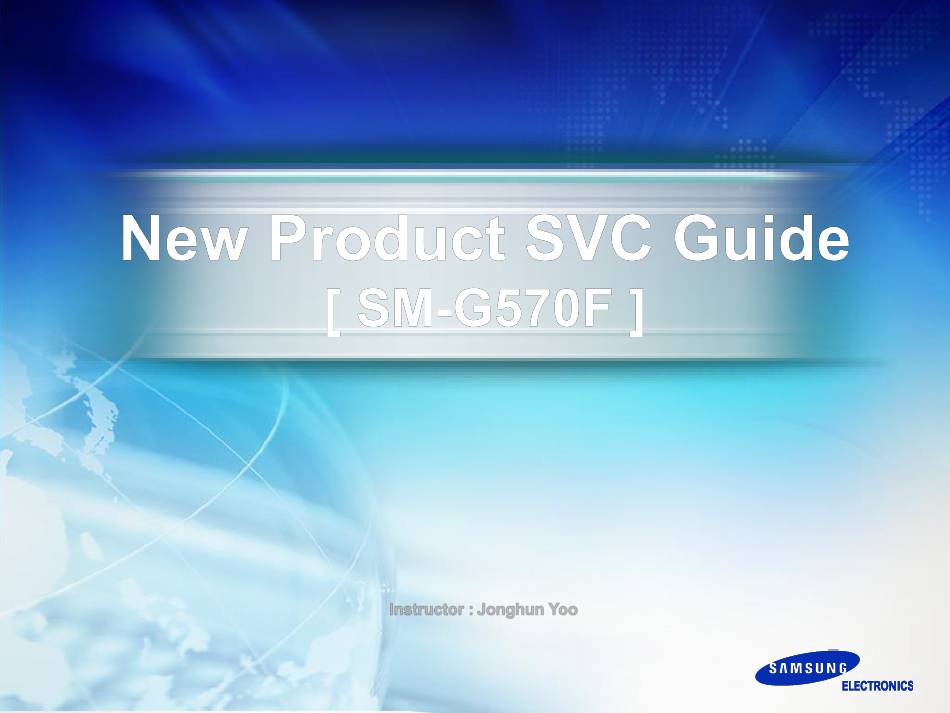

New Product SVC Guide
[ SM-G570F ]
Instructor : Jonghun Yoo
This material is a property of Samsung Electronics Co., Ltd. Any unauthorized use of this material can be punished under
applicable International and/or domestic law.
- This document cannot be used without Samsung's Authorization -
Confidential

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-G570F and is the answer not in the manual?

Questions and answers

Related Manuals for Samsung SM-G570F

Summary of Contents for Samsung SM-G570F

  • Page 1 [ SM-G570F ] Instructor : Jonghun Yoo This material is a property of Samsung Electronics Co., Ltd. Any unauthorized use of this material can be punished under applicable International and/or domestic law. - This document cannot be used without Samsung’s Authorization -...
  • Page 2 Samsung reserves the right to make changes to this guide and the product described herein, at anytime, without obligation on Samsung Electronics to provide notification of such change.

  • Page 3: Table Of Contents

    1. Specification of SM-G570F (Galaxy J5 Prime) 2. H/W 2-1. Disassembly & Assembly 2-2. Troubleshooting 2-3. R/F Calibration 3. S/W 3-1. S/W Download 3-2. Key Features 4. SVC Technical Information - This document cannot be used without Samsung’s Authorization - Confidential...

  • Page 4: Specification

    Bluetooth 4.1 + LE, WIFI 802.11 b/g/n, USB2.0 Battery & GPS 2400mAh A-GPS & GLONASS Micro SD & OS Up to 128GB Android V6.0.1(M.OS) Remarks New Pocket Type : None Water Resistance : None - This document cannot be used without Samsung’s Authorization - Confidential...

  • Page 5: Disassembly & Assembly

    Disassembly & Reassembly - This document cannot be used without Samsung’s Authorization - Confidential...
  • Page 6 Check RF coaxial cable is connected well, It is related with LTE High band (B7, B38, B40) Be careful, when you detach LCD module. It can be damaged easily. - This document cannot be used without Samsung’s Authorization - Confidential...

  • Page 7: Parts Layout

    Parts Layout Rear Case FRONT 8M CAM SUB ANT Receiver REAR 13M CAN SPK Module VOLUME KEY FPCB POWER KEY FPCB BETTERY COAXIAL CABLE MAIN ANTENNA MOTOR - This document cannot be used without Samsung’s Authorization - Confidential...
  • Page 8 FINGER PRINT CONNECTOR PAM1000 MMMB PA (HB/MB) RFS1000 TXM1000 TX Module ANT CABLE CONNECTOR (LB/MB) U5000 TOUCH KEY IC CN1000 ANT CABLE CONNECTOR (HB) CON2007 CONTACT HEA5000 EARJACK CONNECTOR - This document cannot be used without Samsung’s Authorization - Confidential...
  • Page 9 U2005 BT/WIFI IC SOC6000 LCD CON U5001 PROXY UME5000 EMMC REAR 13M CAM U3000 AP CN6000 SIM1 SIM6000 SIM2 CN5004, CN5005 Motor contact U4001 LOAD SW IFC4000 IF CON - This document cannot be used without Samsung’s Authorization - Confidential...

  • Page 10: Troubleshooting

    Check the voltage of C4030(=PMIC Output) If not the correct value Replace the U4000(=PMIC) ** Usage guide of the Power & Current test jig has been uploaded at GSPN. (Power & Current Tester_Rev4_150716.pdf) - This document cannot be used without Samsung’s Authorization - Confidential...
  • Page 11 No Power (cont’) Step Check point Result value Defect point 32.7MHz Main chip (U3000) Check the frequency of OSC4000 If not the correct value X-TAL (OSC4000) OSC4000 C4032 C4028 U4000 - This document cannot be used without Samsung’s Authorization - Confidential...

  • Page 12: S/W

    Check the voltage of U5001 (eMMC) If not the correct value Replace the UME5000(eMMC) ** Usage guide of the Power & Current test jig has been uploaded at GSPN. (Power & Current Tester_Rev4_150716.pdf) - This document cannot be used without Samsung’s Authorization - Confidential...
  • Page 13 Check the voltage of C4018 If not the correct value Replace the U4003(=MUIC) ** Usage guide of the Power & Current test jig has been uploaded at GSPN. (Power & Current Tester_Rev4_150716.pdf) - This document cannot be used without Samsung’s Authorization - Confidential...
  • Page 14 Troubleshooting No Charging U4000 C5000 C4018 U3000 U4003 L4005 - This document cannot be used without Samsung’s Authorization - Confidential...
  • Page 15 U1006 RFIC PAM1000, U1004 3G PAM U1006 RFIC PAM1000, U1004 LTE PAM A type of failure U1006 RFIC DUPLEXER, U1006 RF IC DUPLEXER, U1006 RF IC DUPLEXER, U1006 RF IC - This document cannot be used without Samsung’s Authorization - Confidential...
  • Page 16 PAM1000 MMMB PA(MB/HB) Call Problem CHECK SETTINGS U1006 RFIC U1004 MMMB PA(LB) TXM1000 TX Module DEBUG SCREEN STATUS Same value compare to normal device. Check RF coaxial cable is connected well - This document cannot be used without Samsung’s Authorization - Confidential...
  • Page 17 Check the status visually(crack, missing, Abnormal RF components. Corrosion..etc) of RF components. (compare to normal PBA) CP(Call Processor) Normal U1006 Transceiver U3000 TXM1000 TX Module U1004, PAM1000 MMMB PA - This document cannot be used without Samsung’s Authorization - Confidential...
  • Page 18 PBA Notice : It should be measured when the No signal U4000(PMIC/CODEC) speaker path is activated on. Replace the Assy case-rear to check Solved Assembly error mechanical problem - This document cannot be used without Samsung’s Authorization - Confidential...
  • Page 19 Troubleshooting Sound Problem - This document cannot be used without Samsung’s Authorization - Confidential...
  • Page 20 Check the voltage of C6002 = 1.8V If not the correct value U4000(PMIC) Notice. It should be measured when the display is CC6002=1.8V Go to the next step activated on REPLACE LCD ASSY - This document cannot be used without Samsung’s Authorization - Confidential...
  • Page 21 Troubleshooting Display Problem C6002 U6001 SOC6000 U6014 U4000 - This document cannot be used without Samsung’s Authorization - Confidential...
  • Page 22 1 of each GH81-11962D / GH81-11962V (Divider to phone) RF cable GH81-11962B (Instrument to divider) Anyway JIG Power Supply E3632A RF Equipment CMW500 GH81 – 10952A IF cable Connection Diagram - This document cannot be used without Samsung’s Authorization - Confidential...

  • Page 23: S/W Download

    Odin. 2. Select each 4 S/W files. (BL, AP, CP, CSC) 3. Press the start button in the Odin. 4. Automatically reboot the phone when the downloading is completed. - This document cannot be used without Samsung’s Authorization - Confidential...

  • Page 24: Key Features

    Ultra Power Saving Mode changes your screen to black and white and shuts down all unnecessary features to dramatically minimize battery consumption. Entering Path : Settings → Battery → Ultra power saving mode - This document cannot be used without Samsung’s Authorization - Confidential...

  • Page 25: Smart Manager

    My Knox is also available to download for even more security. To boost your device’s speed and performance in a single click, use “Clean All.” Entering Path : Settings → Smart Manager - This document cannot be used without Samsung’s Authorization - Confidential...

  • Page 26: Svc Technical Information

    GH81-12833A OCTA Disass’y Holder GH81-12119A Double Sided Tape GH81-12126A Glass Absorber GH81-11902D Pressing JIG Body GH81-11903A TSP tape Attaching JIG GH81-11905A Pressing Pad(for Battery) GH81-12694A Pressing Pad(for OCTA) GH81-13537W - This document cannot be used without Samsung’s Authorization - Confidential...
  • Page 27 No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics.
