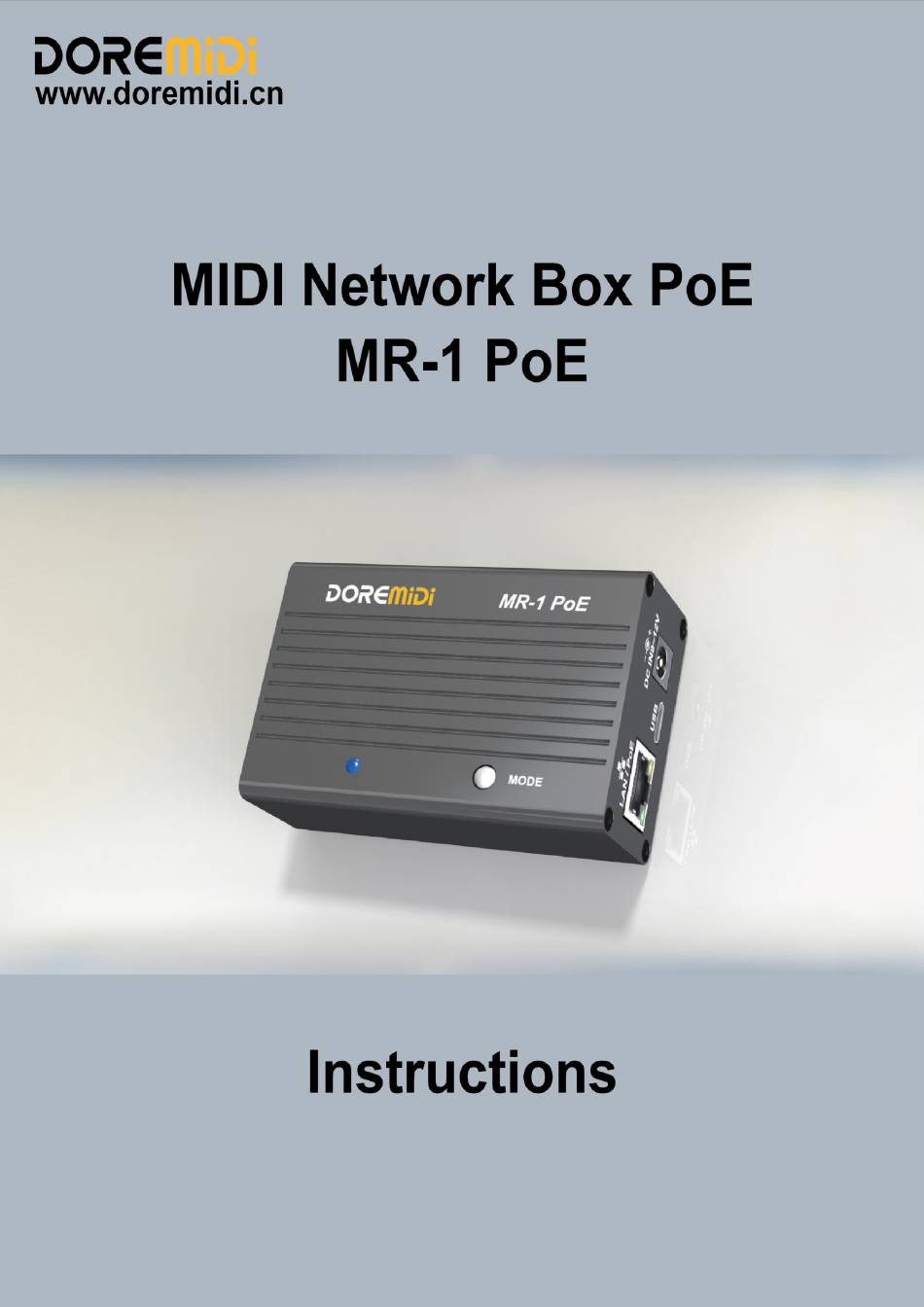

- Page 2 MIDI Network Box PoE (MR-1 PoE) is a RTP-MIDI gateway with PoE function designed by DOREMiDi. MR-1 PoE has PoE function and can be powered by a gateway with PoE function. MR-1 PoE can connect MIDI devices to the LAN through RTP-MIDI in the LAN, and complete low-latency and high-stability MIDI communication with computers and other RTP-MIDI devices.
- Page 3 2. Connect MIDI devices: Use a 5-pin MIDI cable to connect the MIDI IN of the MIDI device to the MIDI OUT of the MR-1 PoE, and connect the MIDI OUT of the MIDI device to the MIDI IN of the MR-1 PoE.
- Page 4 ②When an RTP-MIDI device (such as a computer) in the local area network sends a SysEx message to the MR-1 PoE device, the maximum data size of each packet must not exceed 10K bytes.) 5.
- Page 5 DHCP function A router can assign an IP address to the product. 6. Introduction of typical application cases 1. Application 1: Before the computer is not needed, MR-1 PoE/MR-1 Pro/UR-1 Pro can connect and communicate through the network, set one product of them as the “Initiator”, and the...
- Page 6 5 initiators, as shown in the figure: 3. Application 3: After configuring the MR-1 PoE/MR-1 Pro/UR-1 Pro as a static IP, you can connect the MIDI device to the computer via an Ethernet cable, or connect two MIDI devices.
- Page 7 Question: In the listener mode, the computer does not find the MR-1 PoE. Answer: Please make sure that the computer and MR-1 PoE are in the same local area network. If it is not resolved, please refer to "DOREMiDi Network MIDI Configuration Manual.pdf" at www.doremidi.cn.
