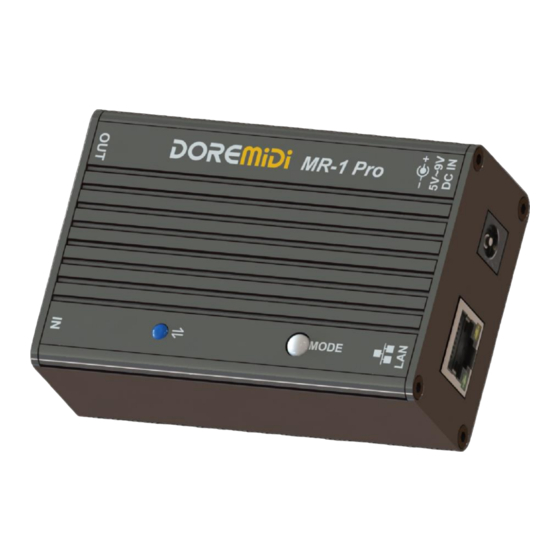

- Page 2 1. Introduction MIDI Network Box Pro (MR-1 Pro) is an RTP-MIDI-based gateway designed by DOREMiDi, which can be used in a local area network to connect multiple MIDI devices and computers to each other, achieving low latency and high stability MIDI communication.
- Page 3 The MR-1 Pro can be discovered and connected through a computer or other terminal. The indicator light flashes when it is not connected, and the indicator light is always on after the connection is successful. refer to "DOREMiDi Network MIDI Configuration Manual.pdf" at www.doremidi.cn...
- Page 4 3. Step 3: Use to open "SysEx..." → enter the IP setting command → click "Send/Receive Syses" to send the setting command Set the IP SysEx format: the data header and tail are fixed, and the data area is the IP address. For example, set the IP address to "192.168.1.112", as shown in the figure: F0 00 21 5E 0E 40 01 09 02 01 06 08 00 00 01 01 01 02 F7 Data Tail...
- Page 5 If you forget the IP address set by the product, you can press and hold the product button for more than 10 seconds until the red light and blue light flash alternately, indicating that the factory settings have been successfully restored. After the factory settings, the product will automatically obtain an IP address and use the DHCP function A router can assign an IP address to the product.
- Page 6 2. Application 2: One listener can communicate with multiple initiators at the same time, and can support up to 5 initiators, as shown in the figure: 3. Application 3: After configuring the MR-1 Pro/UR-1 Pro as a static IP, you can connect the MIDI device to the computer via an Ethernet cable, or connect two MIDI devices.
- Page 7 Question: In the initiator mode, the MR-1 Pro cannot connect to RTP MIDI devices. Answer: Please make sure that it is the RTP MIDI device of DOREMiDi. In addition, please make sure that the RTP MIDI device and MR-1 Pro are in the same local area network.
