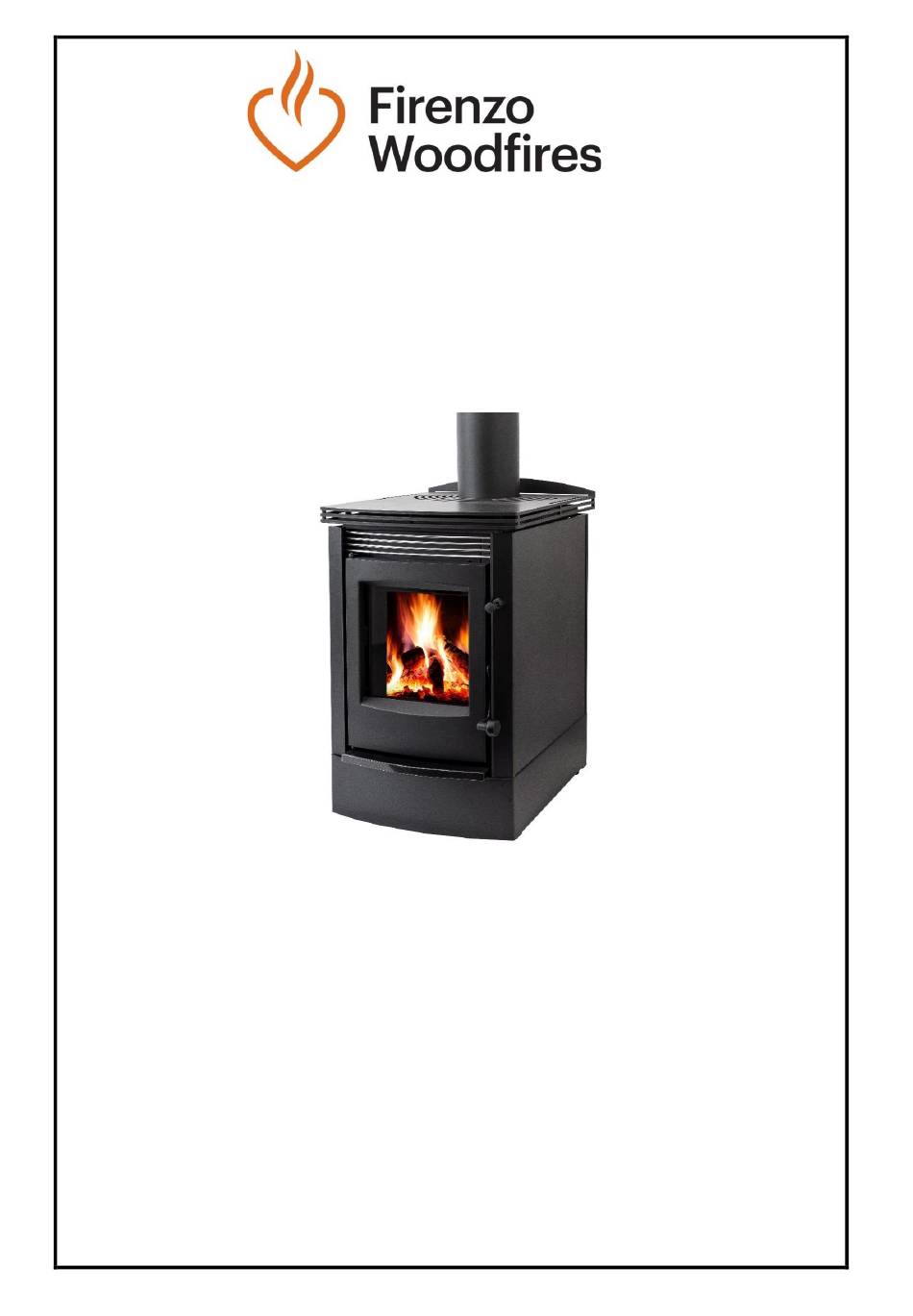

Please read this booklet and keep for future reference for the safe installation and operation of your:
Models:
AG Dry
AG Wet
RU Dry
RU Wet
INSTALLATION AND OPERATION GUIDE
VIKING AG DRY AUTHORISATION NUMBER 102465
VIKING AG WET AUTHORISATION NUMBER 102472
AG: Clean Air approved. Meets ECAN Standards of 0.9g and 68% efficiency.
RU: RURAL ONLY For properties of 2 hectares or more in areas not under an air quality control scheme.
This Woodfire must be installed by someone competent to do so, Firenzo recommends the use of a NZ Home
Heating Association, Solid Fuel Appliance Installation Technician (SFAIT), or other suitably qualified person. The
Woodfire and flue system must be installed in accordance with AS/NZS2918. All installations must be in
accordance with these instructions. Consult with the building authority having jurisdiction to determine the need
for a permit prior to commencing the installation. Failure to follow these instructions may also void your
Woodfire insurance and warranty.
This Woodfire has been tested to Appendix E & B of the joint Australia/New Zealand Standard 2918:2001.
Viking AG Dry/Wet and RU Dry/Wet Installation – 2024
Viking
Advertisement
Table of Contents
Related Manuals for Firenzo Woodfires Viking AG Dry
Summary of Contents for Firenzo Woodfires Viking AG Dry
- Page 1 Failure to follow these instructions may also void your Woodfire insurance and warranty. This Woodfire has been tested to Appendix E & B of the joint Australia/New Zealand Standard 2918:2001. Viking AG Dry/Wet and RU Dry/Wet Installation – 2024...
-
Page 2: Table Of Contents
CONTENTS WARNINGS ..............................3 INSTALLATION RESPONSIBILITIES ......................4 FLOOR PROTECTOR REQUIREMENTS ......................4 INSTALLATION CLEARANCES ........................5 ASSEMBLY INSTRUCTIONS ......................... 6 WETBACK ..............................7 FREESTANDING FLUE SYSTEM ........................8 FLUE SYSTEM MINIMUM HEIGHT ......................9 OUTSIDE AIR KIT INSTALLATION ......................10 9 OPERATING INSTRUCTIONS ........................ -
Page 3: Warnings
WARNINGS This Woodfire should be maintained and always operated in accordance with these instructions. If this Woodfire is incorrectly installed a house fire may result. For your safety follow the installation instructions carefully. Do NOT connect the Woodfire to a chimney serving another fire. Although the exterior of the Woodfire may appear cool, contact with the unit may cause burns, warn children and others of the possibility of injury should they touch the Woodfire. -
Page 4: Installation Responsibilities
INSTALLATION RESPONSIBILITIES Warning: The Woodfire and Flue system shall be installed in accordance with AS/NZS 2918 and the appropriate requirements of the relevant building code or codes. Any modification of the Woodfire that has not been approved in writing by the testing authority is considered to be in breach of the approval granted for compliance with AS/NZS 4013. -
Page 5: Installation Clearances
INSTALLATION CLEARANCES Wetback Model Only Internal Firebox size: Height 340mm—Width 320mm—Depth 520mm Flue Size: 150mm Heating Area: estimate 200sqm CLEARANCES A (mm) 100 320 300 120 50 260 590 350 780 1040 1280 1060 780 410 P a g e... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Remove all outer packaging and timber. Remove slotted steel top plates from rear of Woodfire and cast-iron top plates from inside the Woodfire and carefully set aside, taking care not to scratch or damage the paint finishes. Position Woodfire onto floor protector ensuring it complies with the clearances as shown on page DO NOT ATTEMPT TO LIFT THE WOODFIRE BY THE GRANITE ASH LIP. -
Page 7: Wetback
WETBACK The Viking AG Wet and Viking RU Wet are fitted with a wetback to supplement the hot water system. Warning: Do not connect to an unvented hot water system. DO NOT USE THIS WOODFIRE WITHOUT WATER RUNNING THROUGH THE WETBACK. Install in accordance with AS 3500.4.1 or NZS 4603 and the appropriate requirements of the relevant building code or codes. -
Page 8: Freestanding Flue System
FREESTANDING FLUE SYSTEM Position Woodfire on floor protector ensuring all clearances are correct as indicated on page 5. Once the location is confirmed, the Woodfire and floor protector shall be fixed to the floor itself. Extend a plumb line from the centre of the flue spigot to the ceiling. -
Page 9: Flue System Minimum Height
FLUE SYSTEM MINIMUM HEIGHT NOTES: The flue shall extend not less than 4.6m above the top of the floor protector. The flue cowl must be at least 600mm above the highest point of the roof if within 3 metres of it, or 1 metre above the roof penetration if more than 3 metres from the ridge. -
Page 10: Outside Air Kit Installation
OUTSIDE AIR KIT INSTALLATION For optimal performance of your Woodfire, we recommend installing an Outside Air Kit. Efficient combustion requires heat, oxygen, and fuel. In modern, well-insulated homes with double glazing and extraction fans, the Woodfire may experience reduced oxygen supply, making it harder to ignite and potentially causing smoke. - Page 11 The part of the Duct that goes through the wall is 90mm wide and 70mm deep. All work carried out must meet the New Zealand Building Code or Codes. 11 | P a g e...
-
Page 12: Operating Instructions
9 OPERATING INSTRUCTIONS PLEASE READ CAREFULLY BEFORE PROCEEDING ANY FURTHER. FOR FUTURE REFERENCE, PLEASE RECORD YOUR SERIAL NUMBER ON PAGE 17 AND KEEP THIS BOOK IN A SAFE PLACE. FIRST BURN: On the INITIAL LIGHTING ONLY, the high temperature paint used on your Woodfire will give off smoke and odour for several hours. -
Page 13: Re-Loading After An Extended Burn Time
RE-LOADING AFTER AN EXTENDED BURN TIME At the end of an extended burn, re-establish the fire by adding a few small split logs, adjust the Air Control to ‘High’ and allow the firebox temperature to build up before adding the balance. The addition of large quantities of cold fuel to a low fire will reduce the firebox temperature dramatically and this may result in ‘losing’... -
Page 14: Maintenance
10 MAINTENANCE SECONDARY CHAMBER: The baffles (horizontal bricks in the ceiling of firebox) are critical to the Woodfire’s performance. They should be checked annually during flue cleaning and replaced if signs of deterioration are evident. Lift the steel top plate and then the front cast top plate from the Woodfire and remove. Remove any soot and creosote build-up from the secondary chamber. -
Page 15: Fire Bricks
FIRE BRICKS: The internal fire bricks on the sides and base of the firebox can crack in extreme heat. However, they are safe to leave as is until they start to crumble, in which case they should be replaced. FIRE ROPE: As part of the general maintenance, the door rope and glass tape should be checked and replaced regularly. -
Page 16: Warranties
1993. To the fullest extent permitted at law, no other warranties or guarantees, express or implied, are assumed or given by Firenzo Woodfires to any person with respect to the quality, merchantability, description or fitness for purpose or use of Firenzo Woodfires or their component parts and materials. - Page 17 Firenzo Woodfires or its designated accredited agent (please see paragraph 15) will replace any component parts and materials covered by the warranties or the entire Firenzo Woodfire, at its discretion, where Firenzo Woodfires is reasonably satisfied a defect is solely due to faulty Firenzo Woodfires workmanship or materials.
- Page 18 This document is intended to form part of (and may be expressly referenced in) the terms of sale and purchase by every original New Zealand consumer of a Firenzo Woodfire. For any questions about the warranties or this document please contact Firenzo Woodfires at: 98 Niven Street, Onekawa, Napier...
- Page 19 The heart of a warm home A Legacy of Excellence At Firenzo, we take pride in our heritage as a New Zealand owned family business dedicated to producing premium woodfires of unparalleled quality. For over four decades, we have passionately designed and crafted woodfires that have become the heart of homes across New Zealand.
- Page 20 Lady Kitchener Napier Viking Vision Stella Topaz INSERT MODELS Flush Kompact Topaz 98 Niven Street PO Box 3231 HB Mail Centre Napier 4142 Phone: 06 843 8260 Website: www.firenzo.co.nz email: firenzo@firenzo.co.nz Viking AG Dry/Wet and RU Dry/Wet Installation – 2024...
