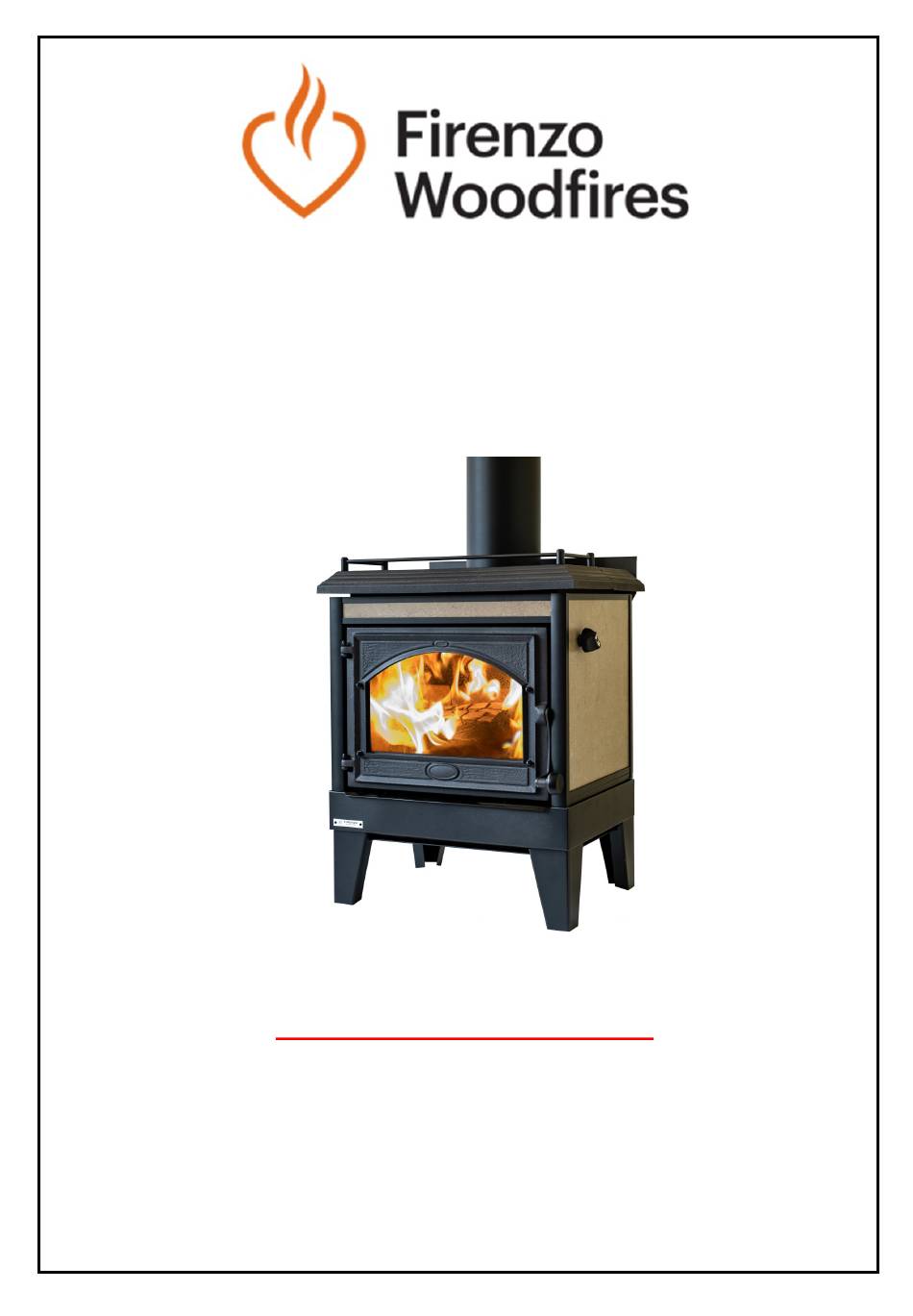

Please read this booklet and keep for future reference for the safe installation of your:
INSTALLATION AND OPERATION GUIDE
AG (Air Guard) stands for Clean Air. This AG Fire can be installed on properties of less than 2 hectares
of land and meets with ECAN standards of 1g and 76% efficiency.
This Fire must be installed by someone competent to do so, Firenzo recommend the use of a NZ Home
Heating Association, solid fuel appliance installation technician (SFAIT), or other suitably qualified
person. The Fire and Flue System must be installed in accordance with AS/NZS2918. All installations
must be in accordance with these instructions. Consult with the building authority having jurisdiction to
determine the need for a permit prior to commencing the installation. Failure to follow these instructions
may also void your fire insurance and warranty.
This Fire has been tested to Appendix E & B of the joint Australia/New Zealand Standard 2918:2001
This Fire conforms with ECAN requirements.
Bronte AG Installation—April 2024
Bronte AG
AUTHORISATION NUMBER 072377
Advertisement
Table of Contents
Related Manuals for Firenzo Woodfires Bronte AG
Summary of Contents for Firenzo Woodfires Bronte AG
- Page 1 Failure to follow these instructions may also void your fire insurance and warranty. This Fire has been tested to Appendix E & B of the joint Australia/New Zealand Standard 2918:2001 This Fire conforms with ECAN requirements. Bronte AG Installation—April 2024...
- Page 2 Outside Air Kit Installation Operating Instructions Operating Instructions 8 & 9 Operating Instructions Operating Instructions Warranties Warranties Warranties Under our policy of continuous product improvement, Firenzo reserves the right to alter specifications or product from that shown. Bronte AG Installation—April 2024...
- Page 3 This Fire should be maintained and operated at all times in accordance with these instructions. The Bronte AG is tested to N.Z. Standards AS/NZS 2918:2001. If this Fire is incorrectly installed a house fire may result. For your safety follow the installation instructions carefully.
-
Page 4: Installation Responsibilities
The standard front clearance from the front of the door glass can be reduced by increasing the INSULATED floor protector height, as tabled below: FLOOR PROTECTOR HEIGHT F/P FOR PEDESTAL OR DRAWER/ BASE FLOOR PROTECTOR HEIGHT F/P FOR LEG AND PLATFORM- BASE Bronte AG Installation—April 2024... -
Page 5: Installation Clearances
4. INSTALLATION CLEARANCES When installing the Bronte AG on a leg base ADD 70mm to vertical measurements shown here: Flue Size 150mm Internal Firebox Size Height 330mm Width 410mm Depth 330mm Clearances are in accordance with the requirements of AS/NZS 2918:2001 And are to a heat sensitive material. - Page 6 12. Fit Door Knob as shown. 13. Fit the control knob- place the flat on the knob to the flat on the Air control shaft situated on the right hand side of the fire. Press home firmly. Bronte AG Installation—April 2024...
- Page 7 FITTING SEISMIC RESTRAINT BRACKETS ON BRONTE AG PEDESTAL OR DRAWER BASE Remove bolts at rear of fire box Fit Seismic Restraint brackets Secure both the floor protector and the fire to the floor using 6mm Dyna Bolts or similar. PLATFORM BASE Remove bolts at rear of fire box.
- Page 8 CAUTION: Mixing of Fire or Flue system components from different sources or modifying the dimensional specifications of components ie using more than 1 metre of Flue may result in hazardous conditions. Where such action is considered the manufacturer should be consulted in the first instance. Bronte AG Installation—April 2024...
- Page 9 1 metre above the roof penetration if more than 3 metres from the ridge. No part of the building, or any adjacent building may be in or above a circular area of a horizontal radius of 3 metres from the flue exit. Bronte AG Installation—April 2024...
- Page 10 OUTSIDE AIR KIT EXPLODED VIEW BRONTE AG The part of the Duct that goes through the wall is 90mm wide and 70mm deep. All work carried out must meet the New Zealand Building Code or Codes. Bronte AG Installation—April 2024...
- Page 11 7. Place the external cover over the duct and fix with the 4 screws provided. 8. Slide interior flange against lining and secure to duct. 9. Outside Air Kit must be fitted to relevant Building Code or Codes. Bronte AG Installation—April 2024...
- Page 12 Fire will be able to maintain an even burning rate. Normally a light load of fuel will stabilize quickly but a full load will take longer. Once the burning rate has stabilized move the Air Control to a medium position. Bronte AG Installation—April 2024...
-
Page 13: Flammable Liquids
‘INSULATION’ FOR THE FIRE. WARNING: DO NOT REMOVE EXCESS ASH FROM THE FIREBOX BY VACUUM UNLESS THE FIRE HAS BEEN OUT FOR 5 OR MORE DAYS—EMBERS WILL SMOULDER FOR SEVERAL DAYS AND WILL IGNITE VACUUM CLEANER BAGS. Bronte AG Installation—April 2024... -
Page 14: Door Glass
8. DOOR GLASS The Bronte AG is equipped with a self-cleaning glass air wash system. A discolouration can form after a long ‘low’ burn, but 30 minutes of ‘high’ burn should clear it from the glass. Clean glass with wet newspaper dipped in ash from the firebox, then wipe glass. - Page 15 The flue should be cleaned regularly (at least annually prior to the winter) to avoid flue fires. In such an event, close the air control. Do NOT open door. Remove combustible items from near the Fire and Flue. Bronte AG Installation—April 2024...
- Page 16 Guarantees Act 1993. To the fullest extent permitted at law, no other warranties or guarantees, express or implied, are assumed or given by Firenzo Woodfires to any person with respect to the quality, merchantability, description or fitness for purpose or use of Firenzo Woodfires or their component parts and materials.
- Page 17 After complying with paragraph 9, for valid claims, a warranty claimant must submit a completed warranty claim form (see Firenzo Woodfires website, or contact Firenzo Woodfires for this form), or other form acceptable to Firenzo Woodfires providing the Model and Serial Number details (page 15), including the date of purchase and specifying the defect: to the retailer/dealer from whom the Firenzo Woodfire was originally purchased;...
- Page 18 This document is intended to form part of (and may be expressly referenced in) the terms of sale and purchase by every original New Zealand consumer of a Firenzo Woodfire. For any questions about the warranties or this document please contact Firenzo Woodfires at its specified address, on telephone 06 8438260, by email at firenzo@firenzo.co.nz,...
- Page 19 Bronte AG Installation—April 2024...
- Page 20 Bronte Contessa Encore Lady Kitchener Napier Viking Vision Stella Topaz Insert Aqualux Bay Fire Flush Kompact Topaz 98 Niven Street PO Box 3231 HB Mail Centre Napier 4142 Phone: 06 843 8260 Website: www.firenzo.co.nz email: firenzo@firenzo.co.nz Bronte AG Installation—April 2024...
