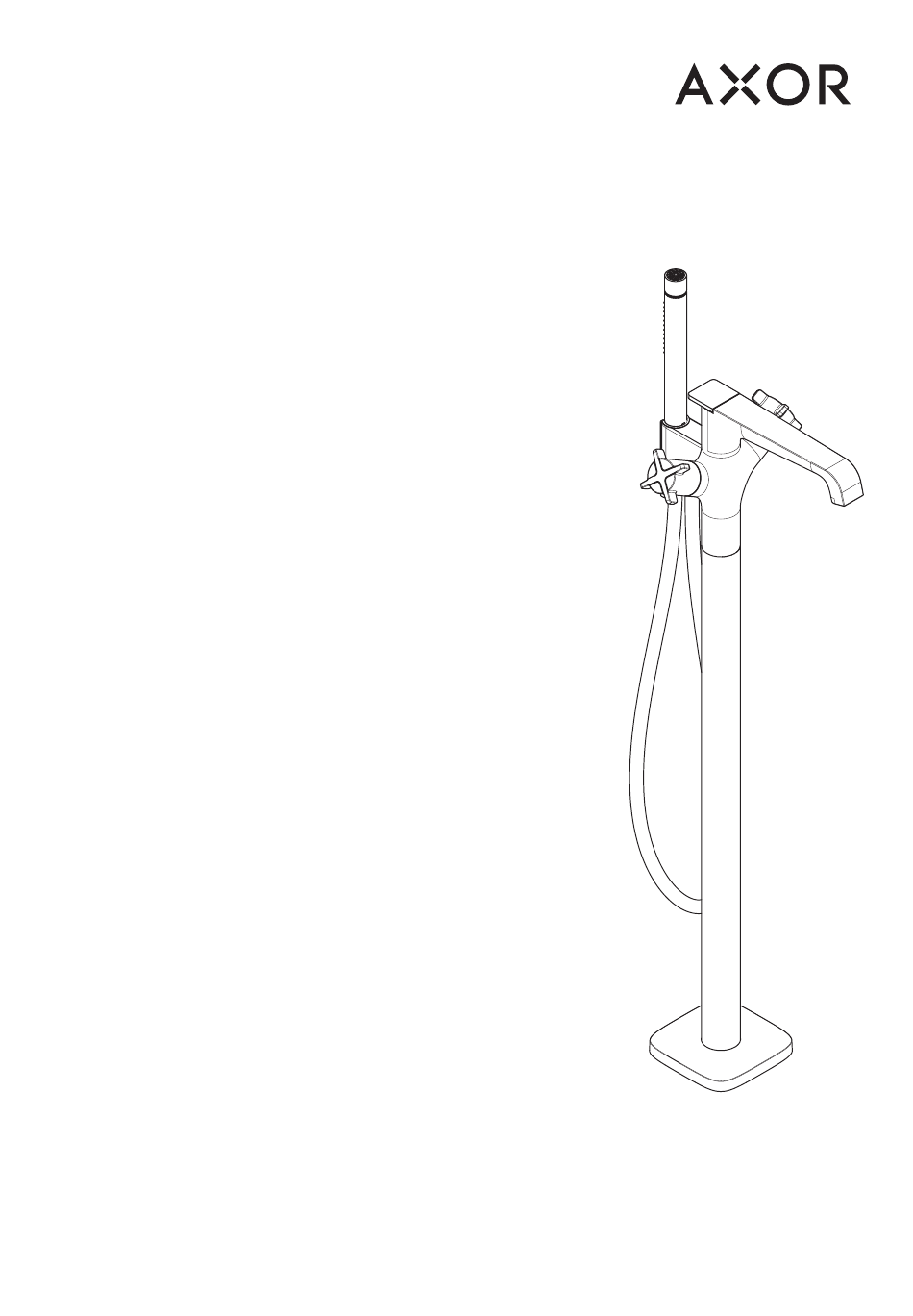

- Page 1 Z H ⁄ 用户手册 ⁄ 组装说明 A XOR Citterio E 36416XX7 E N ⁄ Instructions for use ⁄ Assembly instructions I N S T A L L A T I O N...
- Page 2 ! 安全须知 安全功能 (参见第页 05) ! 装配时为避免挤压和切割受伤, 必须戴上手套. 恒温阀芯的安全功能可以预先设定所希望的最高出水温度, 例如最高 ! 本产品只允许作为洗浴, 卫生和洁身之用. 温度为42°C ! 不得让儿童和肢体, 精神和⁄或意识有障碍的成人在不受监管的情况下使用淋 调节 (参见第页 05) 浴系统. 受酒精或毒品影响的人员不得使用淋浴系统. 安装完成后必须检查调温器的出水温度. 如在取水处测量所得的温度与 ! 必须避免让身体敏感部位 (如眼睛) 接触到莲蓬头喷水. 必须保持莲蓬头与人 调温器上设定的温度有偏差, 那么必须进行调整. 头之间有足够的距离. 保养 (参见第页 08) ! 该产品不得作扶柄使用. 必须安装单独的扶柄. ! 冷热水管间过大的压力差必须予以平衡. ⁄ 单向阀必须在符合国家或当地的法律的情况下按照EN 806-5定期检 查 (至少一年一次). 安装提示 ⁄ 为了保证恒温器的稳定运转, 请务必定期从最热到最冷转动调温器. ⁄ 安装前必须检查产品是否受到运输损害. 安装后将不认可运输损害或表面损 热水和冷水连接头已调换 (参见第页 08) 伤. ⁄ 管道和阀门必须根据通用标准进行安装, 冲洗和检查. 大小 (参见第页 09) ⁄ 请遵守当地国家现行的安装规定. 流量示意图 (参见第页 09) ⁄ 必须装上花洒所附带的滤网密封垫, 以过滤管道里的杂质污物. 杂质污物会 ...
- Page 3 ! S A F E T Y N O T E S S Y M B O L D E S C R I P T I O N ! Gloves should be worn during installation to prevent crushing and cutting injuries. Do not use silicone containing acetic acid! ! The product may only be used for bathing, hygienic and body cleaning purposes. S A F E T Y F U N C T I O N (see page 05) ! Children as well as adults with physical, mental and ⁄or sensoric impairments must not use this product without proper supervision. Persons under the influence of The desired maximum temperature for example max. 42°C can be pre-set...
- Page 4 8 mm 1 0 10452187 M10x35 8 mm Service > 2 min...
- Page 5 3 mm (1 Nm) 3 mm 3 mm 例如 42° C for example 42° C 3 mm (1 Nm)
- Page 6 Axor guarantees to the consumer that this product is free of production faults. QuickClean, If any defect is detected within the warranty period, Axor will remedy this de- fect free of charge. You will fi nd the conditions and details of this guarantee at www.hansgrohe.com.cn/service/producer-quarantee.
- Page 7 > 1 min > 1 min > 4 0 ° C 开 ⁄ open 开 ⁄ open 热 ⁄ hot 关 ⁄ close 冷 ⁄ cold...
- Page 8 6 mm #94074000 8 mm 6 mm 8 mm (6 Nm) 6 mm 8 mm 6 mm 8 mm (6 Nm) 180°...
- Page 9 A XOR Citterio E A XOR Starck 36416XX7 28532XX0 Ø42 124/124 Rp 1/2 min. 70 Ø148 A XOR Citterio E 36416XX7 0,60 0,55 0,50 0,45 0,40 0,35 0,30 0,25 0,20 0,15 0,10 0,05 0,00 9 12 15 18 21 24 27 30 Q = l/min Q = l/sec...
- Page 10 A XOR Citterio E 36416XX7 28532XX7 93339007 (M5x8) 94246000 92364XX0 92362XX0 98127000 92602000 97664000 98290000 (11x2) (20x2,5) (M5x25) 92365000 98207000 98129000 (16x2,3) (14x2) 98289000 94246000 98058000 98536000 98390000 (26x1,5) 98290000 28272XX0 98282007 (1,25 m) 92363XX0 98289000 98913000 93235000 95158000 97670000 (M 10x35) 8 mm 87858000 98127000 (11x2) 94074000...
- Page 12 Axor ⁄ Hansgrohe SE Auestraße 5–9 77761 Schiltach Deutschland info@axor-design.com axor-design.com...
