Summary of Contents for Kemppi Cobotics

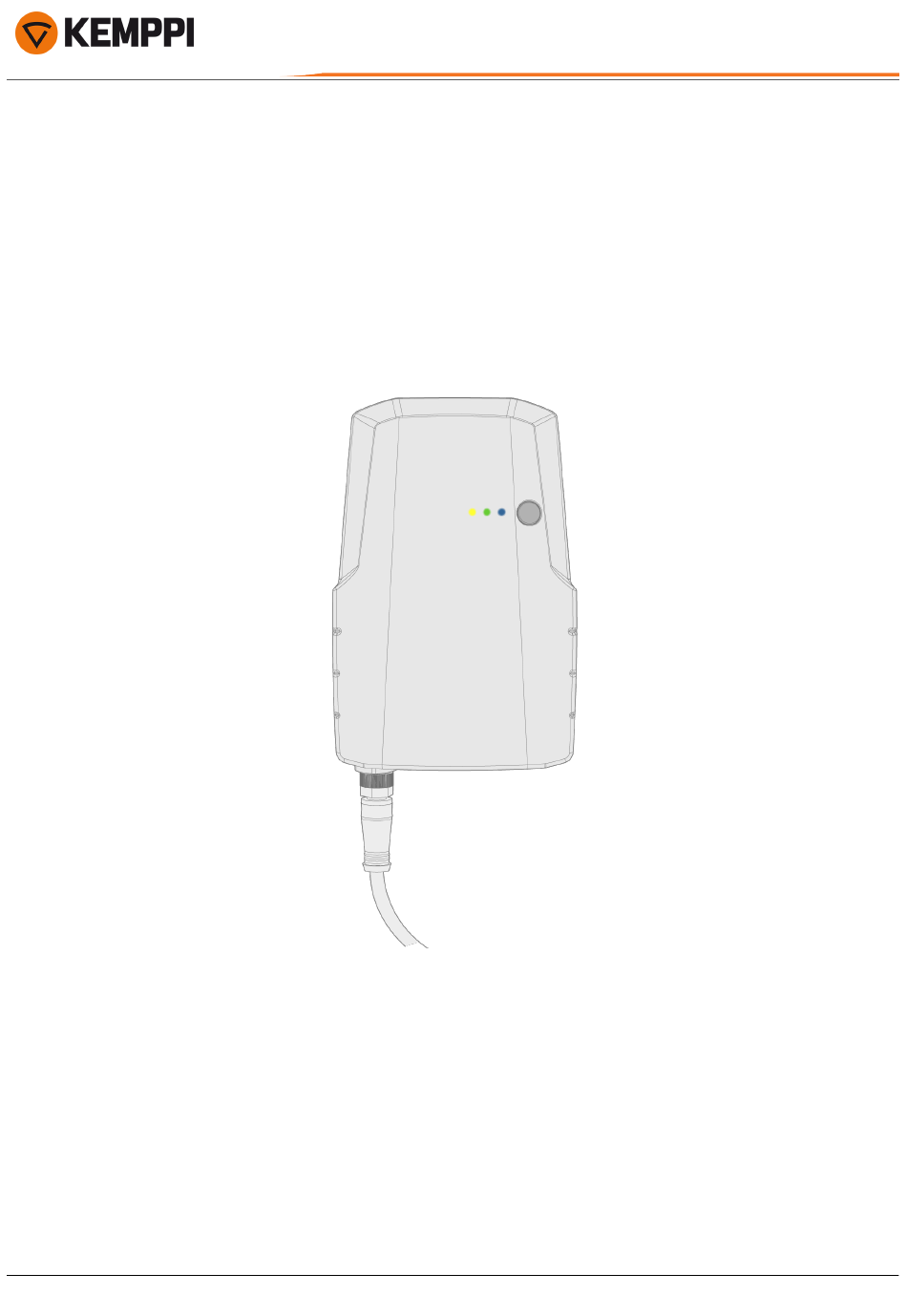

- Page 1 DCM Kemppi Cobotics Operating manual - EN DIGITAL CONNECTIVITY MODULE (DCM) / Kemppi Cobotics Operating manual © Kemppi 1922170 / 2510...
-
Page 2: Table Of Contents
CONTENTS 1. General 1.1 Equipment description 2. Installation 2.1 Mounting on equipment 2.2 Connecting cables 2.3 Installing Kemppi Cobotics application 2.4 Connecting fieldbus converter (optional) 3. Operation 3.1 Pairing with mobile device 3.2 DCM settings 3.3 Status information 3.4 Fieldbus control table 3.4.1 Setting control bit states to start welding... -
Page 3: General
Kemppi's Digital Connectivity Module (DCM) is a small single-board computer connected directly to the welding power source or wire feeder. Together with the Kemppi Cobotics application, it forms a connection between the welding equip- ment and robot / cobot (collaborative robot) via the Modbus TCP fieldbus (in the setup, DCM is a Modbus TCP slave device). -
Page 4: Equipment Description
Red / yellow / green: Additional notification light. (A) Green: Lit when the power is on. (B) Blue: Blinks infrequently when ready and available, blinks more frequently when in "beacon mode", is lit con- tinuously when a mobile device with the Kemppi Cobotics App is connected. (C) Additional requirements •... - Page 5 DCM Kemppi Cobotics Operating manual - EN EQUIPMENT IDENTIFICATION Serial number Serial number of the device is marked on the rating plate or in another distinctive location on the device. Quick Response (QR) code The serial number and other device-related identification information may also be saved in the form of a QR code (or a barcode) on the device.
-
Page 6: Installation
Check the contents of the packages and make sure the parts are not damaged. "Mounting on equipment" on the next page "Connecting cables" on page 9 "Installing Kemppi Cobotics application" on page 10 "Connecting fieldbus converter (optional)" on page 11 © Kemppi 1922170 / 2510... -
Page 7: Mounting On Equipment
DCM Kemppi Cobotics Operating manual - EN 2.1 Mounting on equipment The DCM device can be fixed on the side of a power source or a wire feeder either with the factory-fitted mounting tape or with an optional DIN rail. - Page 8 DCM Kemppi Cobotics Operating manual - EN Let the mounting tape's adhesive cure for 30 minutes. Due to the velcro-type mounting tapes, it is now possible to detach and attach the DCM device if needed. Mounting on DIN rail (optional) Note that the rail installation typically requires drilling fixing holes on the fixing surface for the rail itself.
-
Page 9: Connecting Cables
DCM Kemppi Cobotics Operating manual - EN 2.2 Connecting cables The DCM requires a CAN and an Ethernet cable to be connected. It is recommended to use a shielded Ethernet cable (minimum F/UTP – foil shielded / unshielded twisted pair). -
Page 10: Installing Kemppi Cobotics Application
Welding settings are configured in the welding system's control panel. For Kemppi Cobotics application, a DCM firmware version 1.00.92.0 or newer is required. (For welding equipment firm- ware versions, refer to "General" on page 3.) Scan the QR code below or search for 'Kemppi Cobotics' in Google's Play Store. -
Page 11: Connecting Fieldbus Converter (Optional)
DCM Kemppi Cobotics Operating manual - EN 2.4 Connecting fieldbus converter (optional) The fieldbus converter changes the Modbus TCP fieldbus connection into an Ethernet/IP connection. Install the fieldbus converter by connecting it to the DCM and e.g. the cobot controller with two Ethernet cables. Then configure the cobot to communicate with the fieldbus converter (refer to the cobot controller's operating manual). - Page 12 The following lists the fieldbus converter's preconfigured configuration settings that are used for the communication between the cobot and the fieldbus converter. Parameter Value Description 192.168.127.254 IP address of the fieldbus converter delivered by Kemppi. IP address Vendor ID of the fieldbus converter. Vendor ID Device type Device type of the fieldbus converter.
-
Page 13: Operation
DCM Kemppi Cobotics Operating manual - EN 3. OPERATION "Pairing with mobile device" on the next page "DCM settings" on page 15 "Status information" on page 16 "Fieldbus control table" on page 18 "Timing diagrams" on page 24 "Online control" on page 28 "Resetting" on page 29 "Updating DCM"... -
Page 14: Pairing With Mobile Device
Operating manual - EN 3.1 Pairing with mobile device In order to activate the DCM, a mobile device running the Kemppi Cobotics application must be connected to the DCM via a wireless connection. Ensure that the green LED (B) is lit and that the blue LED (C) blinks infrequently on the DCM device. For more inform- ation, refer to "Equipment description"... -
Page 15: Dcm Settings
Operating manual - EN 3.2 DCM settings This section describes how to configure the DCM settings with the Kemppi Cobotics application. Select the parameter for adjusting. >> Depending on the parameter to be adjusted, refer also to the Settings parameters table below for more details. -
Page 16: Status Information
DCM Kemppi Cobotics Operating manual - EN 3.3 Status information In the Kemppi Cobotics application you can view the communication between the welding system and the cobot. Parameter Description General Communication Green light: Communication between the welding system and the cobot has been established. - Page 17 DCM Kemppi Cobotics Operating manual - EN Wire inch forward Green light: The wire inch forward function is ON. No light: The wire inch forward function is OFF. Wire inch back- Green light: The wire inch backward function is ON.
-
Page 18: Fieldbus Control Table
DCM Kemppi Cobotics Operating manual - EN 3.4 Fieldbus control table This section describes the fieldbus control table for Modbus TCP and Ethernet/IP connections. For information on setting the control bit states for starting welding, refer to "Setting control bit states to start welding"... -
Page 19: Control Information
DCM Kemppi Cobotics Operating manual - EN WatchdogTriggered WeldingSystemAccess OnlineControlValuesValid TouchSensed (Not in use) (Not in use) (Not in use) (Not in use) (Not in use) UINT16 TAST UINT16 WeldingWireFeedSpeed UINT16 WeldingVoltage UINT16 WeldingCurrent UINT16 ErrorNumber UINT16 UserNumber UINT16 ActiveMemoryChannel... - Page 20 DCM Kemppi Cobotics Operating manual - EN PostCurrent -30 ... + 30 0 ... 60 Controls the post current in online control mode. Post current setting affects the wire length at the weld end, for example to prevent the wire from stopping too close to the weld pool. This also enables the optimum wire length for the start of the next weld.
- Page 21 Operating manual - EN Watchdog RobotControlMode = If you set a value for the watchdog timeout parameter (in the Kemppi Cobot- ics application), the cobot must toggle the watchdog control bit between states 1 and 0 continuously when the cobot control mode is enabled.
- Page 22 DCM Kemppi Cobotics Operating manual - EN ActiveMemoryChannel 0 ... 99 0 ... 99 Current memory channel number. WeldingArcVoltage 0 ...6553.5 V 0 ... Measured welding arc voltage. 65535 WatchdogTimeoutValue 0 ... 65535 0 ... Watchdog timeout defined by the user.
-
Page 23: Setting Control Bit States To Start Welding
DCM Kemppi Cobotics Operating manual - EN WorkMemoryChannel Normal memory chan- Working memory Indicates whether the current channel is a work- channel ing channel. WatchdogTriggered Watchdog timeout Bit state 1 indicates that the watchdog timeout has occurred has been exceeded and the welding system has stopped. -
Page 24: Timing Diagrams
DCM Kemppi Cobotics Operating manual - EN 3.5 Timing diagrams "Welding start and stop timing" below "Memory channel change timing" on the next page "Wire inch timing" on the next page "Online control timing" on the next page 3.5.1 Welding start and stop timing... -
Page 25: Memory Channel Change Timing
DCM Kemppi Cobotics Operating manual - EN 3.5.2 Memory channel change timing Description Typical Units Total time 3.5.3 Wire inch timing This section describes the timing for the wire inch forward and wire inch backward functions when controlled by the robot. -
Page 26: Touch Sensor Timing
DCM Kemppi Cobotics Operating manual - EN Switching to online control mode Item Description Typical Units Channel control mode Data setup time Online control mode Welding equipment Switching to channel control mode Item Description Typical Units Online control mode Data setup time... - Page 27 DCM Kemppi Cobotics Operating manual - EN Touch response timing Item Description Typical Units Touch signal function reaction time Short circuit (touch) Touch sensor off timing Item Description Typical Units Touch sensor ON Control response time Touch sensor OFF Welding equipment ©...
-
Page 28: Online Control
DCM Kemppi Cobotics Operating manual - EN 3.6 Online control The online control function is supported by the X5 FastMig AP/APC equipment with firmware version 1.50 SP2 or later, and Master M 358 with firmware version 1.20 or later. The online control function allows the cobot to adjust certain welding parameters directly. This allows the cobot to change welding parameters during welding, for example when changing the welding position or welding around a corner. -
Page 29: Resetting
DCM Kemppi Cobotics Operating manual - EN 3.7 Resetting The DCM can be reset to factory settings with a long-press of the button on the module. Ensure that the DCM is ready and available: Blue LED (C) blinks infrequently. Press the button on the DCM device for 30 seconds: >>... -
Page 30: Updating Dcm
Sign in to Kemppi software hub on your computer. Connect a USB memory stick to the computer. Download the firmware package from the Kemppi software hub’s Software> Firmware > DCM > page. Save the firmware package file to the root folder of the USB memory stick. -
Page 31: Technical Data
DCM Kemppi Cobotics Operating manual - EN 4. TECHNICAL DATA Feature Value Operating voltage 12...48 V Operating temperature range -20...40 °C Degree of protection IP24 External dimensions L x W x H 30 x 104 x 171 Weight without accessories 0.235 kg... -
Page 32: Ordering Codes
DCM Kemppi Cobotics Operating manual - EN 5. ORDERING CODES Product Ordering code Digital Connectivity Module (DCM) 6265051 © Kemppi 1922170 / 2510...
