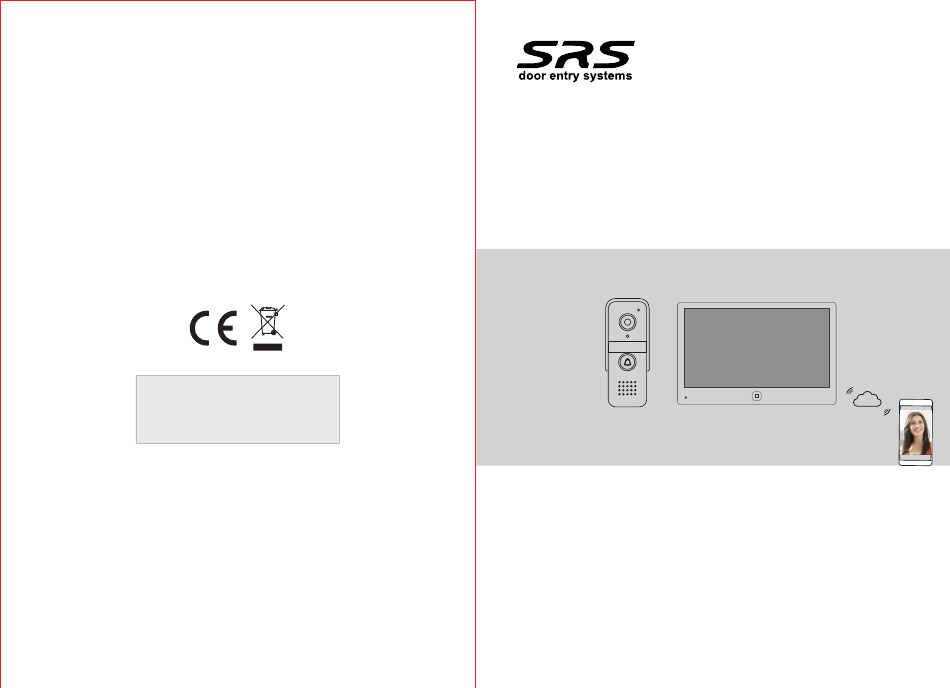

Page 1
Internet This manual is for the purpose of product use and WiFi operation. Design and specifications are subject to change without notice. 7052WKIT-01TUYA Version 1.0 Features With TuyaSmart APP, you can monitor, intercom and unlock remotely. Max. 2 million pixels digital HD.
Page 2
B. Indoor unit installation C. Wiring Diagram Package Contents Wiring Reference 1. Fix the bracket to the with screws supplied. One Outdoor Unit + One Indoor Unit NOTE: The number N “ ” varies depending on the actual needs. TF Card Slot - Indoor Unit - Bracket...
Page 3
One Outdoor Unit + TF Card Slot Two Indoor Units TF Card Slot Settings More Settings DC15V Ambient lighting function: set the color and Outdoor (Outdoor unit setting) brightness of the LED strip on the indoor unit. Indoor unit sub unit Settings( ) ->...
Page 4
Indoor Unit Network Configuration 0~15m RVV2*0.2 mm² Wiring between Outdoor unit 0~30m RVV2*0.5 mm² outdoor and 0~50m RVV2*1.0 mm² indoor units Rain shade 0~100m RVV2*1.5 mm² 1. On the indoor unit, tap “Network” >> “WLAN”, select the Wi-Fi name and enter the password to Microphone Unlocking connect the Wi-Fi.
