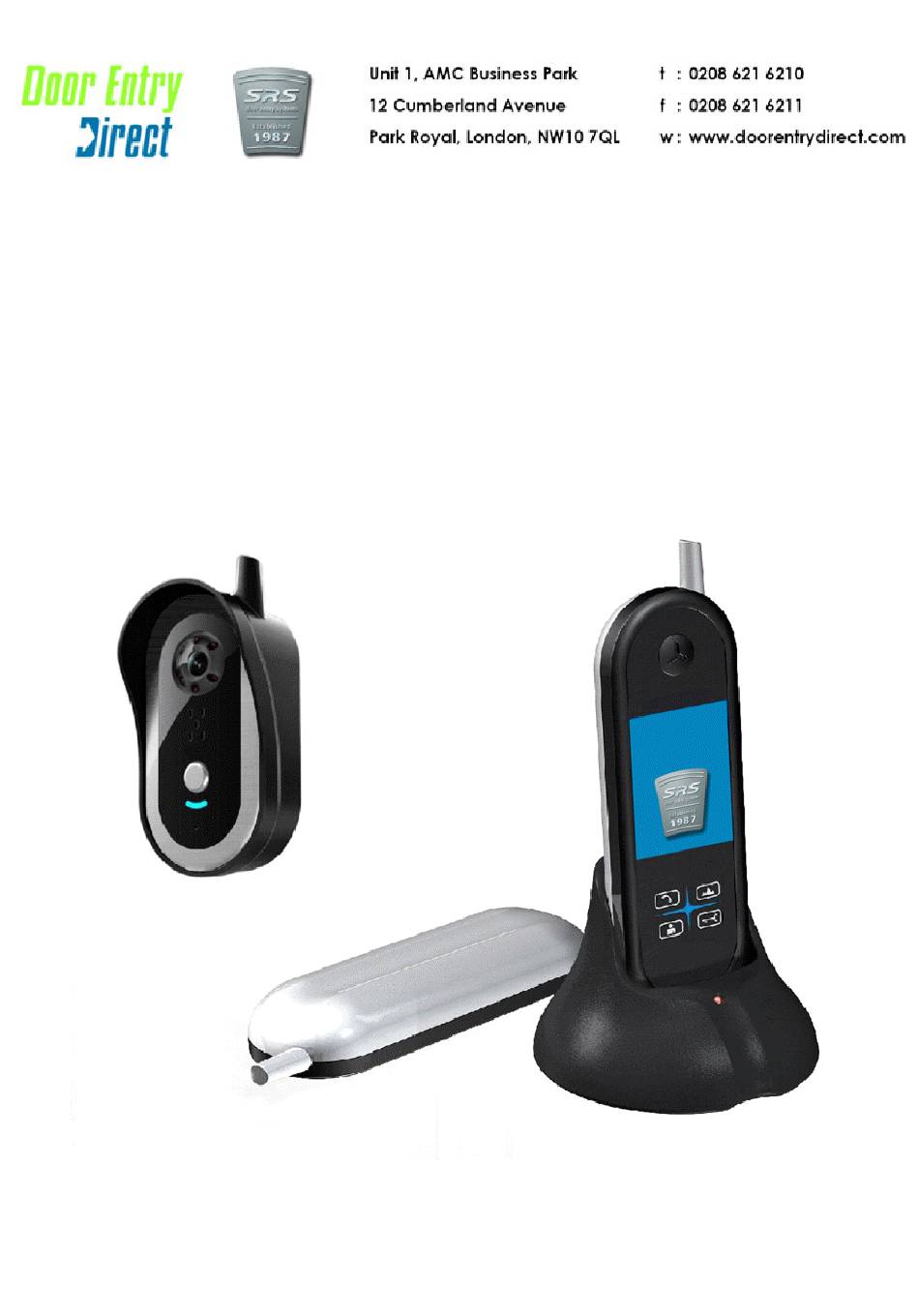

- Page 1 Wireless video door phone kit KWV Series Page | 1 INKWV-20130702...
- Page 2 Important Thank you for purchasing our wireless video door Although the wireless video door phone has error phone. Before carrying out the installation of your correction capabilities, it can be affected by other new system, we strongly advise you read this equipment in the area.
- Page 3 Safety instructions: 1. Please do not install your system without 6. Do not use the product in places where there reading this manual, this is to avoid any are explosive hazards. malfunction or damage to these products. 7. Do not drop the handsets, handle them 2.
- Page 4 Installing the external door station Phone charging base Note: Allen key for the camera unit is supplied in the charger base Power & Lock connections P1: 5V Power supply (+) Positive P2: Power supply (-) Negative P3: Relay (N/C) Normally Closed P4: Relay (C) Common P5: Relay (N/O) Normally Open Page | 4...
- Page 5 Wireless video handset Button descriptions " " On (Off) - Call - Confirm " " Preview • To answer or to end (press and hold) a call • In standby mode press this button to view when a visitor calls from the outdoor images.
-
Page 6: General Operation
General operation Preview pictures 1. When a visitor presses the call button on the outdoor unit (in STANDBY MODE), it rings In STANDBY MODE you can press " " or “ " to (connection is being made to the handset) preview the pictures stored in the handset. -
Page 7: Troubleshooting
Troubleshooting Problem Check Solution Check if power is low Recharge or replace the battery Sound/image is intermittent Check if is out of workable range Make sure the system is in workable range Check if battery is low or USB power Replace battery or make sure USB supply is properly connected power supply working properly...
