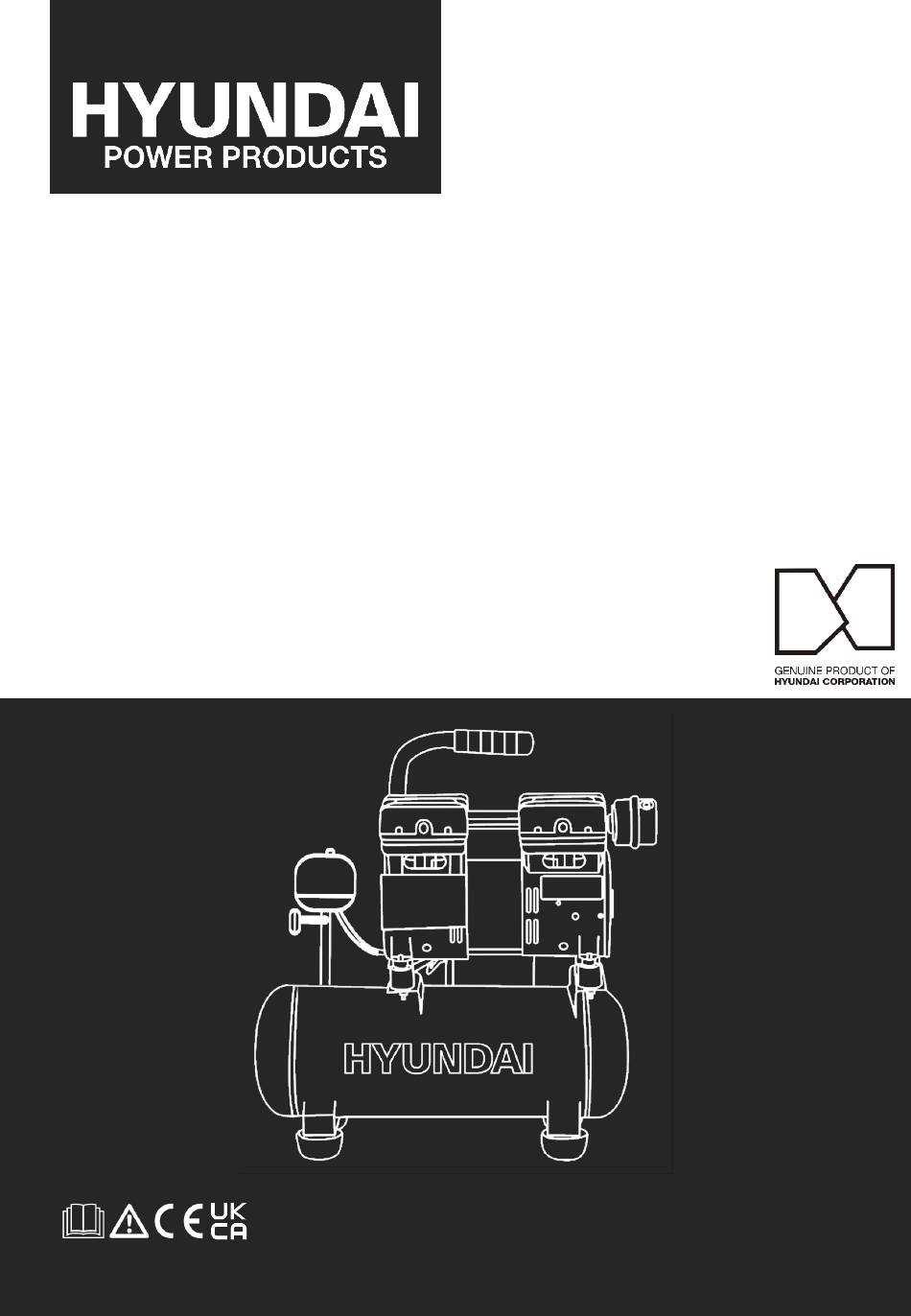

- Page 1 AIR COMPRESSOR HY5508, HY7524, HY27550 Instruction Manual Iss.Oct/24 WARNING: Read the instructions carefully before use.
-
Page 2: Table Of Contents
INDEX CONTENTS PAGE NO.S SAFETY 3 - 7 MACHINE SPECIFIC SAFETY 7 - 8 ASSEMBLY PREPERATION STARTING PROCEDURE STOPPING PROCEDURE USING THE MACHINE MAINTENANCE 12 - 13 TROUBLESHOOTING SPECIFICATION RECYCLING & PRODUCT DISPOSAL DECLARATION OF CONFORMITY CONTACT DETAILS WARRANTY... -
Page 3: Safety
1. SAFETY General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user. - Page 4 1.10 Carbon Monoxide (where applicable). 1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
- Page 5 Vibrations (where applicable). 1.60 Prolonged use of hand held (operated) machines will cause the user to feel the 1.61 effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause never damage and circulatory tissue death.
-
Page 6: Machine Specific Safety
Noise (where applicable). 1.70 The operating noise of the machine can damage your hearing. Wear hearing 1.71 protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly. Be especially vigilant and cautious when hearing ear protection because your ability to hear alarm warnings will be reduced. - Page 7 2.13 DO NOT touch the compressor cylinder, cylinder head or pipe from the head to the tank as these may be hot and will remain so for some time after shutdown. 2.14 DO NOT operate the compressor without all the safety guards in place. 2.15 DO NOT attempt to move the compressor by pulling the air hose.
-
Page 8: Assembly
3. ASSEMBLY NOTE Before assembly, make sure the air tank is not damaged. Inspect all parts for damage and check that all pipes are firmly attached. DO NOT use the air compressor if any damage is found. If damaged contact your dealer. Attach the air filter to the top of the motor head by screwing in to place. -
Page 9: Preperation
4. PREPARATION WARNING Seek assistance when removing the compressor from its packaging. Remove the compressor from its packaging and inspect for any damaged parts. If anything is found to be missing or damaged, contact your supplier. Take care to transport the compressor correctly, do not overturn it or lift it with hooks or ropes. -
Page 10: Starting Procedure
5. STARTING PROCEDURE Check that the power switch is in the OFF position. Attach the air hose to the ¼” quick disconnect coupler. Close the drain valve and ensure the air filter is installed. Close the drain valve. Plug the compressor in to a working plug socket. Turn the power switch to the ON position. -
Page 11: Maintenance
8. MAINTENANCE WARNING Service and maintenance must be performed by an authorised agent. DO NOT tamper with, or attempt to adjust the pressure switch or safety valve. Before moving or carrying out any maintenance on the compressor, make sure that the ignition switch is OFF and the air tank pressure has been vented and the compressor allowed to cool down for a period of time. - Page 12 CLEANING 8.12 Clean the compressor with a soft brush or moist cloth. 8.13 DO NOT use a pressure washer or hose pipe as water can penetrate the motor and cause failure that will not be covered by the warranty. 8.14 DO NOT use solvent based cleaning products, these could damage parts.
-
Page 13: Troubleshooting
9. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Pressure drop in the tank Air leaks at the connections Let the compressor build up pressure in the tank to maximum pressure if possible. Brush soapy water on the air connections and look for air bubbles. -
Page 14: Specification
10. SPECIFICATION 22.5... -
Page 15: Recycling & Product Disposal
11. RECYCLING AND PRODUCT DISPOSAL 11.0 We do not offer a take back scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed onto you by So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 16: Declaration Of Conformity
Isaac Way, Pembroke Dock, SA72 4RW Country of Origin: China Description: Air Compressor SKU Code: HY5508, HY7524, HY27550 Date of Issue: 28/05/2020 Regulations and Directives of Compliance 2006/42/EC - The Machine Directive 2014/30/EU - Annex ll Electromagnetic Compatibility Directive 2000/14/EC – Noise Emissions in the Environment by Equipment for use outdoors... -
Page 17: Contact Details
13. CONTACT DETAILS 13.0 POSTAL ADDRESS Genpower Ltd, Isaac Way, London Road, Pembroke Dock, Pembrokeshire. SA72 4RW. UK. 13.1 TELEPHONE +44 (0) 1646 687880 13.2 +44 (0) 1646 686198 aftersales@genpower.co.uk 13.3 SUPPORT www.hyundaipowerproducts.co.uk 13.4 WEBSITE 14. WARRANTY Proof of purchase will be required before you make a warranty claim. 14.0 Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website:... - Page 19 For Inquiries, Please Contact: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UK, SA72 4RW. T: +44 (0) 1646 687 880 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported / Distributed by Genpower Ltd for Licensed by Hyundai Corporation Holdings, Korea the United Kingdom & Ireland...
