THE SHOWER LAB PORTRAIT 32 Manual

Hide thumbs

Advertisement

Table of Contents

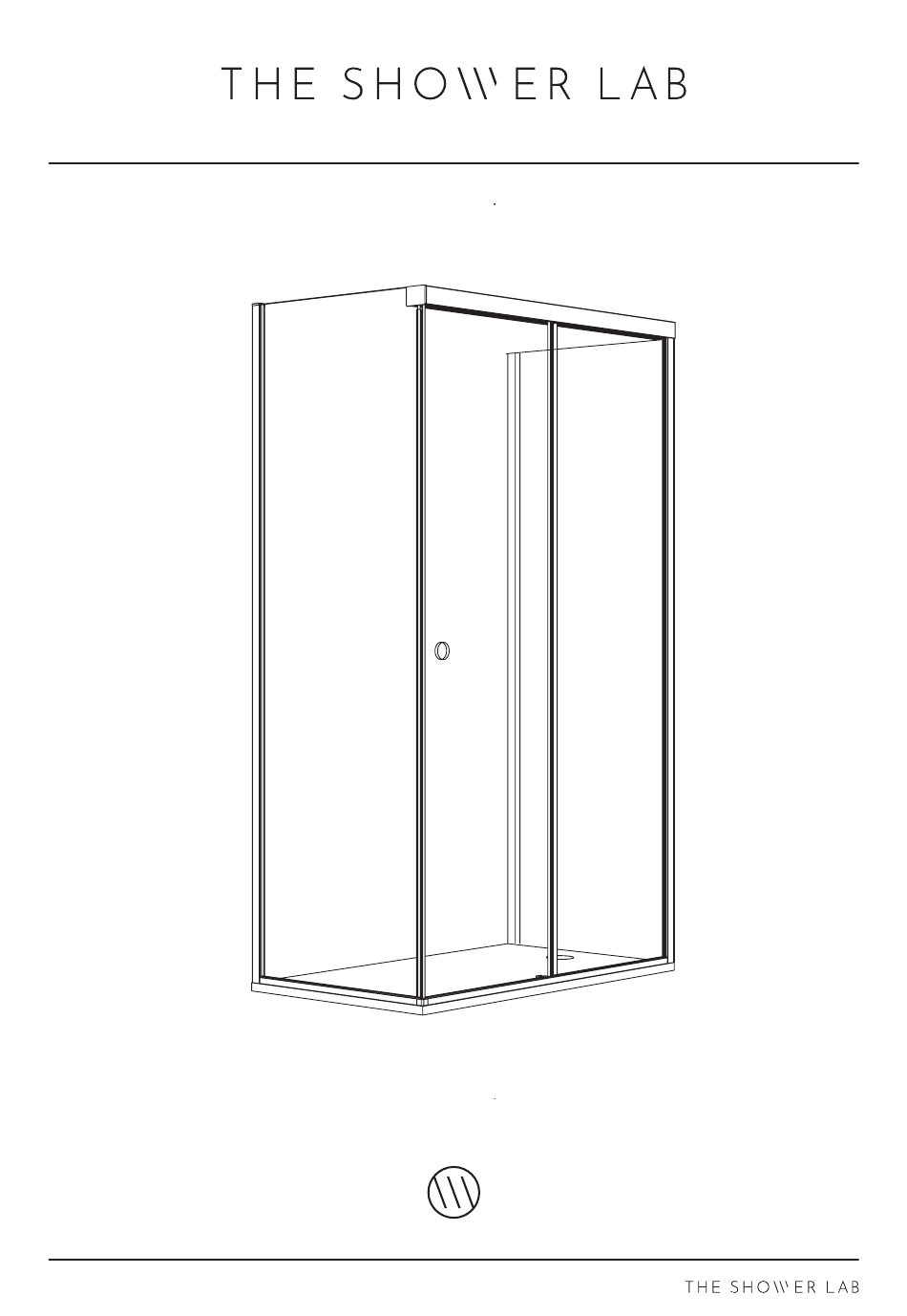

Illustration - 3 Sided Portrait Slider
PO RTR A IT 3 2
Left Hand
03/2024
V 2.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PORTRAIT 32 and is the answer not in the manual?

Questions and answers

Related Manuals for THE SHOWER LAB PORTRAIT 32

Summary of Contents for THE SHOWER LAB PORTRAIT 32

  • Page 1 Illustration - 3 Sided Portrait Slider PO RTR A IT 3 2 Left Hand 03/2024 V 2.2...

  • Page 2: Prior To Installation

    PORTRAIT 32 IMPORTANT This shower screen / enclosure must be installed by suitably qualified individuals. We • recommend a minimum of two people for safe assembly of certain sections of this screen. Ensure all appropriate safety equipment, especially protective footwear, safety glasses •...
  • Page 3 PORTRAIT 32 Supplied Parts Return Panel Door Inline Panel Nylon Block Spacers Packers Header Packers Header Bar Cover Header Bar Header Bar Jig 03/2024 V 2.2...
  • Page 4 PORTRAIT 32 Supplied Parts Underframe Underframe Gasket Wall Pro le UF18BOTTOM UFGASKET CH30A9 A9 Wall Pro le Rigid Seal A9 Wall Pro le Soft Seal Underframe Wedge Gasket WPRIGID A9 WP30SOFT A9 UFWEDGE Glass to Glass Slider Seal Glass to Wall Seal...
  • Page 5 PORTRAIT 32 Supplied Parts Return Bracket Kit Header Bar Cover Seal Wall Bracket Clamp Fixed Panel Retainer Bottom Door Guide Door Stop Door Roller Carriage Door Panel Clamp 03/2024 V 2.2...
  • Page 6 PORTRAIT 32 These instructions are for the Portrait Slider. Please use the below diagram to reference the list of parts. Return Panel (Door Side) Door Panel Fixed Inline Panel Return Panel Wall Pro le Wall Pro le Soft Seal Wall Pro le Rigid Seal...

  • Page 7: Adjustment Sheet

    PORTRAIT 32 ADJUSTMENT SHEET STANDARD ENCLOSURES Code Width Return Opening Gap Overlap Height PR32S12080 1148 - 1198 797 - 787 428 - 478 90 - 40 2000 PR32S12090 1148 - 1198 867 - 887 428 - 478 90 - 40...
  • Page 8 PORTRAIT 32 Posi�on the Underframe parallel to Measure the distance from the tape tray edge. If using a raised shower tray, edge to the �ling and take note of this leave a minimum 3mm gap from the distance. edge of the tray (5mm is recommended).
  • Page 9 PORTRAIT 32 Slide the Bo�om Door Guide Fixing Connect the Underframe Profiles Plate into the T Slot of the Front together using the Underframe 90° Underframe profile. Connector and supplied screws. Add a small amount of silicone to the ends of the Undeframe before connec�ng.
  • Page 10 PORTRAIT 32 Ensure the Wall Profiles are ver�cal by Remove the Wall Profiles and drill holes using a spirit level. Mark the posi�ons on each wall with a 6mm high quality of the pre-drilled holes. drill bit for a clean and precise hole.
  • Page 11 PORTRAIT 32 Before adding silicone in the corner, Using purpose built "Glass Li�ers", check your Underframe and Wall posi�on and sit the Return Glass Panels Profile sizes are within adjustment on to the Underframe Gasket and push range by adding the Return Panels.
  • Page 12 PORTRAIT 32 If the Wall Profiles are flush with the Remove the Panel, Wall Profile So� Glass Panels, move on to step 19. Seal, and the Wall Profile. If the Wall Profiles are not flush with Trim the Wall Profile.
  • Page 13 PORTRAIT 32 Assemble the First Return Bracket to Assemble the Second Return Bracket to the Le� Return Panel. the Right Return Panel. Fix to the bo�om 2x holes of the Outer Fix to the bo�om 2x holes of the Outer Plate.
  • Page 14 PORTRAIT 32 Posi�on the Clamps 35mm in from the Place the Door inside the enclosure for edge of the Panel on both sides. later. Fix Clamps on to the Door by �ghtening CSK screws (1). A�er fixing into place, �ghten Grub Screws 1/4 turn (2) to fully lock the Glass Clamp into posi�on.
  • Page 15 PORTRAIT 32 Fix the Hex Screw and Nut into the Assemble the Door Stops and Roller Roller Carriage using the supplied Carriages into each track on the Header Spanner. Bar. Pay a�en�on to the orienta�on and order of assembling the...
  • Page 16 PORTRAIT 32 Slide the Bracket Clamps to end of Level the Header Bar by adjus�ng the Header Bar and fix to the Header 2x Grub screws and 1x Socket screw. Bracket. 2x Grub Screws 1x Socket Screw Ensure the Door Guide Plate is located...
  • Page 17 PORTRAIT 32 Before Installing the Glass to Glass Posi�on the Glass to Glass Adhesive Adhesive Tape, ensure that the Tape is tape on the correct edge of the Inline orientated and posi�oned correctly on Panel. Using a cloth or towel, apply the the Glass Inline Panel as shown below.
  • Page 18 PORTRAIT 32 Pull Inline Panel away from the Return Use the Nylon Block to ensure that the Panel. Add 1mm Packers to both sides Inline Panel is level with the edge of of Inline Panel in the Underframe. the Return Panel.
  • Page 19 PORTRAIT 32 Li� and hook the Door Panel onto the Adjust the Hex Screw to adjust Door Roller Carriages. Panel so it is parallel to the wall. Use the supplied Spanner. Tighten the Top Nuts to secure the Install the Bo�om Door Guide to the Door Panel a�er adjus�ng.
  • Page 20 PORTRAIT 32 Fix the Bo�om Door Guide Bracket in Install the Nylon Grub screws in the place using the supplied screws. Door Clamps. Ensure the Bracket is lightly touching DO NOT let the screws touch the the Door Panel before fixing in place.
  • Page 21 PORTRAIT 32 Push in 15mm into the wall profile and Tap the Rigid Seal into the dry side of trim the Wedge Gasket where it meets the Wall Profile star�ng from the top of the Underframe Top. the archway. DO NOT pull the seal while cu�ng.
  • Page 22 PORTRAIT 32 A�ach the Glass to Wall Bubble Seal to A�ach the Glass to Glass Slider Seal to the Door. the Door. Trim if needed. Check the orienta�on is correct. Adjust the Door Stop to ensure the Trim if needed.
  • Page 23 PORTRAIT 32 Apply the Wall Profile End Cap to the A�ach the Handle if included. Secure in top of the Return Wall Profile and fix in place with the grub screws provided. place using self tapping screws. The Handle should be oriented so that the grub screws are not visible when looking down on the handle.
  • Page 24 PORTRAIT 32 Apply silicone sealant along the wall Hook the End Covers to the Outer and floor, all around the outside of the Plates and Fix in place using the grub Underframe and Wall Profiles. screws. Silicone Underframe Wall Channel...
