THE SHOWER LAB PORTRAIT 30 PSS100 Manual

Slider, right hand
Hide thumbs

Advertisement

Table of Contents

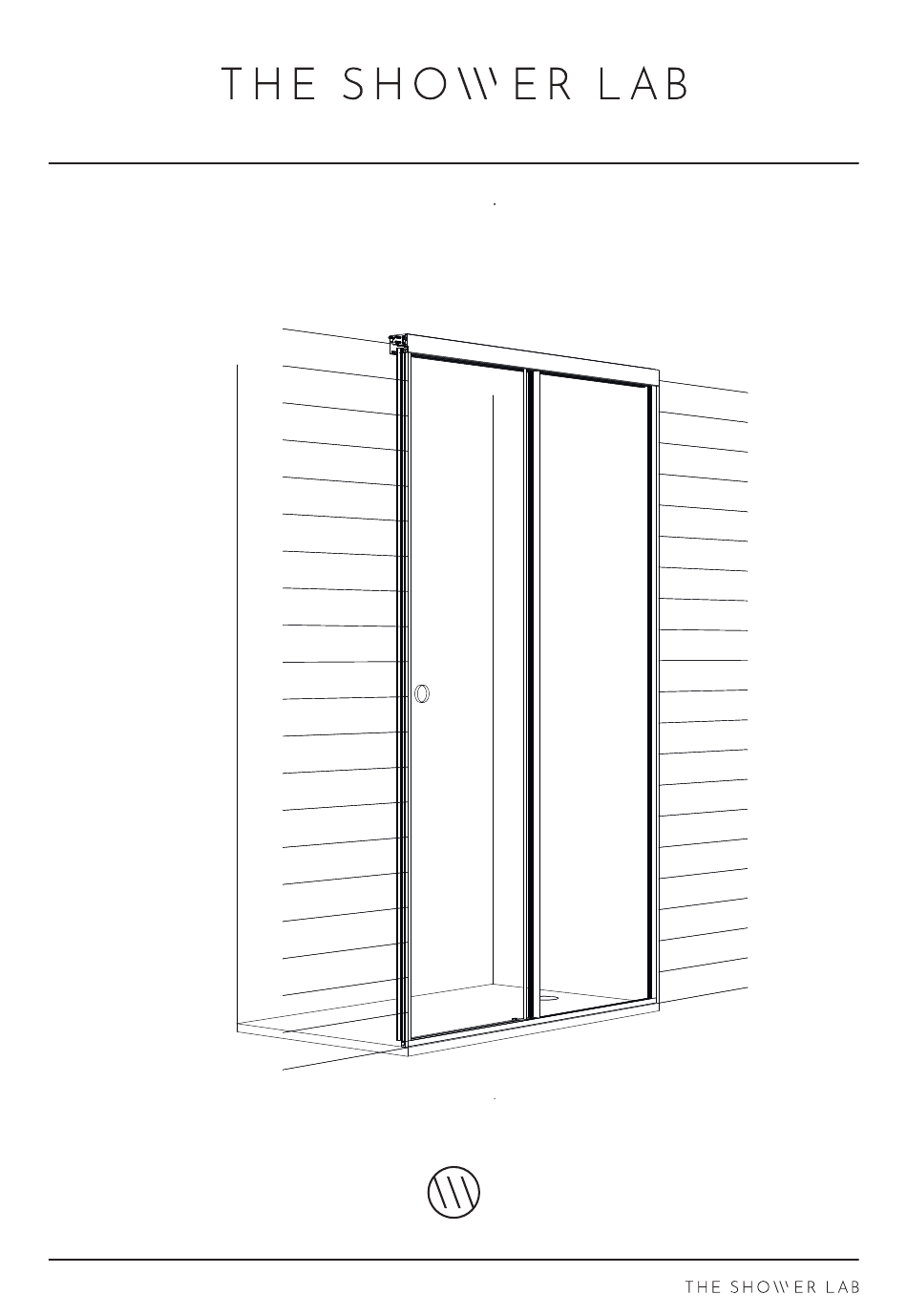

Illustration - Portrait Slider
PO RTR A IT 3 0
Right Hand
03/2024
V 2.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PORTRAIT 30 PSS100 and is the answer not in the manual?

Questions and answers

Related Manuals for THE SHOWER LAB PORTRAIT 30 PSS100

Summary of Contents for THE SHOWER LAB PORTRAIT 30 PSS100

  • Page 1 Illustration - Portrait Slider PO RTR A IT 3 0 Right Hand 03/2024 V 2.2...

  • Page 2: Prior To Installation

    PORTRAIT 30 IMPORTANT This shower screen / enclosure must be installed by suitably qualified individuals. We • recommend a minimum of two people for safe assembly of certain sections of this screen. Ensure all appropriate safety equipment, especially protective footwear, safety glasses •...
  • Page 3 PORTRAIT 30 Supplied Parts Door Inline Panel Nylon Block Spacers Packers Header Packers Wall Pro le Cover Header Bar Cover Header Bar WPCover 03/2024 V 2.2...
  • Page 4 PORTRAIT 30 Supplied Parts Underframe Underframe Gasket Wall Pro le UF18BOTTOM UFGASKET CH30A9 A9 Wall Pro le Rigid Seal A9 Wall Pro le Soft Seal Underframe Wedge Gasket WPRIGID A9 WP30SOFT A9 UFWEDGE Glass to Glass Slider Seal Glass to Wall Seal Underframe Top SPS12 UF18TOP...
  • Page 5 PORTRAIT 30 Supplied Parts Header Wall Bracket Header Bar Jig Header Bar Cover Seal Wall Bracket Clamp Fixed Panel Retainer Bottom Door Guide Door Stop Door Roller Carriage Door Panel Clamp 03/2024 V 2.2...
  • Page 6 PORTRAIT 30 These instructions are for the Portrait Slider. Please use the below diagram to reference the list of parts. Door Panel Inline Fixed Panel Wall Pro le Wall Pro le Cover Underframe Underframe Top Glass to Glass Slider Seal Glass to Wall Bubble Seal Bottom Door Guide Header Bar...

  • Page 7: Adjustment Sheet

    PORTRAIT 30 ADJUSTMENT SHEET STANDARD ENCLOSURES BESPOKE ENCLOSURES Please Note Only Standard Enclosures are shown above. If you have a Bespoke Enclosure, reference the delivery note for the panel specifica�ons of the Enclosure. 03/2024 V 2.2...
  • Page 8 PORTRAIT 30 Ensure the base is level. Mark this measurement on the Underframe bo�om. Measure the width of the opening where the door is to be fi�ed. It is recommended to use masking tape on the Underframe to mark your measurement.
  • Page 9 PORTRAIT 30 Place the Wall Profiles over the Ensure the Wall Profiles are ver�cal by Underframe and up against the wall. using a spirit level. Mark the posi�ons of the pre-drilled holes. Drill holes with a 6mm Drill Bit. Insert the Wall Plugs. Adjust the Glass Clamp for a 10mm Clean the top sec�on of the Glass Door Panel by adjus�ng the Grub Screws.
  • Page 10 PORTRAIT 30 Posi�on the Clamps 35mm in from the Press or slide in a length of 15mm edge of the Panel on both sides. Gasket into the back of the Wall Profile to cover the screw heads. Fix Clamps on to the Door by �ghtening CSK screws (1).
  • Page 11 PORTRAIT 30 Measure the width of the Enclosure at Subtract 1mm from the width of the the Header Bar height. Enclosure to get the Header Bar width. Mark the final dimension on the Header Bar, wrapped with some masking tape. Use a Chop Saw and fine file to cut and finish the edge.
  • Page 12 PORTRAIT 30 Assemble the Door Stops and Roller Assemble the Wall Bracket Clamps with Carriages into each track on the Header the into Track 1 on the Header Bar in Bar. Pay a�en�on to the orienta�on the orienta�on shown below with the and order of assembling the 20mm Socket Screws provided.
  • Page 13 PORTRAIT 30 Adjust the Header Bar so it rests on the Place the Underframe Gasket into the tops of the Wall Profiles by adjus�ng Underframe and bu� up against the the 2x Grub screws and 1x Socket wall where the Fixed Panel will sit. screw.
  • Page 14 PORTRAIT 30 Secure the Inline Panel in place by Adjust the Hex Screw to ensure there is fixing the Panel Retainers to the Header a minimum of 7mm gap between the Bar with the supplied Screws. head of the Screw and the Nut. Ensure the Retainers are spaced evenly and the side marked 10 is facing forwards.
  • Page 15 PORTRAIT 30 Tighten the Top Nuts to secure the Install the Bo�om Door Guide to the Door Panel a�er adjus�ng. Underframe by fixing the supplied screws into the Bo�om Door Guide Plate. Ensure that the Bo�om Door Guide bu�s up against the Inline Panel. Your Guide may be fully assembled.
  • Page 16 PORTRAIT 30 Push the So� Seal into the wet side of Tap the Rigid Seal into the dry side of the Wall Profile star�ng from the top of the Wall Profile star�ng from the top of the archway to the top of the Wall the archway.
  • Page 17 PORTRAIT 30 Spray water on the bo�om of the Fixed Slide the Header Bar Cover Seal inside Panel. the Cover and trim the excess Seal. Feed 15mm of Wedge Gasket into the Wall Profile Arch. Remove the Construc�ons Packers one at a �me while clicking the seal along the Underframe inside and out.
  • Page 18 PORTRAIT 30 A�ach the Glass to Glass Slider Seal to A�ach the Handle if included. Secure in the Door Panel. place with the grub screws provided. Check the orienta�on is correct. The Handle should be oriented so that the grub screws are not visible when Trim the Seal if required.
  • Page 19 PORTRAIT 30 Apply silicone sealant along the wall Check silicone has been applied to all and floor, all around the outside of the the below outside areas. Underframe and Wall Profiles. Silicone Underframe Wall Channel Silicone ARCH MUST BE SEALED WITH SILICONE Check silicone has been applied to all the below inside areas.
