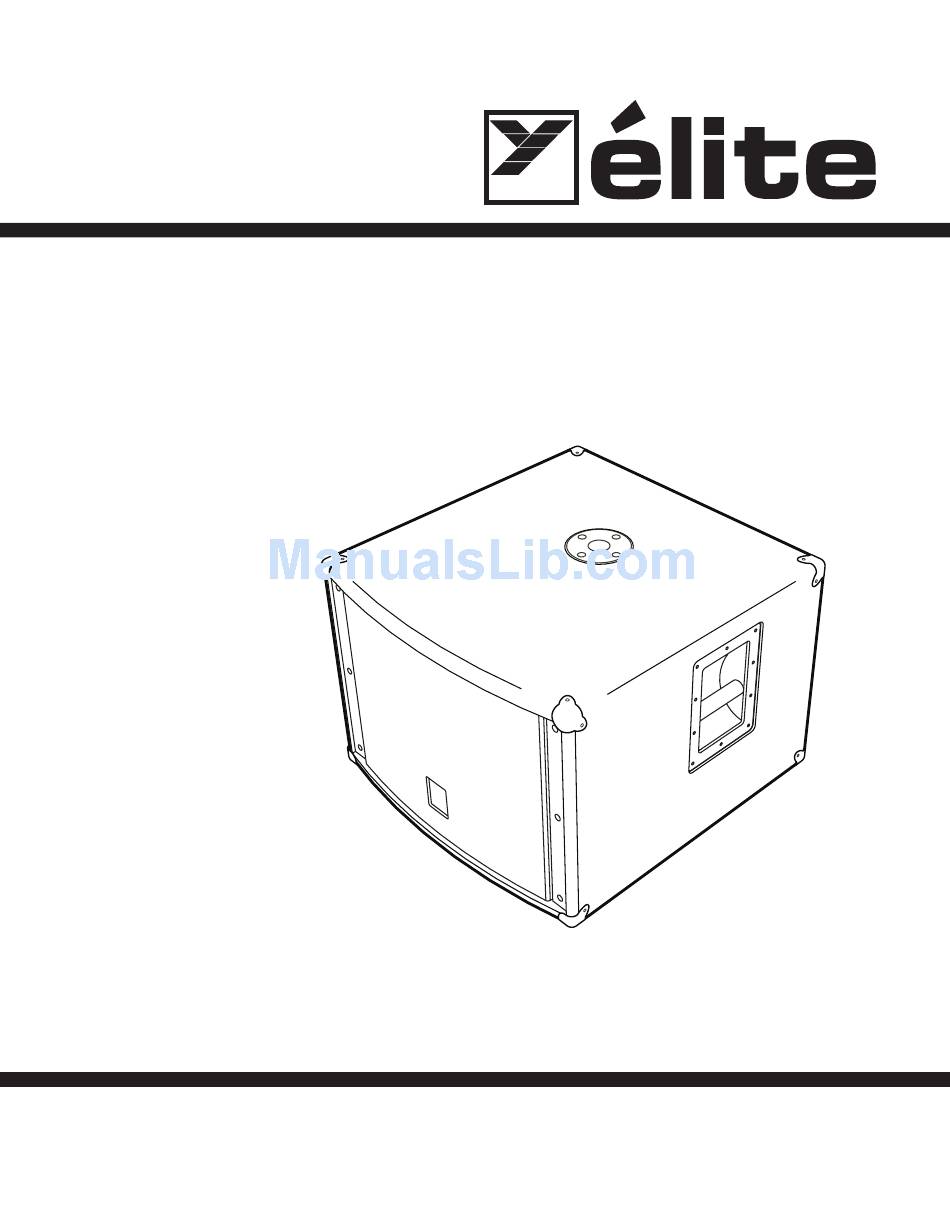

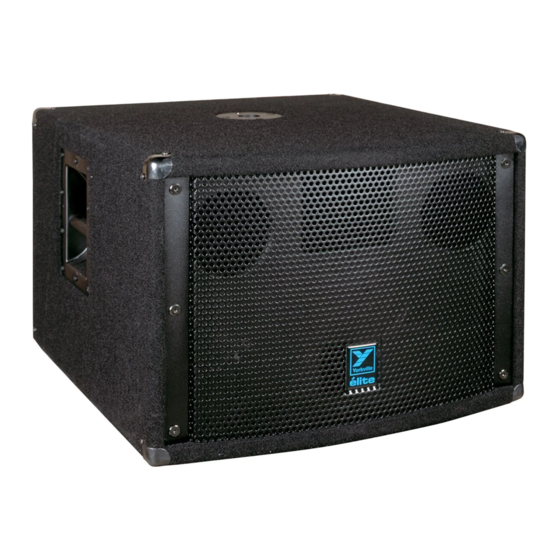

  • Page 1 Yorkville OWNER'S MANUAL MANUEL de L'UTILISATEUR LS701P MODEL TYPE: ES700P...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This lightning flash with arrowhead symbol, within The exclamation point within an equilatereal triangle is an equilateral triangle, is intended to alert the user to intended to alert the user to the presence of important the presence of uninsulated “dangerous voltage” operating and maintenance (servicing) instructions in within the product’s enclosure that may be of sufficient the literature accompanying the appliance.

  • Page 3: Input Level Switch

    It’s been designed as an easy-to-setup addition to any P .A. and will extend the bass of a typical sound system with the least amount of complication. Note: The LS701P is primarily intended to operate with line-level signals, but will also work with speaker level signals.
  • Page 4 Do not increase the setting while operating at high levels. Note: The LS701P’s built-in stand mounting adapter can be used with the Yorkville SW-Teletube accessory to support our full range cabinets. The support tube can be adjusted up to its full 5-foot 4-inch extension safely as long as the LS701P is NOT inclined more that 10°...
  • Page 5 VIA Q19 WOOFER BLOCK-DIAG-LS701P-00-1v0.ai STEREO PASSIVE SPEAKER CONFIGURATION STEREO ACTIVE SPEAKER CONFIGURATION INPUT Switch set to SPKR INPUT Switch set to LINE LS701P #1 LS701P #2 LS701P MIXER STEREO ACTIVE SPEAKER CONFIGURATION INPUT Switch set to LINE LS701P #1 LS701P #2...

  • Page 6: Specifications

    Y orkville LS701P 700 WATT ACTIVE SUBWOOFER ENCLOSURE Specifications LS701P Model: Powered Subwoofer System Type: Active Active or Passive: Program Power (Watts): Max SPL (dB): 45-150 Frequency Response (Hz +/- 3db): 90-150 (Adjustable) Crossover Frequency (Hz): 2x 10 inch Driver Configuration:...
  • Page 7 Introduction Félicitations pour votre achat de la LS701P . Le LS701P est un amplificateur de puissance avec subwoofer intégré de qualité supérieure. Elle a été conçu pour permettre l’addition facile d’un subwoofer amplifié à n'importe quel système de sonorisation et étendra la gamme des fréquences graves d'un système de son typique avec le moins de complication possible.
  • Page 8 N'augmentez pas le réglage du niveau lors d'opération à niveaux élevés. Notez Bien: L’adapteur de support LS701P peut être utilisé avec l’assessoire Yorkville SW-Teletube pour supporter les enceintes haut-parleur pleine band. Le tube de support peut être ajusté à sa pleine extention 5’ 4” avec sécurité...
  • Page 9 VIA Q19 WOOFER BLOCK-DIAG-LS701P-00-1v0.ai STEREO PASSIVE SPEAKER CONFIGURATION STEREO ACTIVE SPEAKER CONFIGURATION INPUT Switch set to SPKR INPUT Switch set to LINE LS701P #1 LS701P #2 LS701P MIXER STEREO ACTIVE SPEAKER CONFIGURATION INPUT Switch set to LINE LS701P #1 LS701P #2...
  • Page 10 Y orkville LS701P 700 WATT ACTIVE SUBWOOFER ENCLOSURE Spécifications LS701P Modèle: Subwoofer Amplifié Type de système Actif Actif ou Passif Puissance Nominale (Watts) Niveau de Pression Sonore Max (dB) 45-150 Réponse en Fréquence (Hz +/- 3db) 90-150 (Ajustable) Fréquence de Filtre Séparateur (Hz):...
  • Page 11 Unlimited Warranty Yorkville's two and ten-year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date (ten years for the wooden enclosure), simply return it to your Yorkville dealer with original proof of purchase and it will be repaired free of charge.
  • Page 12 U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689 Manual-Owners-LS701P-00-1v0 • May 25, 2010...
