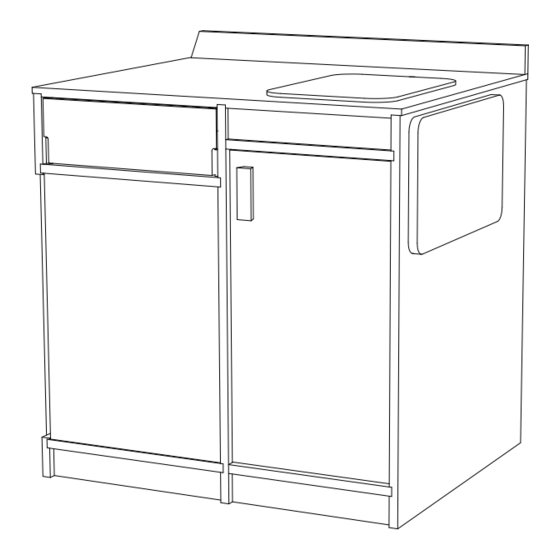

- Page 1 HELM ASSEMBLY GUIDE © CONTOUR CAMPERVAN FURNITURE LTD 2024...
-
Page 2: Before You Start
- Wood can swell/expand in different temperatures and humidities. If the joints are too tight, sand the faces slightly and try again. HLM-02 FRAME PARTS HLM-03 HLM-12 HLM-11 HLM-04 HLM-10 HLM-01 HELM ASSEMBLY GUIDE © CONTOUR CAMPERVAN FURNITURE LTD 2024 PAGE:... - Page 3 FRAME PARTS HLM-13 HLM-08 HLM-07 HLM-05 HLM-06 HLM-09 HLM-14 HLM-15 HLM-16 DRA WERS & DOORS HLM-23 HLM-21 HLM-19 HLM-20 HLM-18 HLM-17 HLM-22 HLM-24 HELM ASSEMBLY GUIDE © CONTOUR CAMPERVAN FURNITURE LTD 2024 PAGE:...
- Page 4 HARDW ARE FRAME HLM-04 HLM-05 HLM-02 HLM-04 HLM-01 HELM ASSEMBLY GUIDE © CONTOUR CAMPERVAN FURNITURE LTD 2024 PAGE: 04...
- Page 5 FRAME ø4x25mm P ø4x25mm P HLM-07 HLM-03 HLM-06 ø4x32mm P HLM-14 HLM-09 ø4x25mm P ø4x32mm P HLM-10 HELM ASSEMBLY GUIDE © CONTOUR CAMPERVAN FURNITURE LTD 2024 PAGE:...
- Page 6 Fix brackets to cabinet first, washers and nuts on the inside. ø4x30mm C ø4x25mm P ø4x25mm P HLM-12 HLM-23 ø4x32mm P HLM-11 If joints are too tight, sand top edges of cabinet panels. HELM ASSEMBLY GUIDE © CONTOUR CAMPERVAN FURNITURE LTD 2024 PAGE: 06...
- Page 7 Fit runners along centreline engraved on carcass. End of runner 13mm from front edge. Press levers down whilst inserting drawer into cabinet. Use slotted holes to adjust alignment then fix in place. HELM ASSEMBLY GUIDE © CONTOUR CAMPERVAN FURNITURE LTD 2024 PAGE:...
- Page 8 Fix hinges to cabinet using screws supplied on mounting plates. Use the screws on the hinge to adjust Install magnetic catch using the position of the door. pre-drilled holes ø3.5x12mm C HELM ASSEMBLY GUIDE © CONTOUR CAMPERVAN FURNITURE LTD 2024 PAGE: 08...
