Summary of Contents for Gear4music SubZero AD4

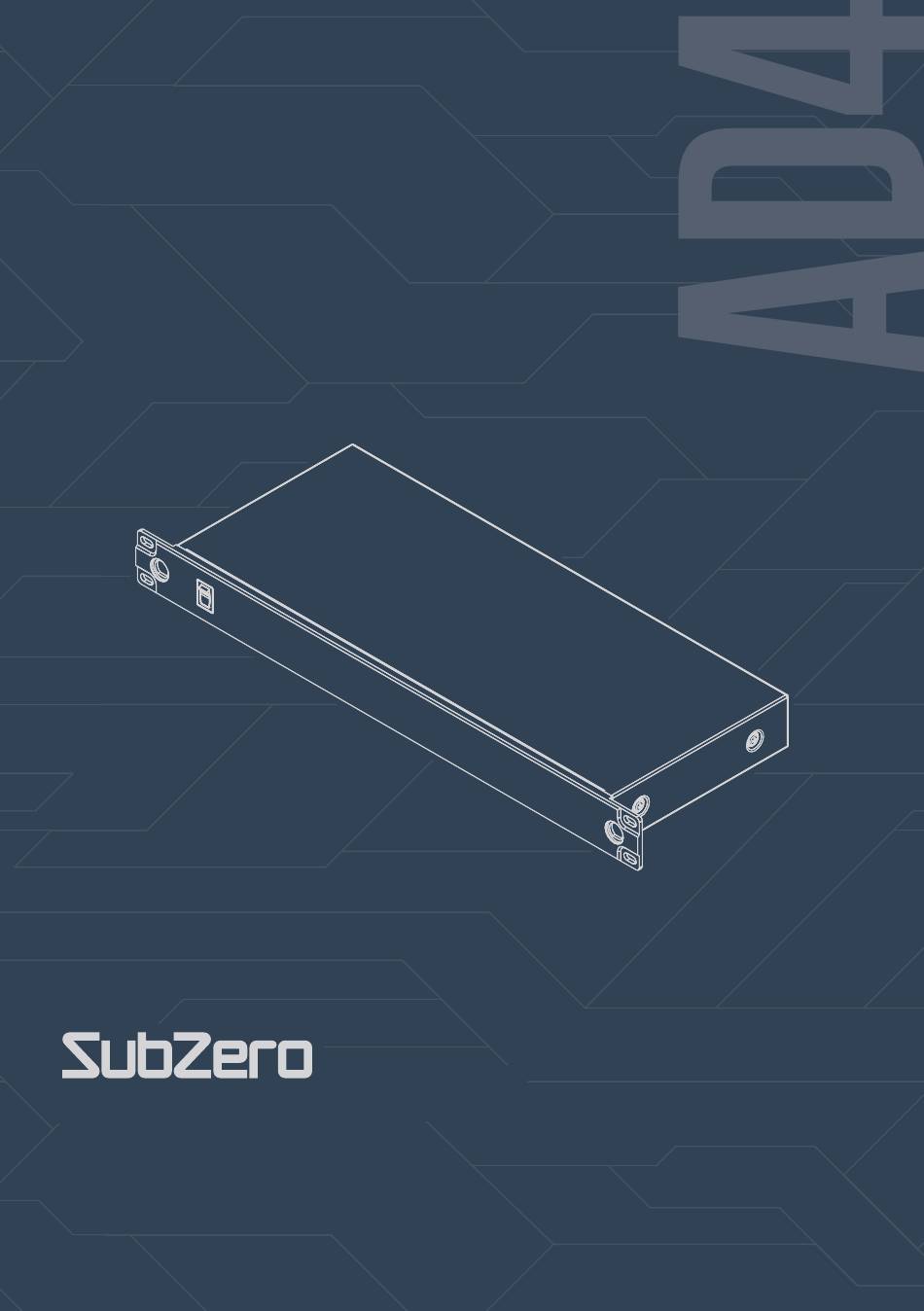

- Page 1 FOUR CHANNEL UHF ANTENNA DIVIDER USER MANUAL...
- Page 2 EN WARNING! IT AVVERTIMENTO! Do not open cover. No user-serviceable parts inside. Refer servicing to qualified service personnel. Non aprire il coperchio. Se fosse necessario, riferirsi ad un esperto. Do not place the product in a location near a heat source such as a radiator, or in an area subject to direct Non esporre il prodotto a fonti di calore, luce del sole diretta, polvere, vibrazioni meccaniche o altri possibili sunlight, excessive dust, mechanical vibration or shock.
- Page 3 INTRODUCTION Thank you for purchasing the SubZero Four Channel UHF Antenna Divider. To get the most out of your product, please read this manual carefully. CONTENTS • 1 x SubZero Four Channel Antenna Divider • 1 x DC Power adaptor 12V-15V/5A •...
- Page 4 FUNCTIONS FRONT PANEL ANTENNA B ANTENNA B OUTPUT DC OUTPUT ANTENNA A OUTPUT ANTENNA A DC INPUT 12V~18V +9V DC BIAS +9V DC BIAS 4 CHANNEL ANTENNA DIVIDER 1. POWER SWITCH Used to turn the unit on / off, when power is on, a small LED light illuminates.
-
Page 5: Installation
INSTALLATION ANTENNA B ANTENNA B OUTPUT DC OUTPUT ANTENNA A OUTPUT ANTENNA A DC INPUT 12V~18V +9V DC BIAS +9V DC BIAS SZ-DANT DIRECTIONAL ANTENNA (SOLD SEPERATELY) RECEIVER 1 RECEIVER 2 OUTPUT OUTPUT INPUT POWER: 12V , 1A INPUT POWER: 12V , 1A RECEIVER 3 RECEIVER 4 OUTPUT... - Page 6 EXPANDING YOUR SETUP ANTENNA B ANTENNA B OUTPUT DC OUTPUT ANTENNA A OUTPUT ANTENNA A DC INPUT 12V~18V +9V DC BIAS +9V DC BIAS ANTENNA B ANTENNA B OUTPUT DC OUTPUT ANTENNA A OUTPUT ANTENNA A DC INPUT 12V~18V +9V DC BIAS +9V DC BIAS If you need to bring additional wireless receivers into the system, two NOTICE:...
-
Page 7: Specifications
SPECIFICATIONS Carrier Frequency ....470-1000MHz IIP 3 ......+32dBm RF Output Gain . - Page 8 KETTLESTRING LANE | YORK | YO30 4XF | UNITED KINGDOM LAHNSTRAßE 27 | 45478 MÜLHEIM AN DER RUHR | DEUTSCHLAND If you have any more questions about this product, please do not hesitate to contact the Gear4music Customer Service Team on: +44 (0) 330 365 4444 or info@gear4music.com...
