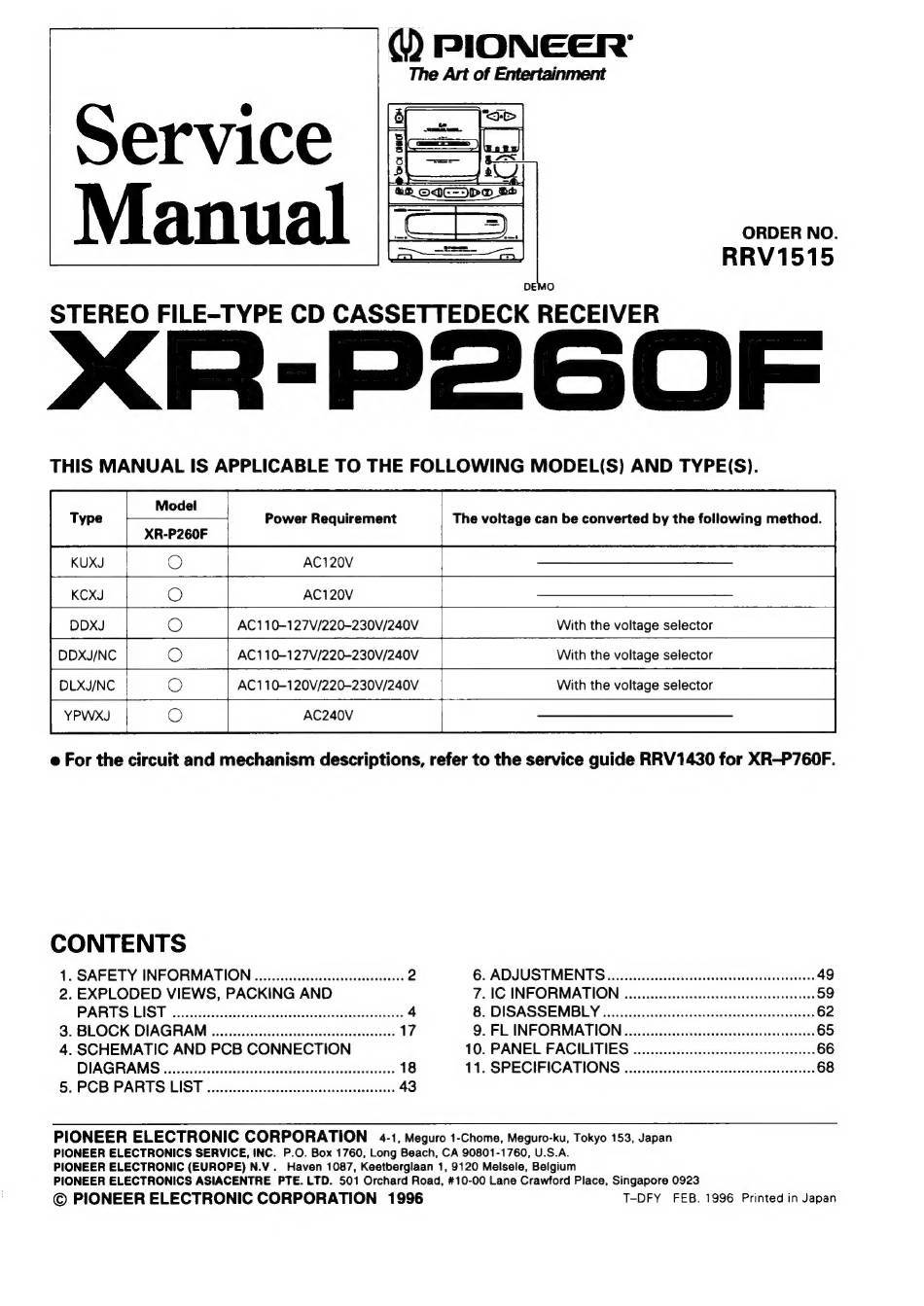

Pioneer XR-P260F Service Manual

d) PIONEER'
Service
Manual
STEREO FILE-TYPE CD CASSETTEDECK RECEIVER
XR-P2e&60OF
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
ORDER NO.
RRV1515
Power Requirement The voltage can be converted by the following method.
AC120V
AC120V
AC110-127V/220-230V/240V With the voltage selector
DDXJ/NC AC110-127V/220-230V/240V With the voltage selector
DLXJ/NC AC110-120V/220-230V/240V With the voltage selector
YPWXJ AC240V
e For the circuit and mechanism descriptions, refer to the service guide RRV1430 for XR-P760F.
CONTENTS
1. SAFETY INFORMATION ...... cece sees seesceeeees 2 6. ADJUSTMENTS. ....00.. ec eeeeceeseeeeeeeseneeeneeeeneenees 49
2. EXPLODED VIEWS, PACKING AND 7.IC INFORMATION .........ceesceseeeesesesneeseeeeererens 59
PARTS LIST cccccccicsccesssdssevciccssevsstessosussanscasera ane 4 8. DISASSEMBLY .......... cc ccccssceeseeeseeesseeseseeesneneees 62
3. BLOCK DIAGRAM ....... cece ccceeceeeeseteeeneneens 17 9. FL INFORMATION ........cccccccssesesceseesrersanseneenes 65
4. SCHEMATIC AND PCB CONNECTION 10. PANEL FACILITIES oo... eceeeeeeeseeeeeeneeeees 66
DIAGRAMS ii ccccsscccsisnssevsstcovasascosseosencsnssvecs sees 18 11. SPECIFICATIONS ou... cece ceseeeeseesceeteteeeseneeee 68
5. PCB PARTS LIST ...0. oo. eeeeeeseneeeteeeeeseneeeees 43
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Metsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923
© PIONEER ELECTRONIC CORPORATION 1996 T-DFY FEB. 1996 Printed in Japan
