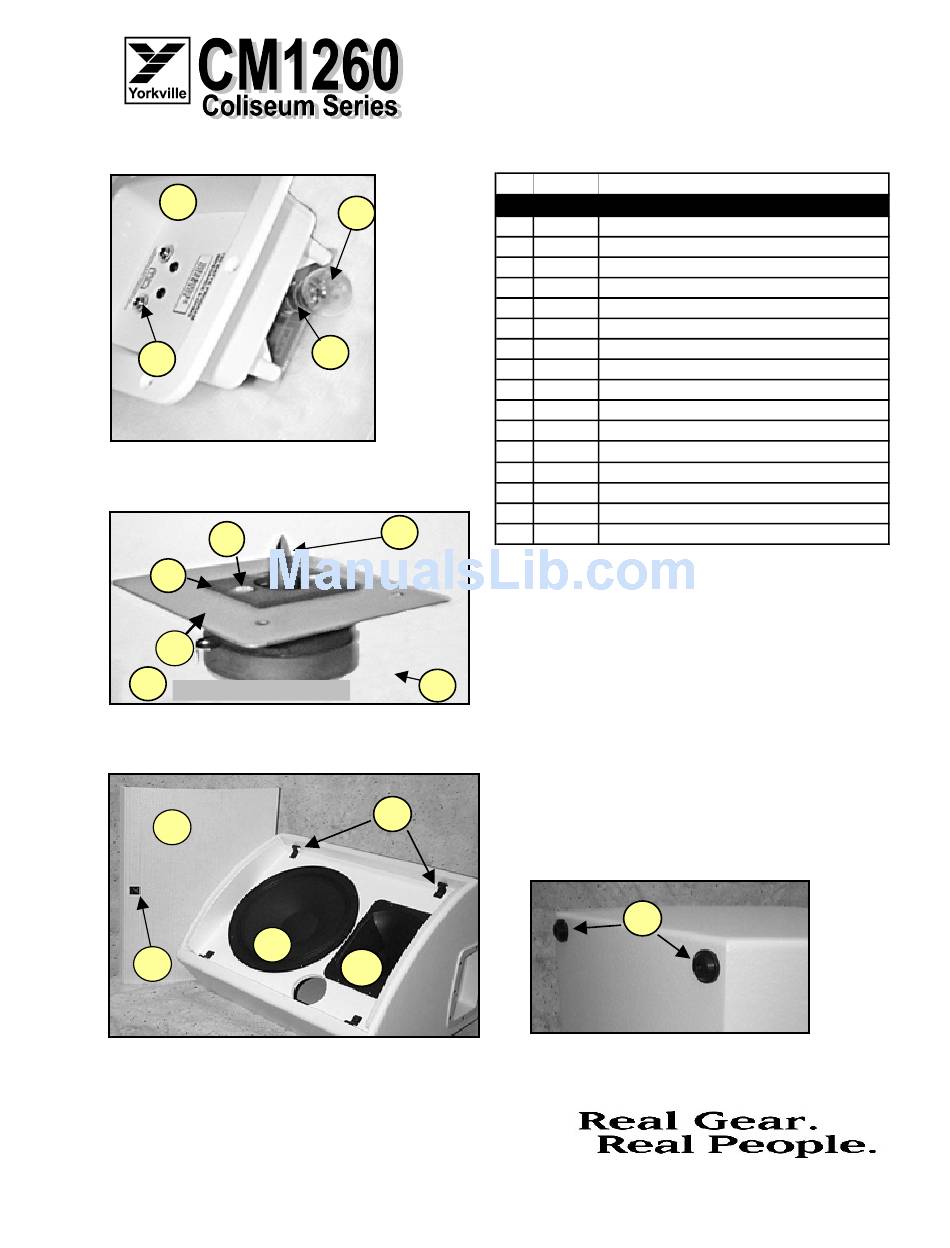

YORKVILLE Coliseum CM1260 Manual

applicable to serial numbers prior to 102xxxx
1
2

Crossover Dish

5
6
7
10
diaphram not shown

HF Driver shown with mounting plate

11
12

Front view of CM1260 with grill taken off

*NOTE: Replacement grills & HF Driver supports are 'Special-Order' and are only available while the model is in production.
Parts-Serv-cm1260-1v0.xls
3
4
8
9
15
13
14
ftp.yorkville.com
# Part# Description

Labeled Components

1 8513 WHT X-OVER DISH - PLASTIC
2 3924 1/4" JCK PCB MT VERT 2XTIP HI-CURRENT
3 3647 12V 18W SC BAYONET #1141
4 3641 S.C. BAYONET WIRE SOCKET TINNED
5 8879 M5 X 10 DIN 7985 MS ZINC SCREW
6 8886 NEOPRENE N252 DRIVER GASKET
7 M694 GENERIC DRIVER SUPPORT*
8 N252PP N252 REPLACEMENT PHASE PLUG
9 N252XN 8R 30W 1"DRIVER RCF-N252XN
10 M-73 N252 REPLACEMENT DIAPHRAM
11 z305 CM1260 GRILL*
12 8453 YS LOGO BLK
13 7317 12" 8R 150WPGM SPEAKER
14 H07A HORN 60 X 40 1" STY 2000HZ
15 8461 TRIM CLIP (PLATED BLK ZINC)
16 8547 PLASTIC FOOT BLACK
16

Bottom view showing two of the four feet

BULB
Speaker Enclosure
