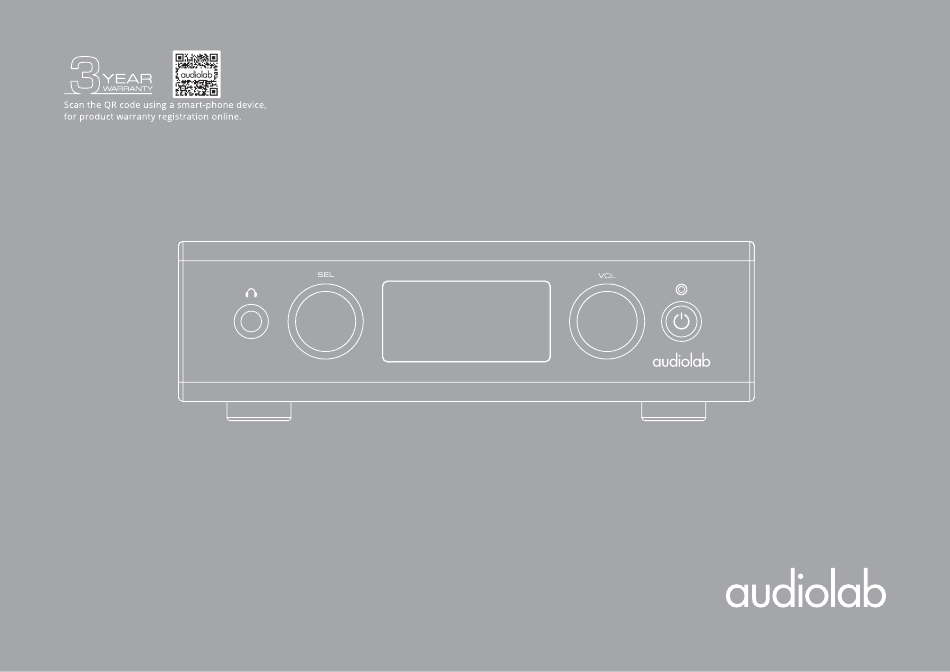

- Page 1 User Manual...
-
Page 2: Important Safety Information
Important Safety Information be impeded by covering the ventilation openings with items such as newspaper, tablecloths, curtains etc. WARNING: Only use attachments/accessories specified or provided by the manufacturer (such as the exclusive supply adapter, battery etc.). WARNING: Please refer to the information on the exterior panel of the enclosure This lightning flash with an arrowhead symbol within an equilateral triangle is for electrical and safety information before installing or operating the apparatus. - Page 3 Qualcomm Technologies International, Ltd., registered in the United States and other countries. The audiolab D7 OLED display shows 'MQA', 'MQA.' or 'OFS’ to indicate that the unit is decoding and playing an MQA stream or file, and denotes provenance to ensure Being Roon Tested means that IAG Group Ltd and Roon that the sound is identical to that of the source material.
-
Page 4: Table Of Contents
Contents Audiolab D7 1. Getting Started 2. Control and Function 3. Remote Headset 4. Connections 5. Menu Options 6. System Operations 7. Playing Operations 8. Warranty Coverage 9. Specifications... -
Page 5: Getting Started
Page 05 1: Getting Started Introduction of D7 Unpacking the Equipment Welcome to the Audiolab D7. The carton should contain: • The Audiolab D7 Features • One power adaptor with one plug suitable for your region. • One remote handset •... -
Page 6: Control And Function
Page 06 2: Control and Functions Power LED Standby Button Headphone Jack Source select Display Volume Control BT Antenna Digital Outputs Digital Inputs PC USB 12V Trigger Analogue Outputs USB-HDD & Firmware Updates DC-IN... -
Page 7: Remote Handset
Page 07 3: Remote Handset Press to bring the unit in/out of Standby 1. Standby 2. Mute Press to mute and unmute the sound Long Press: Enter Folder Mode selection from the Playing Interface. Short Press: Access the Folder View. If you are in a subfolder, continue to short press to return to the previous level until you reach the root folder. -
Page 8: Connections
Connect your optical digital sources to either OPT1 or OPT2. will be disconnected after 60 seconds. To reconnect, select BT on the D7, and it will connect to the last paired device or select 'Audiolab D7 BT' on your mobile device in the Digital Output Bluetooth menu, and it will reconnect. -
Page 9: Menu Options
OPTICAL) are disabled. set-up. Linear Phase (Slow Roll-Off) is • Core Decode - this option is suitable for users connecting D7 to a 3rd party the default setting. external MQA renderer via SPDIF, up to a sample rate of 192kHz. - Page 10 AUX input, and therefore using the integrated amplifier's volume control. When set to 'Adjustable', the D7 Volume control is used to adjust the level of the analogue output. This is required when connecting directly to a power amplifier. The default setting on the D7 is 'Adjustable'.
- Page 11 Copy the file to the root of a FAT32 USB Drive and insert it to the USB-A port of D7 rear panel. Power on the D7 and enter the 'Update' menu option, select 'Yes' and press to confirm.
-
Page 12: System Operations
The range is -78dB to 0dB. Press the 'Standby' button to bring the D7 out of standby, the power indicator LED When switching on the D7, the volume will be set to the previously used volume becomes brighter and the display shows the 'Audiolab' welcome screen while the setting. - Page 13 The menu enables you to customise the unit and optimise the interface with other equipment in your system. D7 has 13 different menu pages. Press the SEL knob on the front panel, or MENU key on the remote to enter menu mode. Rotate the SEL knob, or press / on the remote to navigate the menu.
-
Page 14: Playing Operations
To download Windows Drivers, please see the separate manual. Any firmware updates will also be available from www.audiolab.co.uk Connect your computer to D7 via USB cable (type A to Type B), change the Play mode to USB input using the handset or the button on the front panel. -
Page 15: Warranty Coverage
8: Warranty Coverage Page 15 Audiolab warrants this product, subject to the terms and conditions below, to be This warranty provides benefits that are additional to and do not affect your free from defects in materials and workmanship. During the warranty period statutory consumer rights. - Page 16 Other than the warranty and services set out in this warranty, to the fullest extent war, riot, public disturbance. permitted by law, Audiolab shall not be liable to you and/or any third party or entity Any other causes beyond the reasonable control of either Audiolab and its whatsoever for: Authorised Distributor.
-
Page 17: Specifications
Page 17 9: Specifications BRAND Audiolab Model General Description Design Philosophy and Core Technology ES9038Q2M 32-bit DAC MQA Full decoder (PC USB, Coax / Optical) OLED Display Bluetooth 5.1 (aptX / aptX HD) streaming Dedicated Current-Feedback Headphone Amp Supports playing USB memory device (MP3 / WMA / APE / AAC / WAV / FLAC) - Page 18 Page 18 9: Specifications Headphone Amplifier Total Harmonic Distortion(THD) < 0.01% (1kHz, 50mW ) Output Impedance 2.35 ohm Load Impedance 20-600 ohm General Standby Power Consumption <0.5W Net Weight 1.42 kg Gross Weight 2.2 kg Dimensions (mm) (W x H x D) L: 180 x W: 208 x H: 56mm Carton Size (mm) (W x H x D) L: 290 x W: 325 x H: 85mm...
