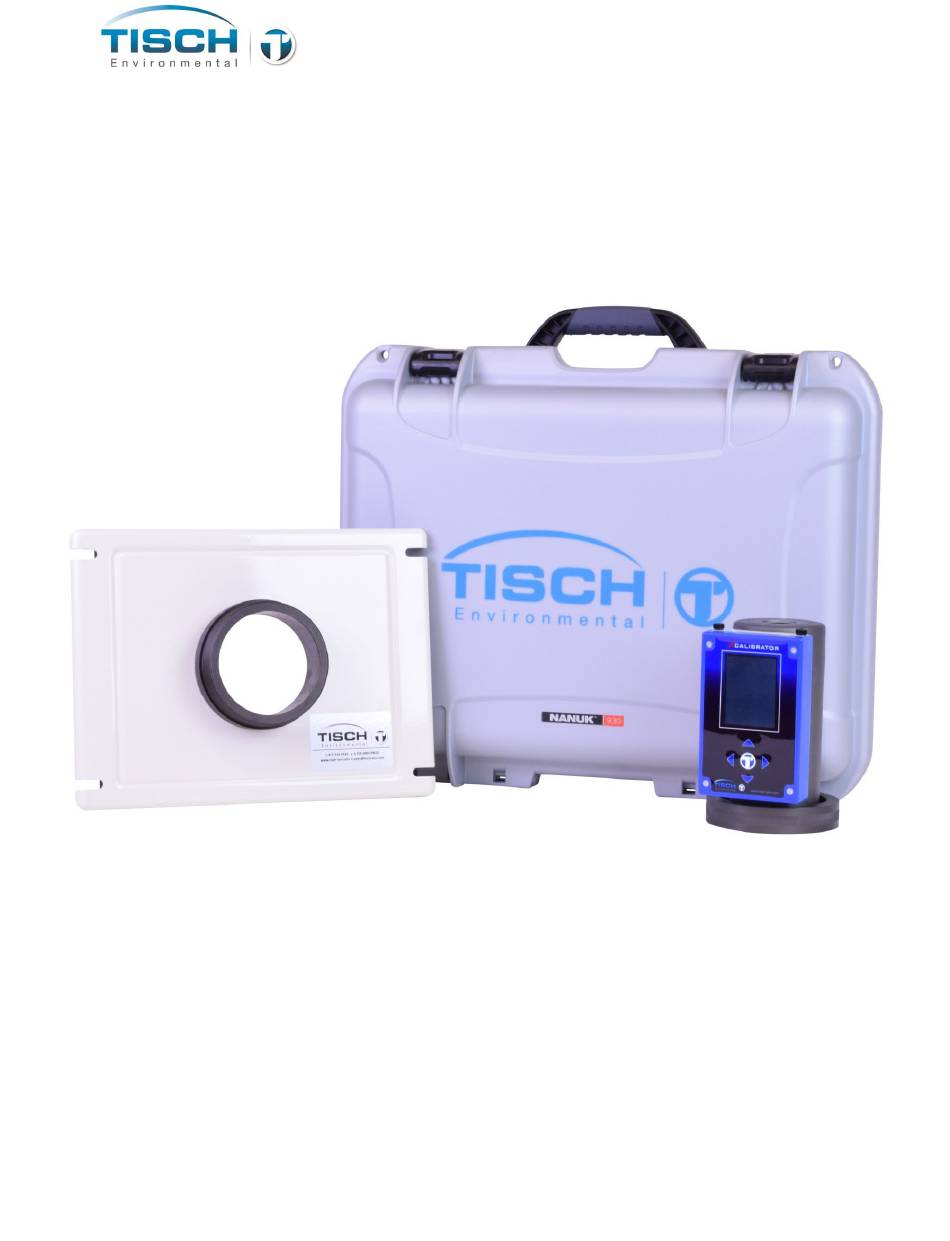

- Page 1 XCALIBRATOR OPERATIONS MANUAL REV 002 1/26/2018 Tisch Environmental X-Calibrator High Volume Calibrator Tisch Environmental 1-877-263-7610 sales@tisch-env.com www.tisch-env.com Page 1 of ...
-
Page 2: Table Of Contents
XCALIBRATOR OPERATIONS MANUAL REV 002 1/26/2018 TE-HVC X-Calibrator Operations Manual Table of Contents 1.0 Introduction ................. 3 1.1 X-Calibrator Overview ..................3 1.2 Copyrights and Trademarks ................3 1.3 Warranty ......................3 1.4 Symbols Used in This Document .................4 1.5 Recertification .....................4 Part Numbers for Recertification ................4 1.6 Ratings.........................5... -
Page 3: Introduction
XCALIBRATOR OPERATIONS MANUAL REV 002 1/26/2018 1.0 Introduction 1.1 X-Calibrator Overview The X-Calibrator is an advanced high-volume calibrator that can be used to calibrate high-volume air sampling equipment such as TSP, PM10 and PUF samplers. The system utilizes a 32-bit microprocessor and a precise pressure sensor to monitor pressure within the calibration orifice. -
Page 4: Symbols Used In This Document
Per USEPA requirements, this instrument should be recertified on an annual basis. Recertification can be performed at our laboratory in Cleves, OH. Simply send the unit to us at: Tisch Environmental Attn: Recertification 145 South Miami Ave. Cleves, OH 45002 Or call us at 1-877-TSP-PM10, email at sales@tischenv.com to setup a... -
Page 5: Ratings
(25ºC and 760 mmHg) – TE-HVC-H and TE- HVC-P Mid-Volume Air Calibrator Ambient Temperature Range -35ºC to 65ºC with an accuracy of ± 2.0ºC Barometric Pressure Range 650 to 825 mmHg with an accuracy of ±10mmHg Tisch Environmental 1-877-263-7610 sales@tisch-env.com www.tisch-env.com Page 5 of ... -
Page 6: Xcalibrator Ordering Information
TE-5018 8” x 10” replacement gasket for TE-5035 adapter plate TE-5028-13 Gasket with pressure sensitive adhesive for all orifices TE-5035 Adapter plate for PM10 and TSP TE-HVC-003 Battery cover Tisch Environmental 1-877-263-7610 sales@tisch-env.com www.tisch-env.com Page 6 of ... -
Page 7: Menu Navigation
Press and hold the ENTER button for longer than 10 seconds, or Press the RIGHT arrow to get to the main menu Press the DOWN arrow until POWER OFF is shown Press the ENTER button or the RIGHT arrow button Tisch Environmental 1-877-263-7610 sales@tisch-env.com www.tisch-env.com Page 7 of ... -
Page 8: Menu Structure
Sensors Proceeds to Sensors menu Proceeds to the LCD menu Power Indicates the power level and power source Power Off Powers off the X-Calibrator Exit Exits to Measurements menu Sensors Menu Description Qstd Shows the current value and proceeds to Qstd setup menu... -
Page 9: Available Sensor Units
Cubic feet per minute (CFM) Liters per minute (LPM) Cubic meters per minute (M3M) Pressure Millimeters of Mercury (mmHg) Inches of Mercury (InHg) Millimeters of Water (mmH Inches of Water (InH Millibars Tisch Environmental 1-877-263-7610 sales@tisch-env.com www.tisch-env.com Page 9 of ... -
Page 10: Operation
3.0 Operation 3.1 Zeroing unit on Power Up When the X-Calibrator is powered on, it will zero all of it’s sensors……. 3.2 Setting the date and time To set the date and time perform the following from the measurement menu:... -
Page 11: Setting The Backlight Timer
Scroll down to CONFIGURE and press ENTER Press ENTER at UNITS Use the UP/DOWN arrow keys to select the units and press ENTER Use the LEFT arrow to return to the previous menu(s) Tisch Environmental 1-877-263-7610 sales@tisch-env.com www.tisch-env.com Page 11 of ... -
Page 12: Changing Sensor Precision
Scroll down to CONFIGURE and press ENTER Scroll down to PRECISION and press ENTER Use the UP/DOWN arrow keys to select the precision value and press ENTER Use the LEFT arrow to return to the previous menu(s) Tisch Environmental 1-877-263-7610 sales@tisch-env.com www.tisch-env.com Page 12 of ... -
Page 13: Changing The Batteries
XCALIBRATOR OPERATIONS MANUAL REV 002 1/26/2018 3.7 Changing the batteries The X-Calibrator requires power from (4) AA batteries or can be powered from a PC or the included AC to USB adapter. To replace the batteries Remove the (2) black knurled screws on top of the unit and remove the battery compartment cover. -
Page 14: Appendix A: Revision History
XCALIBRATOR OPERATIONS MANUAL REV 002 1/26/2018 Appendix A: Revision History Revision No. Date Description REV001 2-13-15 Manual created REV002 1-26-18 Changed Qstd temperature from 21 to 25°C which was a typo Tisch Environmental 1-877-263-7610 sales@tisch-env.com www.tisch-env.com Page 14 of ...
