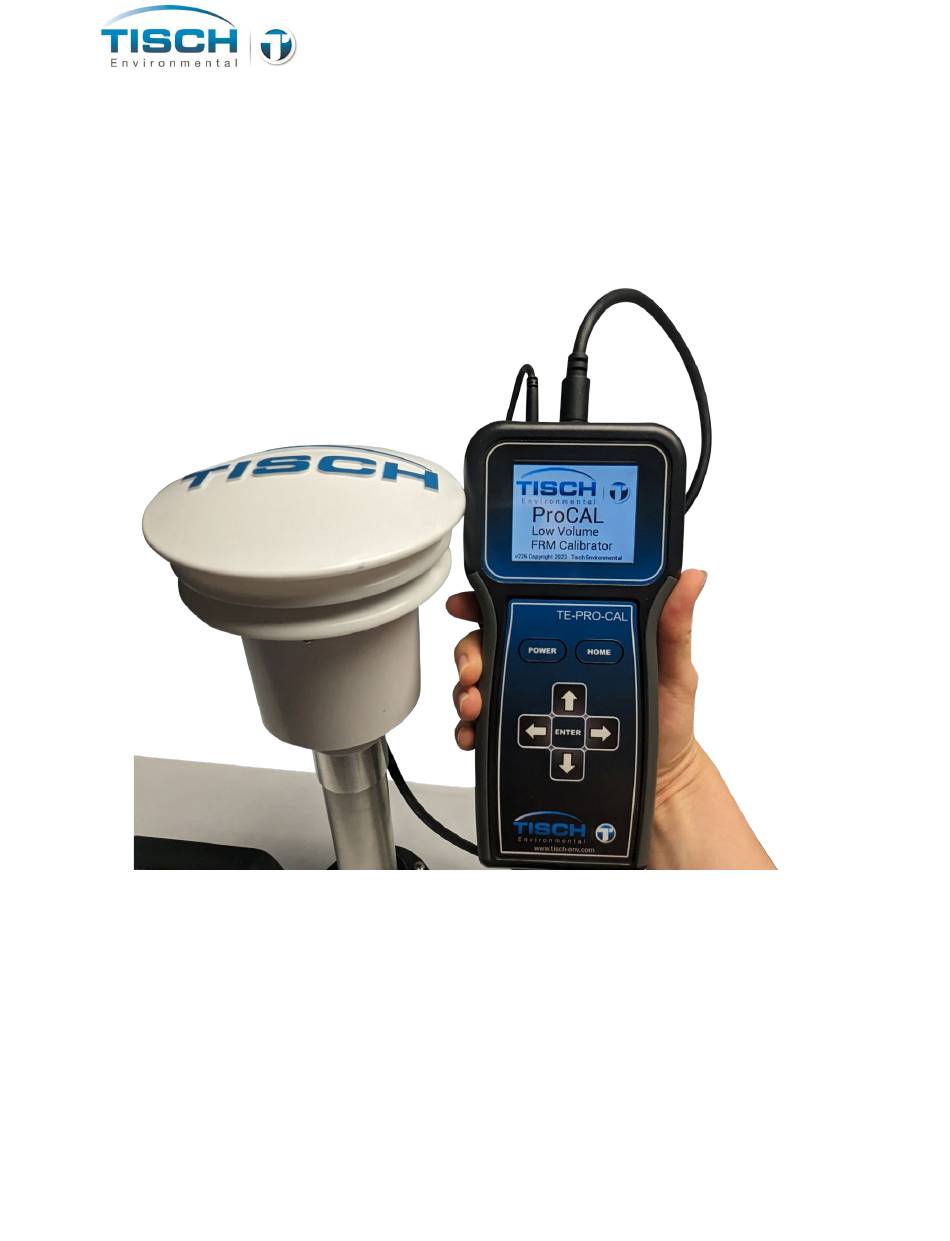

- Page 1 TE-PRO-CAL OPERATIONS MANUAL REV 001.0 8/9/2023 Tisch Environmental TE-PRO-CAL Low Volume Calibrator Tisch Environmental 1-877-TSP-PM10 sales@tisch-env.com www.tisch-env.com Page 1 of ...
-
Page 2: Table Of Contents
TE-PRO-CAL OPERATIONS MANUAL REV 001.0 8/9/2023 TE-PRO-CAL Operations Manual Table of Contents 1.0 Introduction ................. 3 1.1 TE-PRO-CAL Overview ..................3 1.2 Copyrights and Trademarks ................3 1.3 Warranty ......................3 1.4 Symbols Used in This Document .................4 1.5 Recertification .....................4 Part Numbers for Recertification ................4 1.6 Ratings and Specifications ..................5... -
Page 3: Introduction
TE-PRO-CAL OPERATIONS MANUAL REV 001.0 8/9/2023 1.0 Introduction 1.1 TE-PRO-CAL Overview The TE-PRO-CAL is an advanced low volume calibrator that can be used to calibrate low-volume air sampling equipment such as the TE-Wilbur low volume sampler, the BGI PQ200, Thermo Partisol and other low-volume instruments that operate at 16.67 lpm. -
Page 4: Symbols Used In This Document
TE-PRO-CAL OPERATIONS MANUAL REV 001.0 8/9/2023 1.4 Symbols Used in This Document The following symbols are used in this document. General Attention – this symbol is used to make the operator aware of an important directive. 1.5 Recertification Per USEPA requirements, this instrument should be recertified on an annual basis. -
Page 5: Ratings And Specifications
TE-PRO-CAL OPERATIONS MANUAL REV 001.0 8/9/2023 1.6 Ratings and Specifications Power 4AA Batteries Display 2.8” Diagonal 240x320 Color Operating Temperature -20ºC to 55ºC Weight 9lbs. (3.63kg) Complete with case 10lbs 17x14x8” shipping weight and dimensions 2.0 lbs. (0.91kg) hand-held and head unit Flow System Range 5 to 20 SLPM with an accuracy of ±... -
Page 6: Te-Pro-Cal Ordering Information
TE-PRO-CAL OPERATIONS MANUAL REV 001.0 8/9/2023 1.7 TE-PRO-CAL Ordering Information TE-PRO-CAL TE-FRM-CAL ranged 5-20 SLPM Rugged Carrying Case Hand-held unit Calibration head with connection cable 4AA Batteries included Filter temperature probe NIST traceable calibration certificate TE-PRO-CAL-059 Recertification of TE-PRO-CAL calibrator... -
Page 7: Menu Navigation
2.0 Menu Navigation 2.1 Button Configuration The TE-PRO-CAL has (4) arrows for navigating up, down, left and right along with a enter button in the center, a power button and home button. 2.2 Powering ON/OFF the Unit / Button Configuration... -
Page 8: Menu Structure
TE-PRO-CAL OPERATIONS MANUAL REV 001.0 8/9/2023 2.3 Menu Structure ITEM DESCRIPTION Ambient Temperature in Degrees Celsius Ambient Barometric Pressure Reading in mmHg Flow Rate in LPM Venturi Pressure bar graph Filter temperature in Degrees Celsius (reads N/A when not connected) Battery level indication Date and Time –... - Page 9 TE-PRO-CAL OPERATIONS MANUAL REV 001.0 8/9/2023 Pressing the ENTER button will enter the setup menu. Pressing the HOME button will go back to the previous screen. Pressing the RIGHT and LEFT ARROW keys will navigate between items. SETUP MENU DESCRIPTION SYSTEM Enters the system setup menu.
-
Page 10: Operation
TE-PRO-CAL OPERATIONS MANUAL REV 001.0 8/9/2023 3.0 Operation 3.1 Connecting the Handheld to the Head Unit NOTE: The hand-held unit should be powered down before connecting the calibration head unit. With the hand-held unit powered OFF connect the cable from the calibration... -
Page 11: Replacing The Batteries
TE-PRO-CAL OPERATIONS MANUAL REV 001.0 8/9/2023 3.2 Replacing the Batteries The TE-PRO-CAL requires (4) AA batteries. To replace the batteries: Remove the rear battery cover by pushing down and sliding off the cover. Replace the batteries noting the direction of the batteries by the sticker located in the bottom of the battery compartment.
