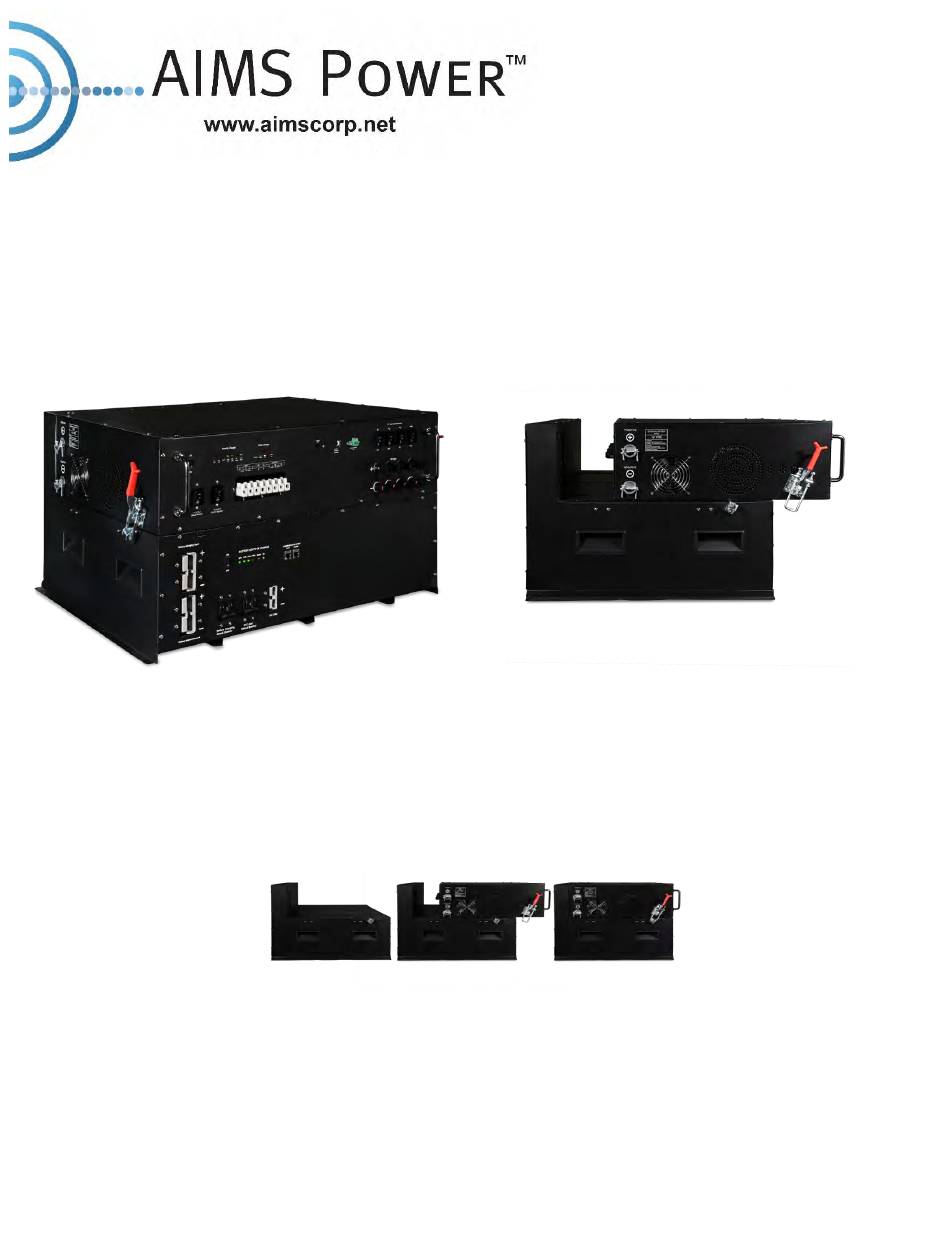

- Page 1 ALL IN ONE SOLAR POWER BOX USER’S MANUAL PART #: AIO-12V...
-
Page 2: Table Of Contents
INVERTER ........................10 SOLAR PV ........................11 BATTERY ........................11 START UP ........................14 SPECIFICATIONS ...................... 18 AIMS POWER LIMITED WARRANTY ................ 20 SAY GOODBYE TO LOUD GENERATORS AND USE THE ALL IN ONE SOLAR POWER BOX! PART #: AIO-12V... -
Page 3: Product Description
Suitable for industrial applications, remote locations, and emergency backup systems. Why Choose Our Power Unit Over Competitors? Superior Capacity: With a 5.120 kWh battery, our unit offers double the capacity of most competitors, ensuring you have more power when you need it. PART #: AIO-12V... -
Page 4: Important Safety Informaton
Read this manual before installation, as it contains important safety, installation and operating instructions. Keep it in a safe place for future reference. All references to “AIO” throughout the manual are for the All-In-One Solar Power Box, part # AIO-12V. •... - Page 5 Do not attempt to charge or discharge a damaged battery Keep battery out of extreme weather elements. Store and operate indoors. Do not connect any AC conductors or photo-voltaic conductors directly to the battery pack Remove all jewelry during handling PART #: AIO-12V...
-
Page 6: Unpacking
(backup) systems Knowledge of the dangers and risks associated with installing and using electrical devices at possible dangerous voltages is the responsibility of the user not AIMS Power Electrical certification and/or training is strongly recommended Make sure all power is off and wires are disconnected when maintaining/servicing the AIO. -
Page 7: Installation
6. AC Input and Output (See page 15 for wire diagram): Wire the AC input or shore power from the source to the AIO-12. Ensure the supply breaker remains in the off position. Then wire the AC output to breaker panel. PART #: AIO-12V... - Page 8 ALL IN ONE SOLAR POWER BOX 265 lbs Only mount the unit in this position. Do not mount on its side. Allow airflow to circulate. PART #: AIO-12V...
- Page 9 ELECTRONICS MODULE INVERTER | SOLAR PV | BREAKERS PART #: AIO-12V...
-
Page 10: Inverter
INVERTER The AIMS Power AIO delivers 3000 Watts of pure sine wave power with a 50 amp bypass, multi-stage battery charger, and AC auto-transfer switch—all seamlessly integrated into one unit. Designed for efficiency, it boasts a peak conversion rate of 88%, ensuring reliable performance for demanding applications. -
Page 11: Solar Pv
Auto Generator Start: Use 18 AWG speaker style type wire. Remote Port: This port can be used with the AIMS Power LCD remote display part # REMOTELF or the Bluetooth dongle part # BT-AIMS-Pro. The Bluetooth dongle allows you to monitor your device using a cell phone. - Page 12 Whether you're powering an RV, solar setup, or backup energy source, this battery delivers consistent, high-output performance you can trust. Experience next-level power without compromise—get the AIMS Power 12V 400Ah LiFePO4 Battery today. Recommended Cables (not included): •...
- Page 13 1. Turn off DC load (inverter). 2. Turn off battery pack. For parallel connected batteries, turn off power switch one by one. 3. Within a few seconds, the internal main relay will cut off, all LEDs off. RUN LED(green) System working normal PART #: AIO-12V...
-
Page 14: Start Up
Once battery(s) are turned on you can now tun on the inverter with top power switch to ON. Once on it is now safe to tun on all DC and AC breakers one by one on the AIO-12 PART #: AIO-12V... - Page 15 AC Wiring PART #: AIO-12V...
- Page 16 PART #: AIO-12V...
- Page 17 Low AC input voltage. Loose battery or AC input connections. Charger turns OFF while charging High AC input voltages from the Load the generator down with a from a generator. generator. heavy load. Turn the generator output voltage down. PART #: AIO-12V...
-
Page 18: Specifications
90V±4% Low Voltage Re-engage 100V±4% High Voltage Trip 140V±4% Bypass & High Voltage Re-engage 135V±4% Protection Max Input AC Voltage 150VAC Nominal Input Frequency 60Hz Low Freq Trip 40±0.3Hz Low Freq Re-engage 42±0.3Hz High Freq Trip 70±0.3Hz PART #: AIO-12V... - Page 19 26" x 32" x 14" Auxillary Lithium Battery Dimensions Auxillary Lithium Battery Weight 125 lbs 163 lbs shipped Shipping Weight 298 lbs Freight Only (ships on different pallets) Display Status LEDs and Optional External LCD Standard Warranty 2 Year PART #: AIO-12V...
-
Page 20: Aims Power Limited Warranty
AIMS is not liable for indirect, special, or consequential damages. This warranty applies only to AIMS Power branded products. Other brand-name products are covered by their respective manufacturers' warranties. Please do not return non-AIMS Power branded products to AIMS Power.
