A-Tach 10110 Manual

A-Tach # 10110
Holder for Large & Thick Phones
NOTICE: Before you attach the device holder onto the vehicle mount, attach the
vehicle mount onto the vehicle to ensure a proper fit.
Instructions are provided for your convenience. You are responsible to determine if you have the skill to
attach the solution to your vehicle.
A-Tach solutions consist of two separated parts that
are brought together to create a secure mounting
solution. The first part is the vehicle mount and the
second part is the device holder.
Attention: Read all instructions and review the images
before attaching this product.
The holder will fit devices with these dimensions:
** Remember to consider the case when measuring.
See additional instructions on the back side.
4 - #6 X 3/8 inch
Black Pan Head
screws are
included.
Minimum width 50 mm or 1 15/16 inches
Maximum width 95 mm cm or 3 3/4 inches
Maximum thickness 18 mm or 11/16 inches

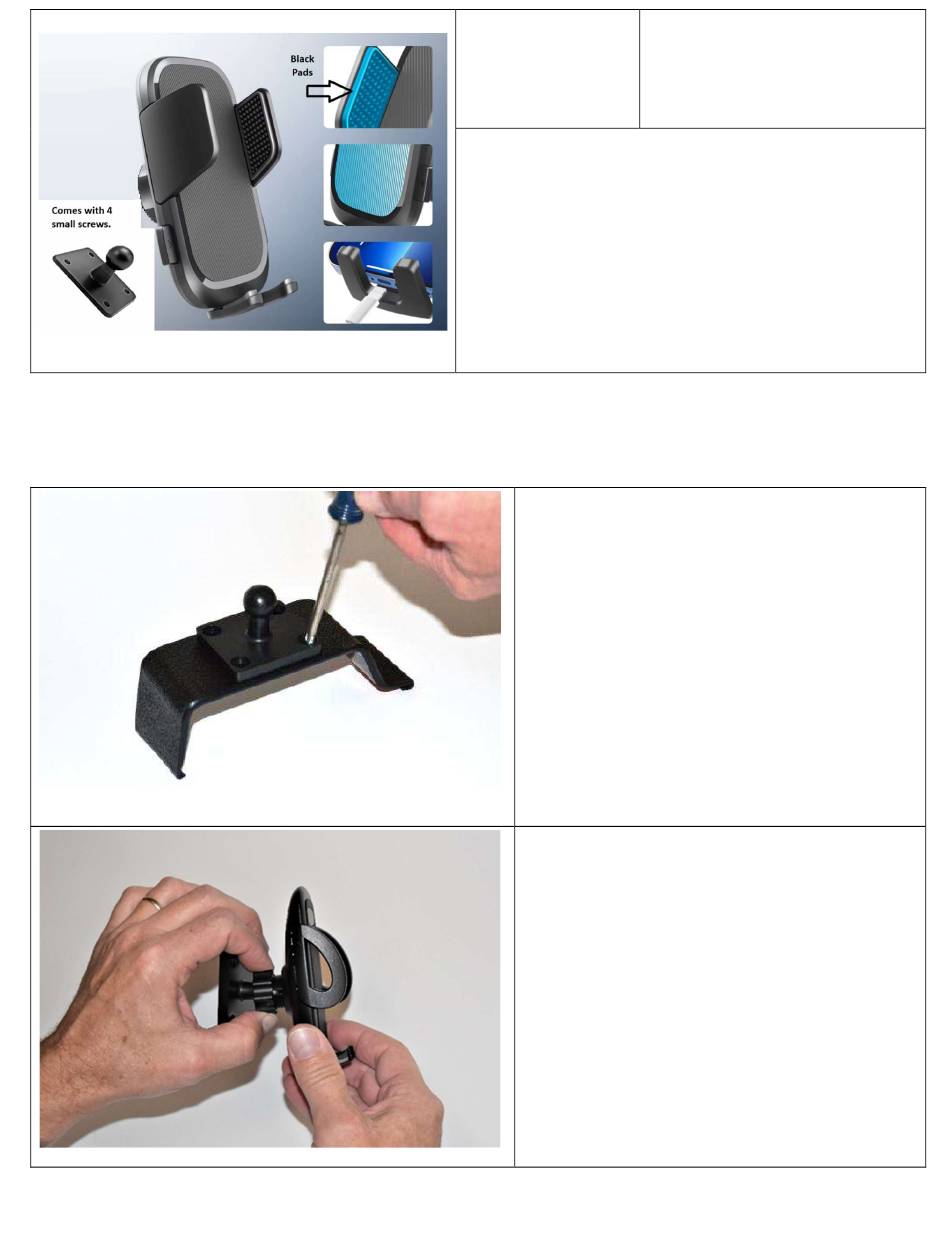

(1) Illustration photo only.
Remove the ball base from the holder by

loosening the ring.
Then align the ball base of the holder with

the suggested holes in the A-Tach vehicle
mount.
Attach the holder base using the included

screws.
Remember to press in on the screws

while turning them into the plastic
mount.
CAUTION: Do not over tighten the screws.
The steel screws are self-threading and will
create their own threads while turning into the
plastic mount.
(2) Once the ball base is on the mount,
Place the ring all the way over the ball on

the base.
Then take the holder and press the socket

on the back of the holder onto the ball on
the base.
Press the ball all the way into the socket.

Then tighten the ring back onto the threads

on the socket.
Adjust the holder to the desired position

and tighten the ring to desired tightness.
A-Tach
Mobile Device Mounts
