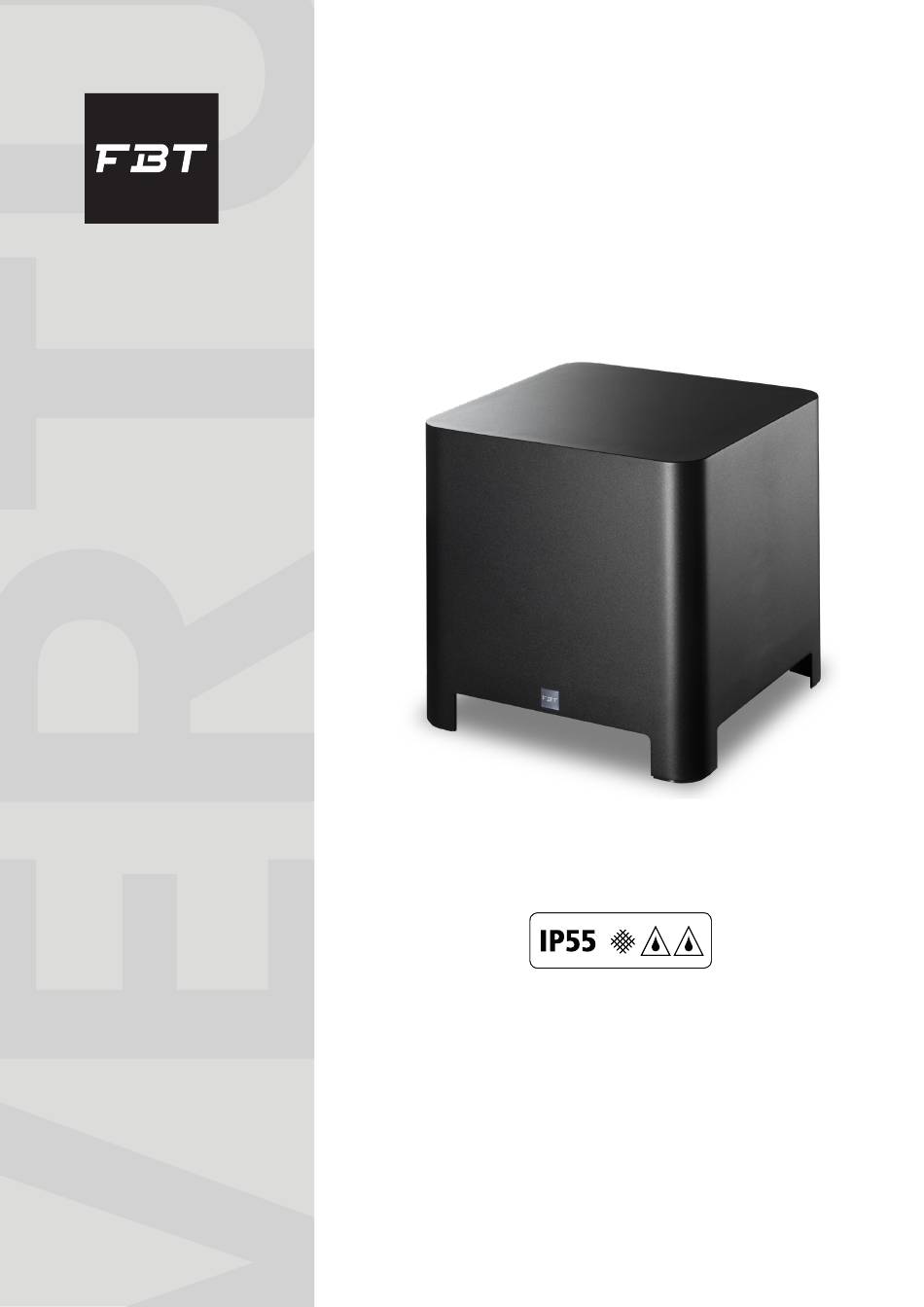

- Page 1 VERTUS CLA 112S Soun d R ein fo rc e me nt Su b w o ofe r CODE: 46843_rev.2 ITA / MANUALE D’USO #10-2024 ENG / OPERATING MANUAL...
-
Page 3: Table Of Contents
Keep this document in a safe place so that it is available for future referen- ce. We recommend you to regularly check the FBT website for the latest version of this document. When reselling this product, hand over this do- cument to the new owner. -
Page 4: Safety Precautions
FBT SpA will not assume any respon- sibility for the incorrect installation and/or use of this product. -
Page 5: General Features
GENERAL FEATURES Description Sleek and minimalistic lines distinguish the VERTUS CLA 112S, the new high excursion custom 12” passive subwoofer with 3” voice coil, IP55 weather resistant certification. The elegant design of the cabinet is com- pletely built from solid watertight aluminum which protects the low-fre- quency woofer from infiltrations of dust and water such to damaging the correct functioning of the speaker. -
Page 6: Dimensions
DIMENSIONS ONLY FOR GROUND STACK CONFIGURATION WARNING | FBT ELETTRONICA SpA accepts no responsibilities for any possible damages or injuries due to the use of supports or structures not strong enough or due to wrong installation. -
Page 7: Inputs & Outputs
INPUTS & OUTPUTS Barrier terminal block connector Connect the positive wire (amplifier “+” output) to the pin “INPUT +” of the 4-pin EUROBLOCK connector. Connect the negative wire (amplifier “-” output) to the pin “INPUT -” of the 4-pin EUROBLOCK connector. The “LINK +” and “LINK -” pins are useful to link another loudspeaker in parallel. -
Page 8: Dimensional Drawing
• After completing the installation, perform a final check to ensure that no components are loose, thus ensuring the safety and stability of the assembly. • FBT ELETTRONICA SpA disclaims any liability for damages or inju- ries caused by supports/structures, an incorrect choice of mounting ANTI-THEFT BRACKET location, improper installation, or improper use of the product. - Page 9 ACCESSORY INSTALLATION 1. Use the subwoofer’s mounting holes to attach the anti-theft bracket, using the provided M8x30 screw. 2. Ensure that the screw is tightened securely. 3. To provide additional security and stability, apply thread-locking adhesive. 4. Rotate the anti-theft bracket to the desired position. 5.
-
Page 10: Techinical Specifications
127 / 130 Dispersion H° x V° Omnidirectional Recommended HP filter Hz - 24 oct 35 - 24 Authorized FBT preset for digital Recommended external filter processor or processed amplifier INPUTS & OUTPUTS Input connectors 4-pin Barrier terminal block AMPLIFIER... -
Page 11: Waste & Disposal
WASTE & DISPOSAL Product specifications Packing specifications Where affixed on the equipment or package, the barred waste bin sign indicates that the product must be separa- ted from other waste at the end of its working life for di- Corrugated sposal. - Page 14 Le informazioni contenute in questo manuale sono state scrupolosamente controllate; tuttavia la FBT non si assume nessuna responsabilità per eventuali inesattezze. La FBT Elettronica SpA si riserva il diritto di modificare le caratteristiche tecniche ed estetiche dei prodotti in qualsiasi momento e senza preavviso. | All informations included in this operating manual have been scrupolously controlled; however FBT is not responsible for eventual mistakes. FBT Elettronica SpA has the right to amed products and specifications without notice.
