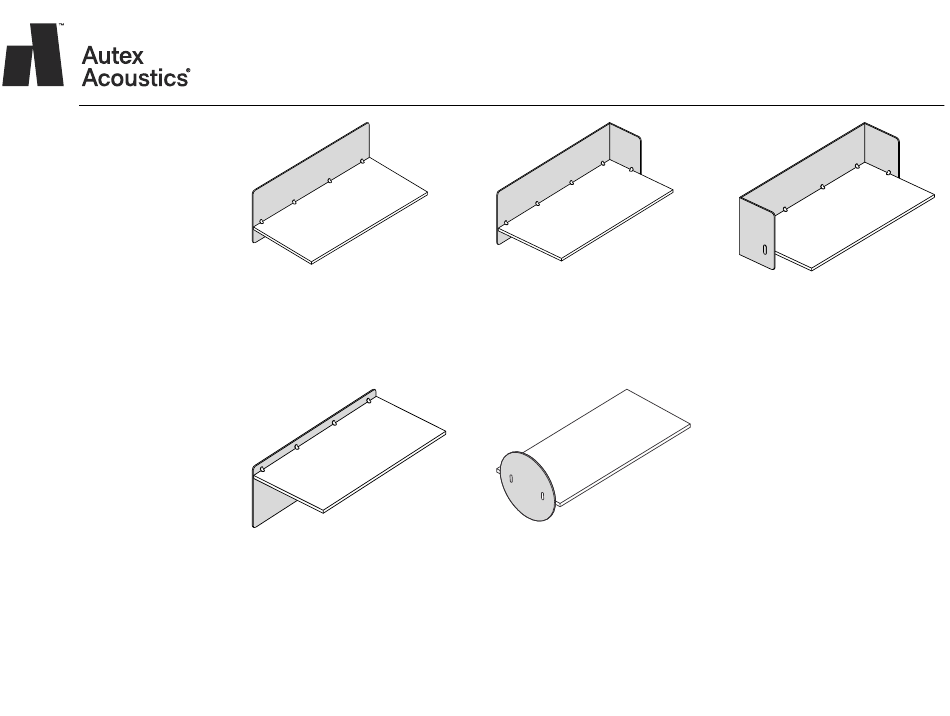

- Page 1 Vicinity Workstation Screens Install Instructions ™ Range overview Hedge Haven Nook 23 1/2” x 70”* 23 1/2” x 70” 23 1/2” x 70” Above dimensions are recommended sizing Modesty 23 1/2” 23 1/2” x 70”...
- Page 2 Attach clamps to screen Align the Vicinity Workstation Clamp with the holes in the Vicinity Workstation Screen and assemble the components as shown. Note: The plugs may need to be removed from the holes. Screen back Screen front Tighten the counter-sunk screw in place using the long end of a 4 mm Allen Key (not supplied). Repeat this step as required for the rest of the Vicinity Workstation Clamps.
- Page 3 Attach screen to desk Fold the Vicinity Workstation Screen around the corners of the desk and attach the Vicinity clamps as shown in the detail below. Tighten the grub screw and disk from the underside of the desk using the short end of a 3 mm Allen Key (not supplied) NOTE: Do not use high torque setting on power drill...
- Page 4 Detail dimensions Recommended heights Edge clearance Edge offset 15 1/2” Ensure there is no frame interference 23 1/2” 1 5/13” around clamping edges above 1/2” and below desk. 8” 1/2” 1 1/2” Minimum desk thickness Nominal desk thickness Maximum desk thickness (standard position) 5/8”...
