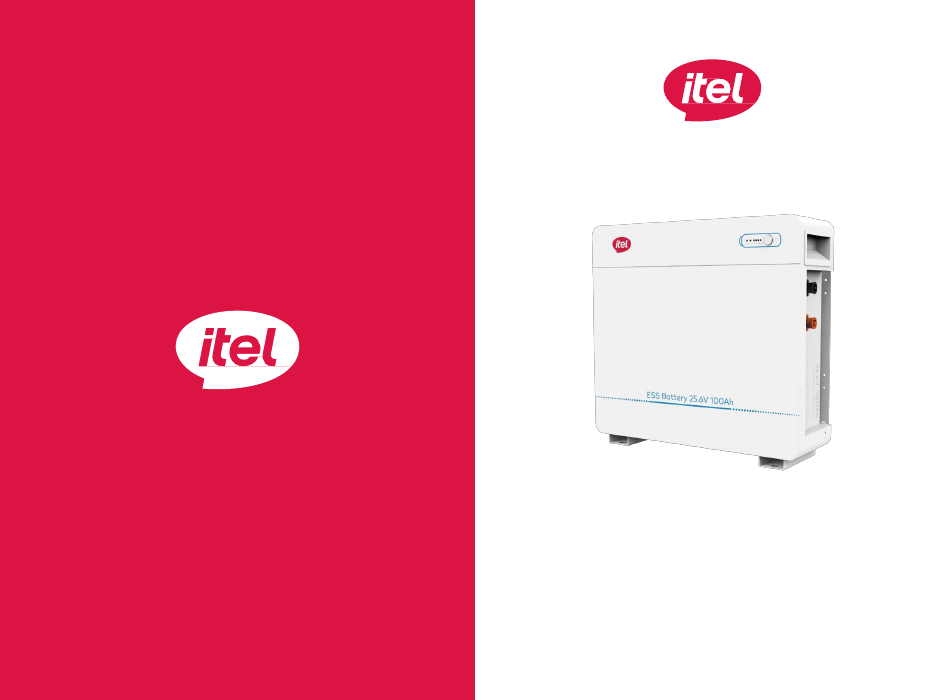

  • Page 1 Lithium-ion Battery Pack User's Manual www.itel-life.com...
  • Page 2: Table Of Contents

    CONTENT 1. Product overview 1. Product overview 1.1 Introduction: 1.1Introduction 1.2Features 4. Battery Use Instructions 1.3Specification And Performance 4.1Charging 1.3.1 4.2Discharge arameters 4.3Discharge temperature 1.3.2 nterface Definition 5. Notes for Product Use 1.3.3 5.1Processing all-mounted installation instructions 5.2Charging and Discharge 1.3.4 5.3Storage acking list...
  • Page 3 The model LiFePO battery pack is designed specifically for energy storage systems, with higher efficiency and higher reliability. With the intelligent battery management system, the intelligent battery detection system. This model of LiFePO battery pack is ideal for off-grid and hybrid utilization, providing a long- term built solution, and has the ability to deploy and use in a variety of scenarios, such as homes, farms, factories, data rooms, hotels, etc.
  • Page 4: Specification And Performance

    1.3.2 Interface Definition 1.3Specification and Performance: A) Battery Appearance 1.3.1 Parameters Project Conventional Parameters Battery Type LiFePO Model IPW-25100 Compound Mode 1P8S Rated Capacity 100Ah Nominal Voltage 25.6V Energy 2.56KWh Operation Voltage Range 20~29.2V B) Battery Size Maximum charging persistent current...
  • Page 5: Wall-Mounted Installation

    1.3.3 Wall-mounted installation C) Panel Interface Refer To The Following Figure Step 1: Use the M5*10 screws from the accessories to mount Square tube onto the battery pack, Tighten to a torque of 2.5 N.m.
  • Page 6 RJ45 interface, used for parallel communication or parallel operation RS485 battery status monitoring, manufacturer Step 2: Use the M4*8 screws from the accessories to mount support and cross bar, commissioning, and service Tighten to a torque of 1.5 N.m.
  • Page 7 1.3.4 Packing list Description Project Main unit *1 Battery negative terminal cable *1 Step 3: Use the M4*8 screws Install the hook on the back of the battery, Tighten to a torque of 1.5 N.m. Battery positive terminal cable *1 Battery parallel communication cable *1 Battery and Inverter communication cable *1 USER MANUAL*1...
  • Page 8: Battery Management System

    2. Battery management system 2.2Status indication 2.1Description of the LED indicator light Stand By Charging Discharge Capacity indicator light L4● L3● L2● L1● L4● L3● L2● L1● Battery Indicator LED Normal 0%~25% /Report an Flashing2 State illustrate emergency /protect ● ●...
  • Page 9: Communication

    3. Communication 3.2.2 Positive and negative wire connection method front view Negative busbar 3.1Communication instructions Positive busbar inverter 3.1.1 Parallel RS485 Equipped with dual RS485 interfaces, Can view battery information, The default ≤200m baud rate is 9600bps. To communicate with monitoring equipment through RS485, Monitoring equipment as host, Polling data based on address, Address setting range side view is 2-15.
  • Page 10: Dial Switch Settings

    3.3Dial switch settings 3.4 Interface definition When batteries are used in parallel, Different batteries can be distinguished by (1) Interface diagram setting the address through the dial switch on the BMS, Refer to the table below for RS485 the definition of BMS dial switch: CAN-H CAN-L The default dialing address is' 1 'for the host, '2-15' is the slave machine;...
  • Page 11: Battery Use Instructions

    4. Battery Use Instructions RS485--Adopting 8P8C vertical RJ45 socket RJ45 pin Definition Description 9, 16 RS485-B1 4.1Charging 10, 15 RS485-A1 ★ Charging current: cannot exceed the maximum charging current specified in this 11, 14 specification 12, 13 ★ Charging voltage: shall not exceed the maximum charging voltage specified in this specification RS485 interface ★...
  • Page 12: Discharge Temperature

    4.3 Discharge Temperature Metal Conductor. ★ Do Not Fire The Battery Pack Or Heat It. ★ Battery discharge must be within the temperature range specified in this ★ It Is Strictly Prohibited To Dissect The Battery Pack, Puncture The Battery Pack specification Immediately charging after a short time of excessive discharge will not With Nails Or Sharp Objects, Use Hammers Or Other External Forces, And Trample Or affect the use, but a long time of excessive discharge will lead to the loss of battery...
  • Page 13: Warranty Conditions

    6. Batteries must be provided with a refresh charge every 5-6 months, while in storage, itel Lithium Battery warranty prior to final installation. This limited warranty covers the itel Rechargeable Li-ion Battery models: IPW-51100 This warranty does not include any accessories and tool kit items provided along with the product.
  • Page 14 11.The battery will not be considered effective unless it fails to deliver 50% or less of its rated capacity during claimed warranty period. 12.If the battery is interconnected or mixed with other non-itel batteries the warranty is void. 13.Warranty will be void if the installation or commissioning has not been performed by an itel approved installer.
  • Page 15: Warranty Claim Process

    Fault Description 3rd party testing company. You will bear the cost of any 3rd party evaluation service charge. (Unless your claim is proven to be valid, in which case itel will be responsible for the testing costs) If any testing of the Products capacity is required, the testing must occur in the...
