Itel IPL-51100 User Manual

Lithium-ion battery pack

Advertisement

Quick Links

Lithium-ion Battery Pack
User's Manual
www.itel-life.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPL-51100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Itel IPL-51100

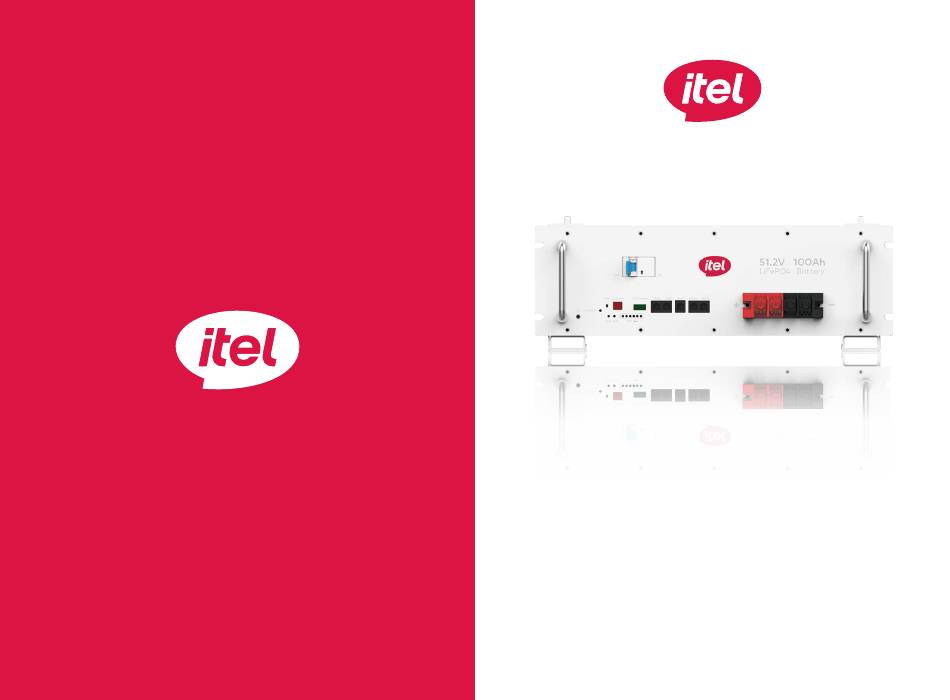

  • Page 1 Lithium-ion Battery Pack User's Manual www.itel-life.com...
  • Page 2: Table Of Contents

    CONTENT 1. Product overview 1.1 Introduction: 1. Product overview 1.1 Introduction 1.2 Features The model LiFePO₄ battery pack is designed specifically for energy storage systems, 1.3 Specification And Performance with higher efficiency and higher reliability. With the intelligent battery management 1.3.1 Parameters system, the intelligent battery detection system.
  • Page 3: Specification And Performance

    1.3.1 Parameters Project Conventional Parameters Weight 50±3%KG Battery Type LiFePO4 Live Capacity Of Products Shipped 40% -60% Electricity delivery Model IPL-51100 Packaging Material Carton Compound Mode 4P16S Communication RS485 / RS232 / Dry Contact Point Rated Capacity 100Ah Nominal Voltage 51.2V...
  • Page 4: Interface Definition

    1.3.2 Interface Definition C) Panel Interface Refer To The Following Figure A) Battery Appearance 3 4 5 6 7 Number Project Description B) Battery Size Air Switch Turn off the positive terminal suboutput to protect the battery 460mm Grounding point Ensure product safety and grounding Reset Key Sleep / activation / reset...
  • Page 5: Battery Management System

    2.2 Status indication 2. Battery management system 2.1 Description of the LED indicator light Stand By Charging Discharge Capacity indicator light L6● L5● L4● L3● L2● L1● L6● L5● L4● L3● L2● L1● Battery Indicator LED 0%~17% Flashing2 Normal /Report an /OFF State illustrate...
  • Page 6: Communication

    3. Communication 3.2.2 Positive and negative wire connection method 3.1 Communication instructions 3.1.1 Parallel RS485 Equipped with dual RS485 interfaces,,Can view battery information,The default baud rate is 9600bps。To communicate with monitoring equipment through RS485, Monitoring equipment as host,Polling data based on address,Address setting range is 2-15。...
  • Page 7: Dial Switch Settings

    3.3 Dial switch settings 3.4 Interface definition (1) Interface diagram When batteries are used in parallel,Different batteries can be distinguished by setting the address through the dial switch on the BMS,Refer to the table below for RS485 the definition of BMS dial switch: CAN-H CAN-L The default dialing address is' 1 'for the host,'2-15' is the slave machine;...
  • Page 8: Battery Use Instructions

    4. Battery Use Instructions RS485--Adopting 8P8C vertical RJ45 socket RJ45 pin Definition Description 4.1 Charging 9、16 RS485-B1 10、15 RS485-A1 ★ Charging current: cannot exceed the maximum charging current specified in this 11、14 specification 12、13 ★ Charging voltage: shall not exceed the maximum charging voltage specified in this specification RS485 interface ★...
  • Page 9: Discharge Temperature

    4. 3 Discharge Temperature Metal Conductor. ★ Do Not Fire The Battery Pack Or Heat It. ★ Battery discharge must be within the temperature range specified in this ★ It Is Strictly Prohibited To Dissect The Battery Pack, Puncture The Battery Pack With specification Immediately charging after a short time of excessive discharge will not Nails Or Sharp Objects, Use Hammers Or Other External Forces, And Trample Or Fall The affect the use, but a long time of excessive discharge will lead to the loss of battery...
  • Page 10 This limited warranty covers the Itel Rechargeable Li-ion Battery models: IPL- 51100 will invalidate the warranty. The Itel lithium-ion batteries have 5 year intended design life, or deliver at least 4000 6. Batteries must be provided with a refresh charge every 5-6 months, while in storage, discharges cycles at 80% depth of 0.2C discharge /0.2C charge, at 25 environment...
  • Page 11 15.A standard 5-year warranty is provided for the BMS and trip switch. The warranty of charge. (Unless your claim is proven to be valid, in which case Itel will be responsible for the trip switch does not cover excessive manual use or overuse of the trip switch. The the testing costs) trip switch is intended to protect the Lithium Battery.
  • Page 12: Warranty Form

    Warranty Form Note: Signature or Seal stamp required. Itel shall have no obligation for unqualified application such as incorrect information or missing necessary information Product Model Serial Number (S/N) Company Name Contact Person Contact Number Contact email Company Address Replacement...
