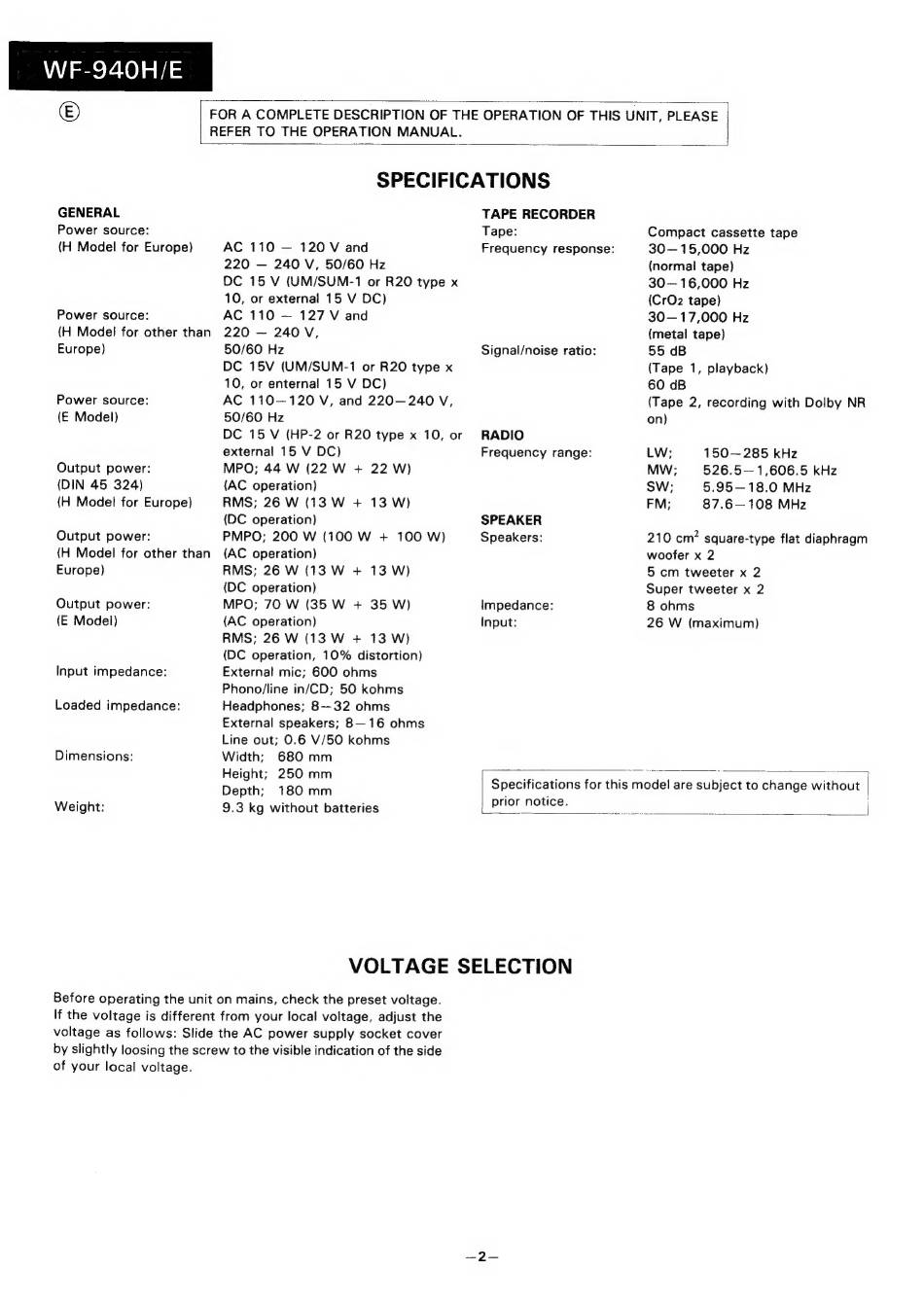

Sharp WF-940H Service Manual page 2

WF-940H/E
© FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE
REFER TO THE OPERATION MANUAL.
SPECIFICATIONS
GENERAL TAPE RECORDER
Power source: Tape: Compact cassette tape
(H Model for Europe) AC 110 — 120 V and Frequency response: 30— 15,000 Hz
220 — 240 V, 50/60 Hz (normal tape)
DC 15 V (UM/SUM-1 or R20 type x 30— 16,000 Hz
10, or external 15 V DC) (CrOz tape)
Power source: AC 110 — 127 V and 30—17,000 Hz
(H Model for other than 220 — 240 V, (metal tape)
Europe) 50/60 Hz Signal/noise ratio: 55 dB
DC 15V (UM/SUM-1 or R20 type x (Tape 1, playback)
10, or enternal 15 V DC) 60 dB
Power source: AC 110—120 V, and 220—240 V, (Tape 2, recording with Dolby NR
(E Model) 50/60 Hz on)
DC 15 V (HP-2 or R20 type x 10, or RADIO
external 15 V DC) Frequency range: LW; 150—285 kHz
Output power: MPO; 44 W (22 W
+ 22 W)
MW; 526.5—1,606.5
kHz
(DIN 45 324) (AC operation) SW; 5.95—18.0 MHz
(H Model for Europe) RMS; 26 W (13 W + 13 W) FM; 87.6—108 MHz
(DC operation) SPEAKER
Output power: PMPO; 200 W (100 W + 100 W) Speakers: 210 cm? square-type flat diaphragm
(H Model for other than (AC operation) woofer x 2
Europe) RMS; 26 W (13 W + 13 W) 5 cm tweeter x 2
(DC operation) Super tweeter x 2
Output power: MPO; 70 W (35 W + 35 W) Impedance: 8 ohms
(E Model) (AC operation) input: 26 W (maximum)
RMS; 26 W (13 W + 13 W)
(DC operation, 10% distortion)
Input impedance: External mic; 600 ohms
Phono/line in/CD; 50 kohms
Loaded impedance: Headphones; 8—32 ohms
External speakers; 8—16 ohms
Line out; 0.6 V/50 kohms
Dimensions: Width; 680 mm
Height;
250 mm
at
See
; 7
—~——
Depth; 180 mm Specifications for this model are subject to change without
tn nt ee oso J
VOLTAGE SELECTION
Before operating the unit on mains, check the preset voltage.
If the voltage is different from your local voltage, adjust the
voltage as follows: Slide the AC power supply socket cover
by slightly loosing the screw to the visible indication of the side
of your local voltage.
