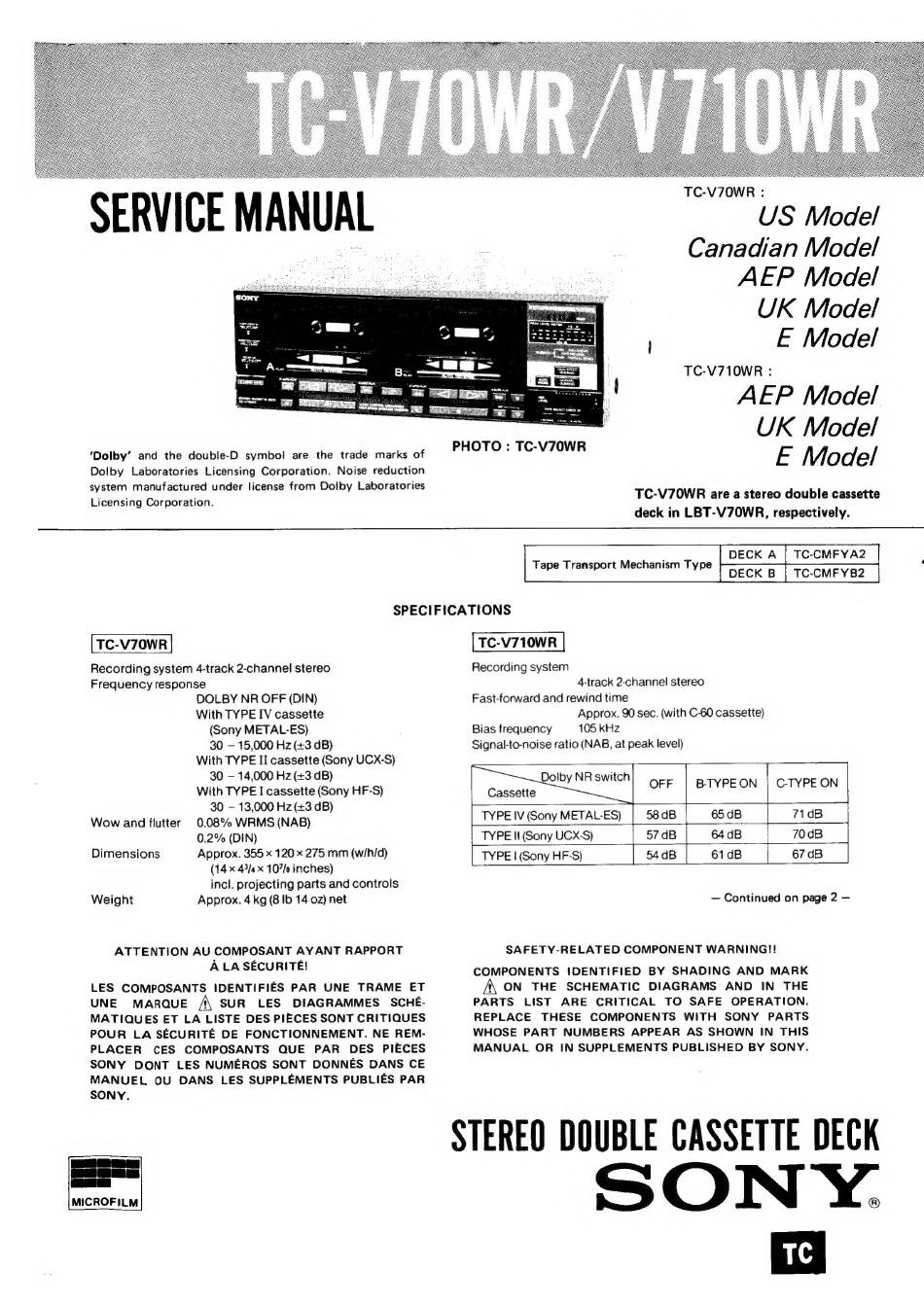

Sony TC-V70WR Service Manual

TC-V70WR :
US Model
Canadian Model
AEP Model
UK Model
E Model
TC-V710WR :
AEP Model
UK Model
TC-V70WR are a stereo double cassette
Licensing Corporation.
deck in LBT-V70WR, respectively.
DECK A | TC-CMFYA2
DECK B | TC-CMFYB2
Tape Transport Mechanism Type
SPECIFICATIONS
Recording system 4-track 2-channel stereo Recording system
Frequency response 4-track 2-channel stereo
DOLBY NR OFF (DIN) Fast-forward and rewind time
With TYPE IV cassette Approx. 90 sec. (with C-60 cassette)
(Sony METAL-ES) Bias frequency 105 kHz
30 - 15,000 Hz (+3 dB) Signal-to-noise ratio (NAB, at peak level)
With TYPE II cassette (Sony UCX-S)
30 - 14,000 Hz (+3 dB) Dolby NR switch
With TYPE
I cassette (Sony HF-S)
Cassene :
OFF | B-TYPEON | CTYPE ON
30 - 13,000 Hz (+3 dB)
Wow and flutter
0.08% WRMS (NAB)
TYPE IV (Sony METAL-ES)
58 dB | 65dB
71dB
0.2% (DIN)
TYPE I! (Sony UCX-S) 57 dB
| 64dB 70 dB
Dimensions Approx. 355 x 120 x 275 mm (w/h/d) TYPE | (Sony HF-S) 54 dB | 61dB 67 dB
(14 x 43/4 x 107/e inches)
incl. projecting parts and controls
Weight Approx. 4 kg (8 Ib 14 oz) net — Continued on page 2 —
ATTENTION AU COMPOSANT
AYANT RAPPORT
SAFETY-RELATED COMPONENT
WARNING!!
A LA SECURITE! COMPONENTS IDENTIFIED BY SHADING AND MARK
LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET A ON THE SCHEMATIC DIAGRAMS AND IN THE
UNE MARQUE A SUR LES DIAGRAMMES SCHE- PARTS LIST ARE CRITICAL TO SAFE OPERATION.
MATIQUES ET LA LISTE DES PIECES SONT CRITIQUES REPLACE THESE COMPONENTS WITH SONY PARTS
POUR LA SECURITE DE FONCTIONNEMENT. NE REM- WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
PLACER CES COMPOSANTS QUE PAR DES PIECES MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
SONY DONT LES NUMEROS SONT DONNES DANS CE
MANUEL OU DANS LES SUPPLEMENTS PUBLIES PAR
SONY.
STEREO DOUBLE CASSETTE DECK
SONY.
TC
