Marksman M10 Beacon
Intended Use

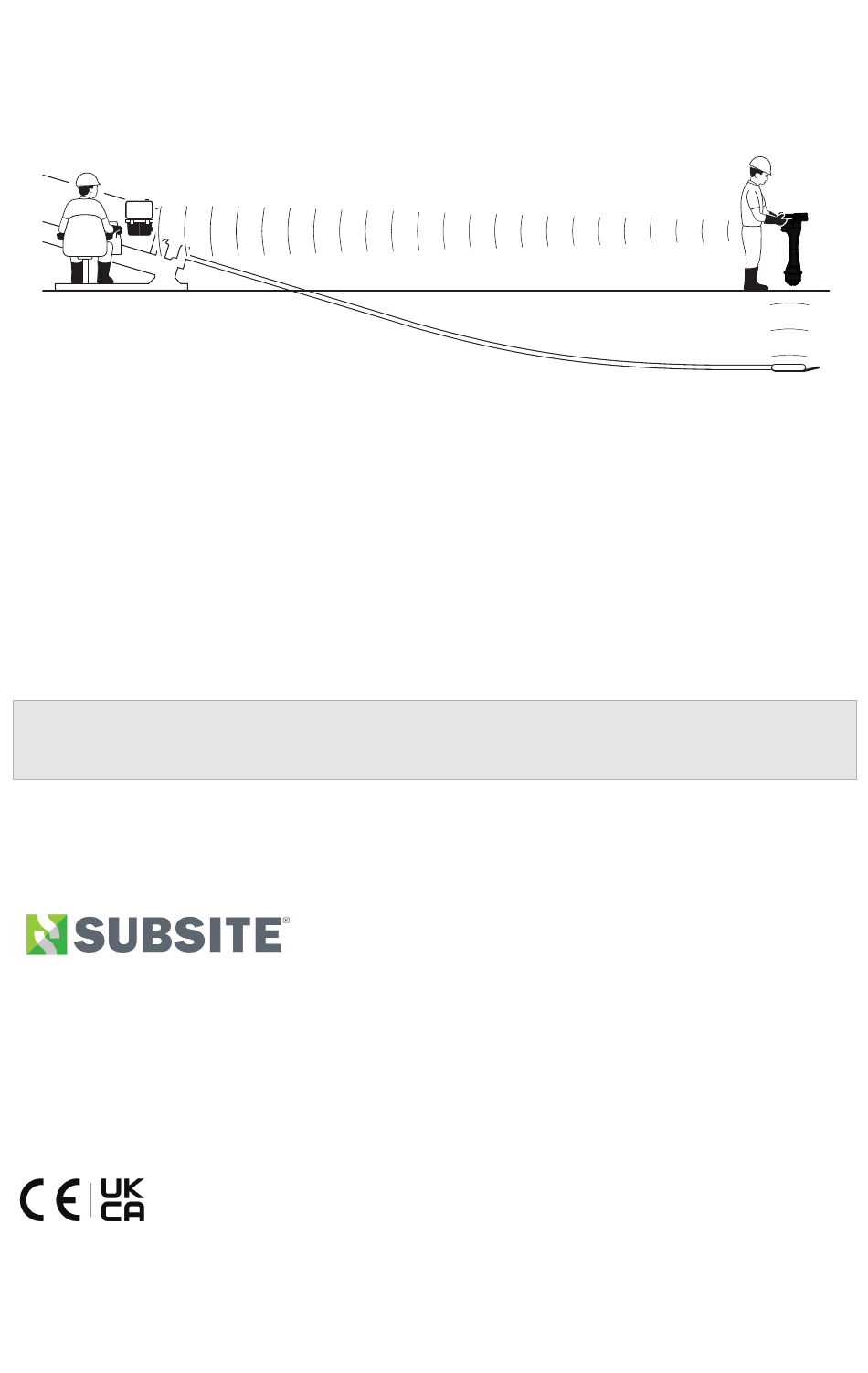

The Subsite® Marksman® M10 beacons are designed to function as one part of a
guidance system for horizontal directional drills. These beacons transmit roll,
temperature, battery status, and pitch information and should only be used in
Subsite-approved downhole tool housings.
This system is intended for operation only according to the instructions in this
manual. Operate equipment in temperatures from -4°F to 185°F (-20°C to 85°C).
Contact your Subsite dealer for provisions required for operating in extreme
temperatures. Use in any other way is considered contrary to the intended use.
NOTICE: High temperature is the primary cause of beacon failure. Monitor
beacon carefully. See "Communication Features" on page 6.
This product and its use may be covered by one or more patents at http://charlesmachine.works/
patents.
Subsite, Marksman, and Ditch Witch are registered trademarks
of Charles Machine Works, Inc.
ORIGINAL INSTRUCTION
1
790-10015
Rev A - 3/25
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Charles Machine Works Subsite Marksman M10 Beacon
Summary of Contents for Charles Machine Works Subsite Marksman M10 Beacon
- Page 1 NOTICE: High temperature is the primary cause of beacon failure. Monitor beacon carefully. See “Communication Features” on page 6. Subsite, Marksman, and Ditch Witch are registered trademarks of Charles Machine Works, Inc. This product and its use may be covered by one or more patents at http://charlesmachine.works/ patents.
- Page 2 Perry, OK 73077-0066 The descriptions and specifications in this manual are subject to change without notice. The Charles Machine Works, Inc. reserves the right to improve equipment. Some product improvements may have taken place after this manual was published. For the latest information on Ditch Witch equipment, see your Ditch Witch dealer.
- Page 3 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by The Charles Machine Works, Inc. could void the user’s authority to operate the equipment.
- Page 4 EU Declaration of Conformity Hereby, Charles Machine Works declares that the radio equipment type Marksman Series HDD tracking and guidance equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available by visiting https://subsite.com/about-us/contact-us or by emailing a request to service@subsite.com.
- Page 5 Guidelines Misuse of machine can cause death or serious injury. Read and understand operator’s manual and all other safety instructions before use. Know how to use all controls. Follow these guidelines before operating any jobsite equipment: • Complete proper training. •...
- Page 6 Communication Features IMPORTANT: • Beacon will sleep after ten minutes of inactivity. To wake, roll slowly. • Beacon operating time is counted while beacon is awake. Remove battery when not in use. Roll angle transmission: 24 positions Pitch: sent in 1% increments from -100% (45° down) to +100% (45° up) Battery: sent in 5% increments Beacon temperature: sent in 5°C increments NOTICE: Monitor beacon temperature carefully.
- Page 7 Install/Replace Battery NOTICE: Check condition and function of threads, foam washers, springs, and O-rings. Replace if needed. 1. Remove isolator (1). 2. Unscrew battery cap (2). 3. If replacing, remove used battery. 4. Check for and correct the following conditions: •...
- Page 8 Specifications Dimensions Metric Size 10.62 in x 0.75 in 269.24 mm x 19 mm Weight 0.39 lb 177 g Environmental Metric IP Rating IP67 Operating temperature -4° to 185°F -20° to 85°C Storage temperature -4° to 185°F -20° to 85°C Battery Metric 1.5V AA alkaline...
- Page 9 Support Procedure Notify your dealer immediately of any malfunction or failure of Subsite equipment. Always give model, serial number, and approximate date of your equipment purchase. This information should be recorded and placed on file by the owner at the time of purchase. Return damaged parts to dealer for inspection and warranty consideration if in warranty time frame.
- Page 10 Warranty Electronics Limited Warranty Policy Subject to the limitation and exclusions herein, free replacement parts and labor will be provided when a unit fails due to a defect in material or workmanship within one (1) year of first commercial use. (See exceptions below for specific products.) Defects shall be determined through inspection by Manufacturer or authorized repair centers.
- Page 11 ANY IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE ARE EXPRESSLY DISCLAIMED. IN NO EVENT SHALL SUBSITE, THE CHARLES MACHINE WORKS, INC., OR ANY AUTHORIZED SERVICING AUTHORITY BE RESPONSIBLE FOR ANY LOSSES, INCLUDING CONSEQUENTIAL AND INCIDENTAL DAMAGES, EXCEPT AS EXPRESSLY PROVIDED HEREIN.
- Page 12 California Proposition 65 Cancer, birth defects, and other reproductive harm. www.P65warnings.ca.gov.
