Universal Tool UT3 Operator Instructions

Operator Instructions
Includes - Foreseen Use, Work Stations, Putting Into Service,
Operating, Dismantling, Assembly and Safety Rules
Manufacturer/Supplier
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel (01494) 883300
Product Nett Weight
lbs
3.96 (Non DC) 4.18 (DC)
Kg
1.8 (Non DC) 1.9 (DC)
Air Pressure
Recommended Working
Recommended Minimum
Maximum
Personal Safety Equipment
Use - Safety Glasses
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors
Foreseen Use of Tool
This tool is designed for the purpose of cleaning or sanding
of a variety of materials typically metal, wood, plastic
materials, etc. The dual rotary orbital action reduces the
amount of abrasive grinding marks and hence is primarily a
finishing sanding tool. It can be used with a variety of grades
of 150 mm (6" diameter) abrasive discs which, according
to pad fitted to the tool, can be self adhesive or Velcro
attached. If fitted to the dust collecting system this should
always be used. The system may be integral or required to
be fixed to an external vacuum source.
The machine fitted with dust collection should not be used
with water. If use with water is required, water can act as
a dust suppressor and the dust collector would not be
required.
Do not use the tool for any other purpose to that for which
it has been designed and use only abrasive discs as described.
Do not modify the tool for any other use or for its use as
a sander without first consulting the manufacturer or his
authorised distributor.
Work Stations
The tool should only be used as a hand held
hand operated tool. It is always recommended
that the tool is used when standing on a solid
floor. It can be used in other positions but
before any such use the operator must be in
a secure position having a firm grip and
footing and be aware of the safety rules to
be obeyed when using the sander.
Fax (01494) 883237
Recommended Use Of
Balancer Or Support
No
6.3 bar 90 PSI
n/a bar n/a PSI
7.0 bar 100 PSI
Yes
Yes
Page No 1
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a
safe accessible place.
Product Type
Dual Action Sander -
6"(150mm) Pad
Model No/Nos
UT3 (HLC3)
UT3DC with Dust
Control (HLC3DC)
Recommended Hose Bore
Size - Minimum
3/8 Ins 10 M/M
Sound Pressure Level 86.8 dB(A)
Noise
Sound Power Level 97.6 dB(A)
Test Method Tested in accordance with
Pneurop test code PN8NTC1 and ISO
Vibration
Test Method Tested in accordance with ISO
standards 8662 Parts 1 & 8
Putting Into Service
Air Supply
Use a clean lubricated air supply that will give a measured
air pressure at the tool of 90 p.s.i./6.3 bar when the tool
is running with the trigger/lever fully depressed. Use
recommended hose size and length. It is recommended that

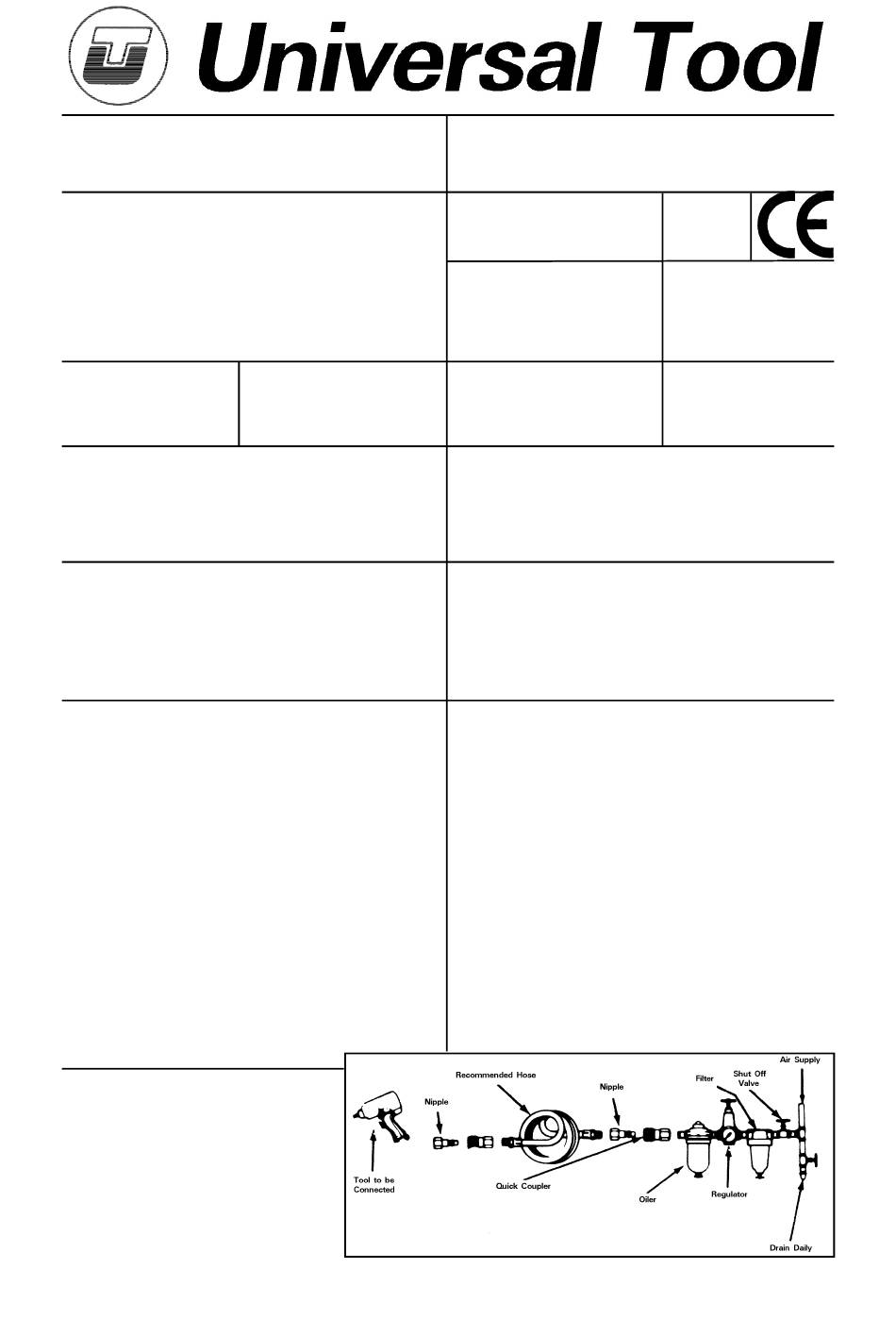

the tool is connected to the air supply as shown in figure
1. Do not connect the tool to the air line system without
incorporating an easy to reach and operate air shut off valve.
The air supply should be lubricated.
recommended that an air filter, regulator, lubricator (FRL) is
used as shown in Figure 1 as this will supply clean, lubricated
air at the correct pressure to the tool. Details of such
equipment can be obtained from your supplier. If such
equipment is not used then the tool should be lubricated by
shutting off the air supply to the tool, depressurising the line
by pressing the trigger on the tool. Disconnect the air line
and pour into the hose adaptor a teaspoonful (5ml) of a
RPM
10,000
Cycles Per
Serial No
Recommended Max.
Hose Length
30 Ft 10 M
5.1 Metres / Sec²
It is strongly
