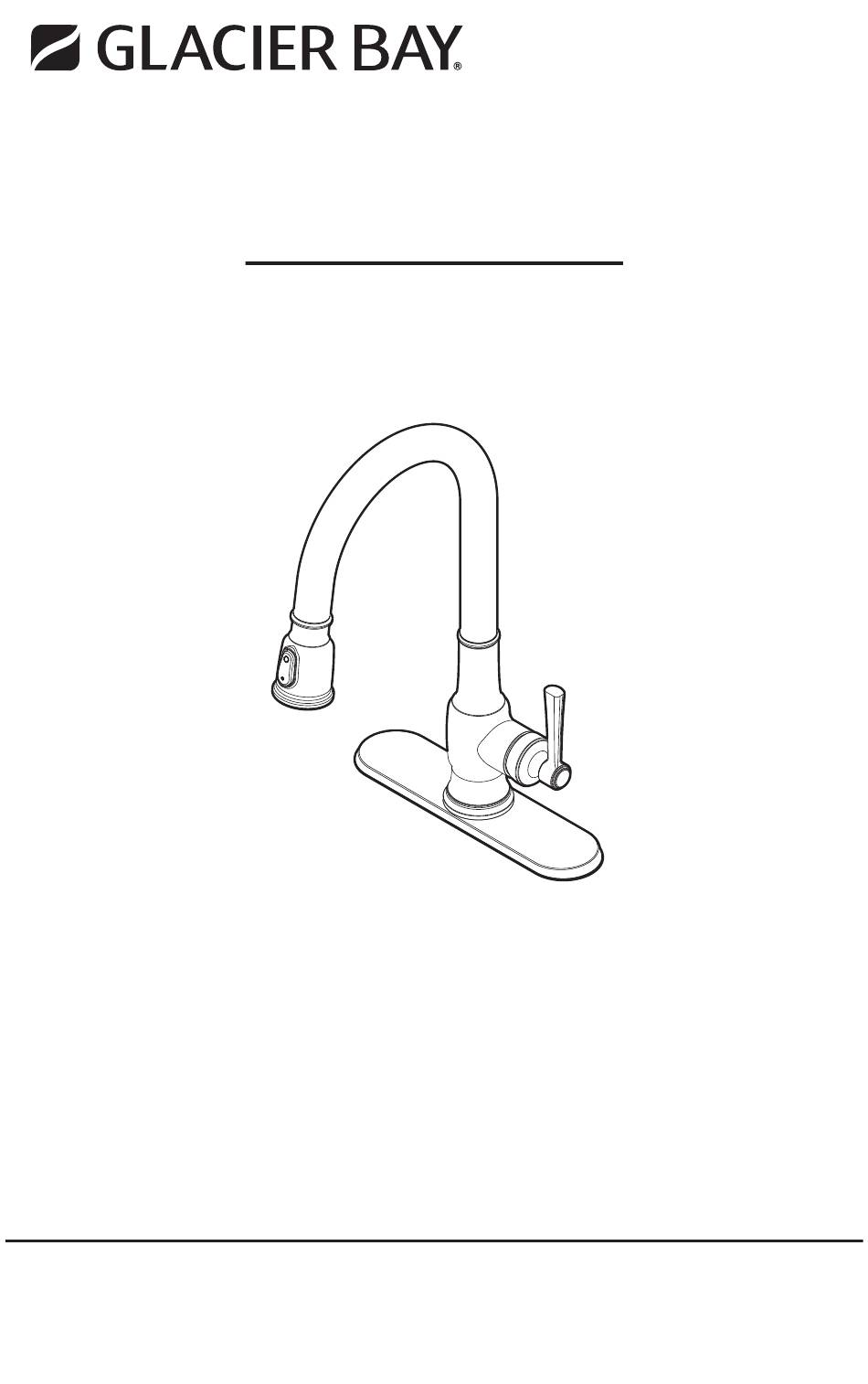

USE AND CARE GUIDE
PULL-DOWN KITCHEN FAUCET
Before returning to the store, call Glacier Bay Customer Service
We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
Questions, problems, missing parts?
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
THANK YOU
Model#
HDQFP1B4233CP
HDQFP1B4233SP
HDQFP1B4233BL
HDQFP1B4233CZ
SKU#
1012084861
1012084860
1012084867
1012084864

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDQFP1B4233CP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Glacier bay HDQFP1B4233CP

  • Page 1 HOMEDEPOT.COM/GLACIERBAY THANK YOU We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this kitchen faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
  • Page 2: Table Of Contents

    Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that prove defective.
  • Page 3: Package Contents

    Pre-Installation (continued) PACKAGE CONTENTS Faucet Assembly NOTE: *Items come pre-assembled. Part Description Quantity Part Description Quantity Faucet assembly Weight Pull-down spray Outlet hose Deck plate Green Cap Gasket Water supply line FastMount™ Pull-down spray hose Quick connector Blue Cap HOMEDEPOT.COM/GLACIERBAY Please contact 1-855-HD-GLACIER (1-855-434-5224) for further assistance.
  • Page 4: Installation

    Installation Installing the faucet assembly □ WITH DECK PLATE: Install the faucet body through CAUTION: Always turn off the water supply before the top of sink (not included). Place a bead of removing an existing faucet or replacing any part of a faucet.
  • Page 5 Installation (continued) Securing the faucet assembly Installing the weight □ □ From underneath the sink, secure the faucet Install the weight (G) through the pull-down spray assembly (A) to the sink with the FastMount™ hose (K). system (E). □ Insert the weight clip at the weight sticker on the □...
  • Page 6 Installation (continued) Attaching the quick connector Connecting supply lines CAUTION: Ensure the supply lines do not kink, twist or □ Remove the green cap (I) and the blue cap (L) bend into a “V” or “L” shape during installation. Do not use from the pull-down spray hose (K) and the outlet if there are visible signs of damage.
  • Page 7: Operation

    Operation Checking for leaks □ Detach the pull-down spray (B) from the pull-down spray hose (K). Hold the pull-down spray hose (K) firm to prevent it from retracting into the faucet body (A). □ Ensure the handle is in the off position.
  • Page 8: Care And Cleaning

    Operation (continued) Checking for low or reduced water pressure □ Close (shut off) the water supply to the faucet. □ Use wrenches to loosen and remove supply hose. □ Rinse the supply hose end with screen filter in a cup of water to flush loose sediment. □...
  • Page 9: Troubleshooting

    Troubleshooting NOTE: Refer to the service parts section in this manual for a detailed drawing showing the location of the parts listed below. Problem Possible Cause Solution □ □ There are leaks from The Adjusting Ring is Tighten the Adjusting Ring. the handle.
  • Page 10: Service Parts

    Service Parts Product ID tag can be found DO NOT REMOVE DATE CODE: 1-888-328-2383 on the hot supply line. Part Description Part No. Part Description Part No. Screw A008003 Pull-Down Spray Head A568064N Metal Handle A079330 Spray Hose A515220W Trim Cap A103121 Hose Adapter A663123N...
  • Page 11 Questions, problems, missing parts? Before returning to the store, call Glacier Bay Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-GLACIER HOMEDEPOT.COM/GLACIERBAY Retain this manual for future use. Document #: 202406-01...
  • Page 12 HOMEDEPOT.COM/GLACIERBAY GRACIAS Apreciamos la confianza que ha depositado en Glacier Bay por la compra de este grifo para cocina. Nos esforzamos por crear continuamente productos de calidad diseñados para mejorar su hogar. Visítenos en internet para ver nuestra ínea completa de productos disponibles para sus necesidades de mejorar su hogar. ¡Gracias por elegir a Glacier Bay!
  • Page 13: Planificación De La Instalación

    GARANTÍA DE POR VIDA LIMITADA Los productos de Glacier Bay están fabricados con normas y mano de obra de calidad superior y están respaldados por nuestra garantía de por vida limitada. Los productos de Glacier Bay están garantizados al comprador consumidor original de estar libres de defectos en materiales o mano de obra.
  • Page 14: Contenido Del Paquete

    Pre-instalación (continuación) CONTENIDO DEL PAQUETE Ensamblaje del Grifo NOTA: *Las piezas vienen preensambladas. Pieza Descripción Cantidad Pieza Descripción Cantidad Ensamblaje del grifo Peso de goma Cabezal de rociador Manguera de salida Placa de cubierta Capuchón verde Empaque Línea de suministro de agua FastMount™...
  • Page 15: Instalación

    Instalación Instalación del conjunto del grifo □ CON PLACA DE SOPORTE: Instale el cuerpo del PRECAUCIÓN: Cierre siempre el suministro de agua grifo a través de la parte superior del fregadero antes de retirar el grifo viejo o sustituir cualquier pieza de un grifo.
  • Page 16 Instalación (continuación) Cómo fijar el ensamblaje del Instalar la peso grifo □ □ Desde abajo del lavamanos, asegura el conjunto Instala la peso (G) a través de la manguera (K). del grifo (A) a aquel con la sistema FastMount™ □ Introduzca el sujetador de peso a la altura de la (E).
  • Page 17 Instalación (continuación) Instalación de la varilla Conexión de las líneas de elevación suministro de agua □ Retire el capuchón verde (I) y el capuchón azul (L) PRECAUCIÓN: Asegúrese que las líneas de suministro de la manguera del rociador retractable (K) y de no se retuerzan, torcer o doblar en una “V”...
  • Page 18: Operación

    Operación Comprobación de fugas □ Retire el grifo extraíble (B) de la manguera del grifo extraíble (K). Sostén firmemente la manguera del grifo extraíble (K) para evitar que se retraiga (A). □ Compruebe que la manija esté en posición cerrada. Abra la alimentación de agua fría y caliente y compruebe todas las conexiones si hay fugas.
  • Page 19: Cuidado Y Limpieza

    Operación (continuación) Comprobación de la presión de agua baja o reducida □ Cierre el suministro de agua del grifo. □ Utilice las llaves para aflojar y retirar la línea de suministro. □ Enjuague el extremo de la línea de suministro con el filtro de malla en un vaso de agua para eliminar los sedimentos sueltos.
  • Page 20: Solución De Problemas

    Solución de Problemas NOTA: Consulte la sección de piezas de repuesto de este manual para ver dibujos detallados sobre la ubicación de las piezas enumeradas abajo. Problema Posible causa Solución □ □ Hay fugas por La tuerca tapa esta floja. Apriete la tuerca tapa.
  • Page 21: Piezas De Repuesto

    Piezas de Repuesto Las etiquetas de identificación del grifo se encontrarán en la DO NOT REMOVE DATE CODE: 1-888-328-2383 tubería de alimentación de agua caliente. Pieza Descripción Pieza No. Pieza Descripción Pieza No. Deslizable de la cabeza de Tornillo A008003 A568064N rociado Manija metálicas...
  • Page 22 ¿Tiene preguntas, problemas, o faltan piezas? Antes de regresar a la tienda, llame a Servicio al Cliente de Glacier Bay de lunes a viernes de 8 a.m. a 7 p.m., hora local del Este de lunes a viernes de 9 a.m. a 6 p.m., sábado 1-855-HD-GLACIER HOMEDEPOT.COM/GLACIERBAY...
