INSTALLATION AND CARE GUIDE
Before returning to the store, call Glacier Bay Customer Service
We appreciate the trust and con dence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
HOMEDEPOT.COM
PULL-DOWN KITCHEN FAUCET
Questions, problems, missing parts?
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
Internet#
300693402
301999558
301999555
303672271
HOMEDEPOT.COM
THANK YOU
Model#
HD67551-0301
67551-0306
67551-0308D2
HD67551-0310H
10/2017 REV.01
SKU#
1002193719
1002501911
1002501914
1002846208

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD67551-0301 and is the answer not in the manual?

Questions and answers

Jacqualyn Degroy
March 13, 2025

How to remove faucet to get cartridge out

User image 67d32343a1401
1 comments:
Mr. Anderson
March 13, 2025

To remove the Glacier Bay faucet HD67551-0301 and access the cartridge, follow these steps:

1. Turn Off Water Supply – Shut off the hot and cold water valves under the sink.
2. Relieve Pressure – Open the faucet to release any remaining water.
3. Remove Handle – Use an Allen wrench to loosen the set screw on the handle, then pull it off.
4. Unscrew Bonnet Nut – Use a wrench to unscrew the bonnet nut securing the cartridge.
5. Remove Cartridge – Carefully pull out the cartridge from the faucet body.

Reassemble in reverse order after replacing or cleaning the cartridge.

This answer is automatically generated

Lynn Schaefer
June 22, 2025

Why would my faucet handle come on by itself? Also.... Why is my spray head coming on to the spray settling out of the blue? It always came on with full stream until recently. Thanks Model hd67551-1304

ROBERT C KRESS
March 1, 2025

Model 67551 drips on occasions

Summary of Contents for Glacier bay HD67551-0301

  • Page 1 HOMEDEPOT.COM THANK YOU We appreciate the trust and con dence you have placed in Glacier Bay through the purchase of this kitchen faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
  • Page 2: Table Of Contents

    Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
  • Page 3: Package Contents

    Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Faucet assembly FastMount™ Quick connector Escutcheon Gasket Weight Weight clip HOMEDEPOT.COM Please contact 1-855-HD-GLACIER for further assistance.
  • Page 4: Installation

    Installation Installing the faucet assembly Installing the faucet assembly CAUTION: Always shut off the water supply before NOTE: This step is for escutcheon installation (optional). removing an existing faucet or replacing any part of a If the escutcheon will not be used, install the faucet faucet.
  • Page 5 Installation (continued) Attaching the quick connector Securing the faucet assembly to the receiving block □ □ From underneath the sink, secure the faucet Push the quick connector (C) rmly upward and assembly to the sink with the FastMount™ attach it to the receiving block (1). Pull down system (B).
  • Page 6 Installation (continued) Making the water supply Installing the weight connections □ Install the weight clip (G) at the point of the NOTE: The hot side inlet tube is indicated by a label. Avoid hose marking “weight here”. twisting wires together or placing the wires close to each other and damaging.
  • Page 7: Operation

    Operation Flushing and checking for leaks IMPORTANT: After installation is completed, turn on the hot and cold water supplies. Check for leaks. Do not lose the gasket (1) in the hose. Clean the gasket (1) regularly. □ Pull the hose assembly out of the spout and remove the spray head by unscrewing it from the hose in a counterclockwise direction.
  • Page 8: Care And Cleaning

    Care and Cleaning □ To clean, wipe down with a damp cloth and dry with a towel. □ Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will be voided. Troubleshooting NOTE: Refer to the service parts section in this manual for a detailed drawing showing the location of the parts listed below.

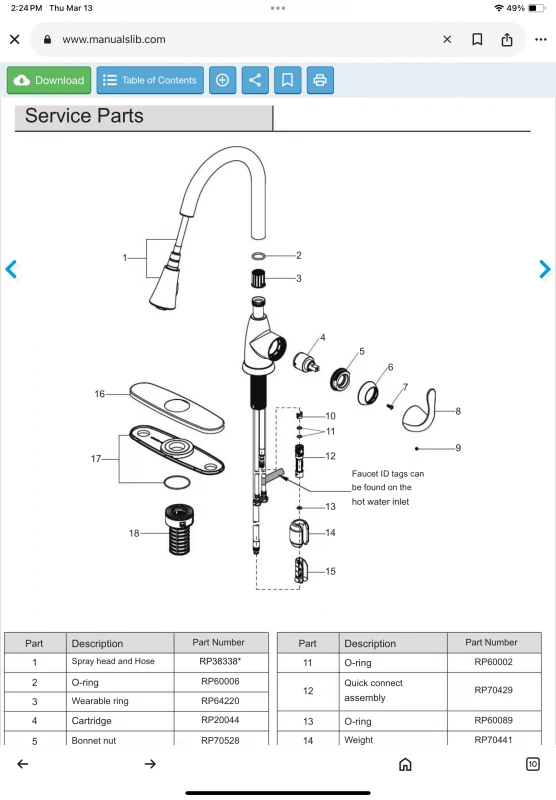

  • Page 9: Service Parts

    Service Parts Faucet ID tags can be found on the hot water inlet Part Description Part Number Part Description Part Number Spray head and Hose RP38338* O-ring RP60002 O-ring RP60006 Quick connect RP70429 assembly Wearable ring RP64220 Cartridge RP20044 O-ring RP60089 Weight RP70441...
  • Page 10 Questions, problems, missing parts? Before returning to the store, call Glacier Bay Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-GLACIER (1-855-434-5224) HOMEDEPOT.COM Retain this manual for future use.
  • Page 11 HOMEDEPOT.COM GRACIAS Agradecemos la con anza que has depositado en Glacier Bay al comprar este grifo para cocina. Nos esforzamos por crear continuamente productos de calidad diseñados para mejorar su hogar. Visítanos en Internet para ver nuestra línea completa de productos disponibles para las necesidades de mejoras de tu hogar. ¡Gracias por...
  • Page 12: Información Importante

    GARANTÍA DE POR VIDA LIMITADA Los productos de Glacier Bay están fabricados con normas y mano de obra de calidad superior y están respaldados por nuestra garantía de por vida limitada. Los productos de Glacier Bay están garantizados al comprador consumidor original de estar libres de defectos en materiales o mano de obra.
  • Page 13: Contenido Del Paquete

    Pre-instalación (continuación) CONTENIDO DEL PAQUETE Pieza Descripción Cantidad Ensamblaje del grifo FastMount™ Conector rápido Placa protectora Junta Peso Sujetador con peso HOMEDEPOT.COM Para obtener asistencia, llama al 1-855-HD-GLACIER.
  • Page 14: Instalación

    Instalación Cómo instalar el ensamblaje Cómo instalar el ensamblaje del grifo del grifo PRECAUCIÓN: Cierra siempre el suministro de agua NOTA: Este paso es para la instalación de la placa antes de retirar un grifo existente o reemplazar alguna protectora (opcional). Si no usarás la placa protectora, parte del mismo.
  • Page 15 Instalación (continuación) Cómo fijar el ensamblaje del Cómo montar el conector grifo rápido al bloque receptor □ □ Desde abajo del lavamanos, asegura el conjunto Presiona rmemente el conector rápido (C) del grifo a aquel con la sistema FastMount™ (B). hacia arriba y fíjalo en el bloque receptor (1).
  • Page 16 Instalación (continuación) Cómo hacer las conexiones Instalar la peso del suministro de agua □ Instala el sujetador de la peso (G) en la punta NOTA: El tubo de entrada del agua caliente se identi ca de la manguera marcada “weight here” con una etiqueta.
  • Page 17: Funcionamiento

    Funcionamiento Cómo purgar las tuberías y comprobar que no haya fugas IMPORTANTE: Luego de terminar la instalación, abre los suministros de agua caliente y fría. Revisa si hay ltraciones. No a ojes la junta (1) en la manguera. Limpia la junta (1) de manera regular.
  • Page 18: Cuidado Y Limpieza

    Cuidado y limpieza □ Para limpiar, usa un paño húmedo y seca con una toalla. □ No uses limpiadores abrasivos, esponjas de alambre o productos químicos fuertes para limpiar esta mezcladora, pues ello anulará la garantía. Solución de problemas NOTA: Consulta la sección de piezas de repuesto de este manual para ver un dibujo detallado que muestra la ubicación de las piezas enumeradas a continuación.
  • Page 19: Piezas De Repuesto

    Piezas de repuesto Las etiquetas de identi cación de la mezcladora pueden encontrarse en la entrada de agua caliente. Pieza Descripción Número de pieza Pieza Descripción Número de pieza Bloque RP70421 Cabezal rociador RP38338* y manguera Aro tórico RP60002 Aro tórico RP60006 Ensamblaje del RP70429...
  • Page 20 ¿Problemas, preguntas o piezas faltantes? Antes de regresar a la tienda, llama al servicio al cliente de Glacier Bay de lunes a viernes entre 8 a.m. y 7 p.m. y los sábados entre 9 a.m. y 6 p.m.(hora estándar del Este) 1-855-HD-GLACIER (1-855-434-5224) HOMEDEPOT.COM...
  • Page 21 HOMEDEPOT.COM MERCI Nous vous remercions d'avoir fait con ance à Glacier Bay en achetant ce robinet de cuisine. Nous efforçons en permanence de créer des produits de qualité conçus pour perfectionner votre maison. Vous pouvez visiter notre site en ligne pour consulter notre gamme complète de produits pour vos besoins de rénovation résidentielle.
  • Page 22: Information Importante

    GARANTIE À VIE LIMITÉE Les produits Glacier Bay sont fabriqués dans le respect de normes de qualité supérieure et sont protégés par notre garantie à vie limitée. Les produits Glacier Bay sont garantis contre les défauts de fabrication et de matériaux, pourvu que l’acheteur original soit le propriétaire.
  • Page 23: Contenu De L'emballage

    Pré-installation (suite) CONTENU DE L'EMBALLAGE Pièce Description Quantité Robinet FastMount™ Raccord à branchement rapide Rosace Joint d'étanchéité Poids Pince lestée HOMEDEPOT.COM Veuillez composer le 1-855-HD-GLACIER pour une assistance supplémentaire.
  • Page 24: Installation

    Installation Installation de l'ensemble de Installation de l'ensemble de robinetterie robinetterie ATTENTION : Fermez toujours l’alimentation en eau CAUTION: Always turn off the water supply before REMARQUE : Cette étape est pour l'installation de la avant de retirer un robinet existant ou d’en remplacer une removing an existing faucet or replacing any part of a rosace (facultatif).
  • Page 25 Installation (suite) Attacher le raccord à Fixer solidement l'ensemble branchement rapide au bloc de robinetterie récepteur □ À partir du dessous du lavabo, xez solidement □ Poussez fermement le raccord à branchement le robinet au lavabo à l’aide de système rapide (C) vers le haut et attachez-le au bloc FastMount™...
  • Page 26 Installation (suite) Raccordement des conduites Installation du poids de lest d’alimentation en eau □ Installez la pince lestée (G) au point du tuyau REMARQUE : Le tube d’arrivée d’eau chaude est indiqué exible avec la marque «weight here (poids ici)». par une étiquette.
  • Page 27: Utilisation

    Utilisation Purge et recherche de fuites IMPORTANT : Une fois l'installation terminée, ouvrez l’alimentation en eau chaude et en eau froide. Véri ez s’il y a des fuites. Ne perdez pas le joint d’étanchéité (1) dans le tuyau exible. Nettoyez the joint d’étanchéité (1) régulièrement.
  • Page 28: Entretien Et Nettoyage

    Entretien et nettoyage □ Pour nettoyer, essuyez avec un linge humide et séchez avec une serviette. □ N'utilisez pas de nettoyants abrasifs, de la laine d’acier ou de produits chimiques abrasifs pour nettoyer ce robinet, sinon la garantie sera annulée. Dépannage REMARQUE : Consultez la section pièces de rechange de ce guide pour une illustration détaillée de l’emplacement...
  • Page 29: Pièces De Rechange

    Pièces de rechange Les étiquettes d’identité du robinet se trouvent sur l’arrivée d’eau chaude Pièce Description Numéro de pièce Pièce Description Numéro de pièce Bloc RP70421 Tête et tuyau de RP38338* pulvérisation Joint torique RP60002 Joint torique RP60006 Raccord à RP70429 branchement rapide Bague d'étanchéité...
  • Page 30 Questions, problèmes, pièces manquantes? Avant de retourner au magasin, appelez le service à la clientèle Glacier Bay entre 8 h et 19 h, HNE, du lundi au vendredi au entre 9 h et 18 h, HNE, le samedi au 1-855-HD-GLACIER (1-855-434-5224) HOMEDEPOT.COM...
