Summary of Contents for Roll RO-250

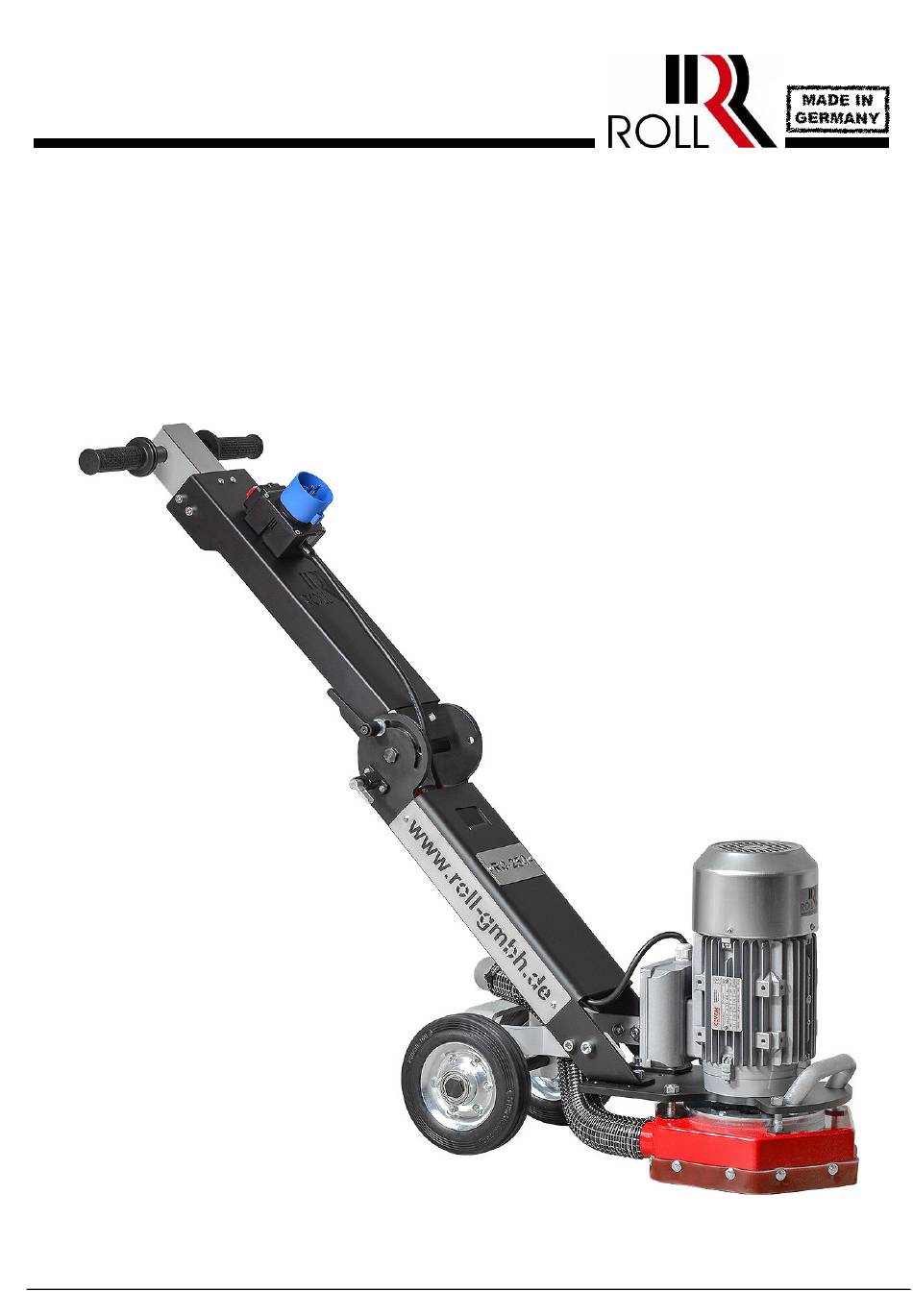

- Page 1 User manual Grinding machine RO-250 User manual Grinding machine RO-250...
-
Page 2: Table Of Contents
User manual Grinding machine RO-250 Index Preliminary remark General notes for the operator Guarantee and liability Safety Genaral information Danger of the machine Safety instructions in operation Intended Use Basic Safety Instructions User requirements Review according to DGUV 3 Safety instructions Dust... -
Page 3: Preliminary Remark
User manual Grinding machine RO-250 Preliminary notes Dear customer, you have chosen the RO-300 grinding machine, the right choice for quality and performance. These operating instructions contain important information for the operation of your machine. Caution! Read this user manual carefully before assembling or operating the machine. Ensure that all operators read these instructions before they use the machine. -
Page 4: General Notes For The Operator
User manual Grinding machine RO-250 The operation manual identify important notes on safety and damage prevention using the following symbols: Please give special attention to the marked instructions. They refer to a potentially dangerous situation. Failure to comply can result in fatal or severe injuries and damage to property. -
Page 5: Guarantee And Liability
Grinding machine RO-250 Guarantee and liability ROLL ensures a guarantee and liability are in accordance with our currently valid general business and sales conditions. The guarantee runs out after 12 months from purchase date. We reject any guarantee claims for tools which are not in their original condition, or for altered or changed tools or which are not used in accordance to the intended use. -
Page 6: Safety
• Hold both hands by the handles. Intended Use The RO-250 has been designed to remove adhesive residue, coatings, putty and similar residue from concrete floors and to sand concrete floors. Under no circumstances may the machine be used to machine other surfaces. -
Page 7: Basic Safety Instructions
Grinding machine RO-250 Basic Safety Instructions The grinding machine RO-250 has been designed and manufactured according to recognized rules of technology and in compliance with the occupational safety and accident prevention regulations and the EC guideline for safety of machines for the intended use. -
Page 8: Safety Instructions Dust
Caution, risk of cutting due to sharp edges when attaching diamond and PCD discs! Carefully attach. Wear gloves when attaching or changing. General for the user Scope of delivery 1. Grindign machine RO-250 (mounted) 2. Suction hose (without picture) 3. Extension cable (without picture) 4. Fixing screws 5. Tool kit (without picture) -
Page 9: Important Components Of The Machine
User manual Grinding machine RO-250 Important components of the machine Guide handle On- Off switch with connector Handle Locking lever Clamping handle Electric motor Vacuum hood with hose connector ... -
Page 10: Technical Data
55kg Working width: 250mm Assembly The grinding machine RO-250 is delivered fully assembled. The mounting of the discs takes place only at the place of use. Transport Often it is essential that the machine must be transported or carried to your application. Due to the low weight and the handy dimensions no handling instructions are required. -
Page 11: Operation
User manual Grinding machine RO-250 Operation Assembly of the disc Procedure: 1. Turn off the machine and unplug the power cord from the wall outlet. 2. Lay the machine on the floor with the handle folded 3. Mount the sanding pad with the 3 countersunk screws provided with lock washers. -
Page 12: Starting Machine
User manual Grinding machine RO-250 Starting the machine Caution, risk of injury! When switched on, the engine starts immediately. Hold the machine with both hands to switch on. Procedure: 1. Make sure that the required grinding disc is mounted. 2. Connect your industrial vacuum cleaner to the grinding machine. -
Page 13: Ec Declaration Of Conformity
Manufacturer: Name: Roll GmbH Street: Albstr. 12 City: 72820 Sonnenbühl Country: Deutschland Authorized person, for the compilation of Name: Stephan Roll, Geschäftsführer, Roll GmbH technical documentation: Street: Albstr. 12 City: 72820 Sonnenbühl Country: Deutschland Product: Product description: Floor grinding machine...
